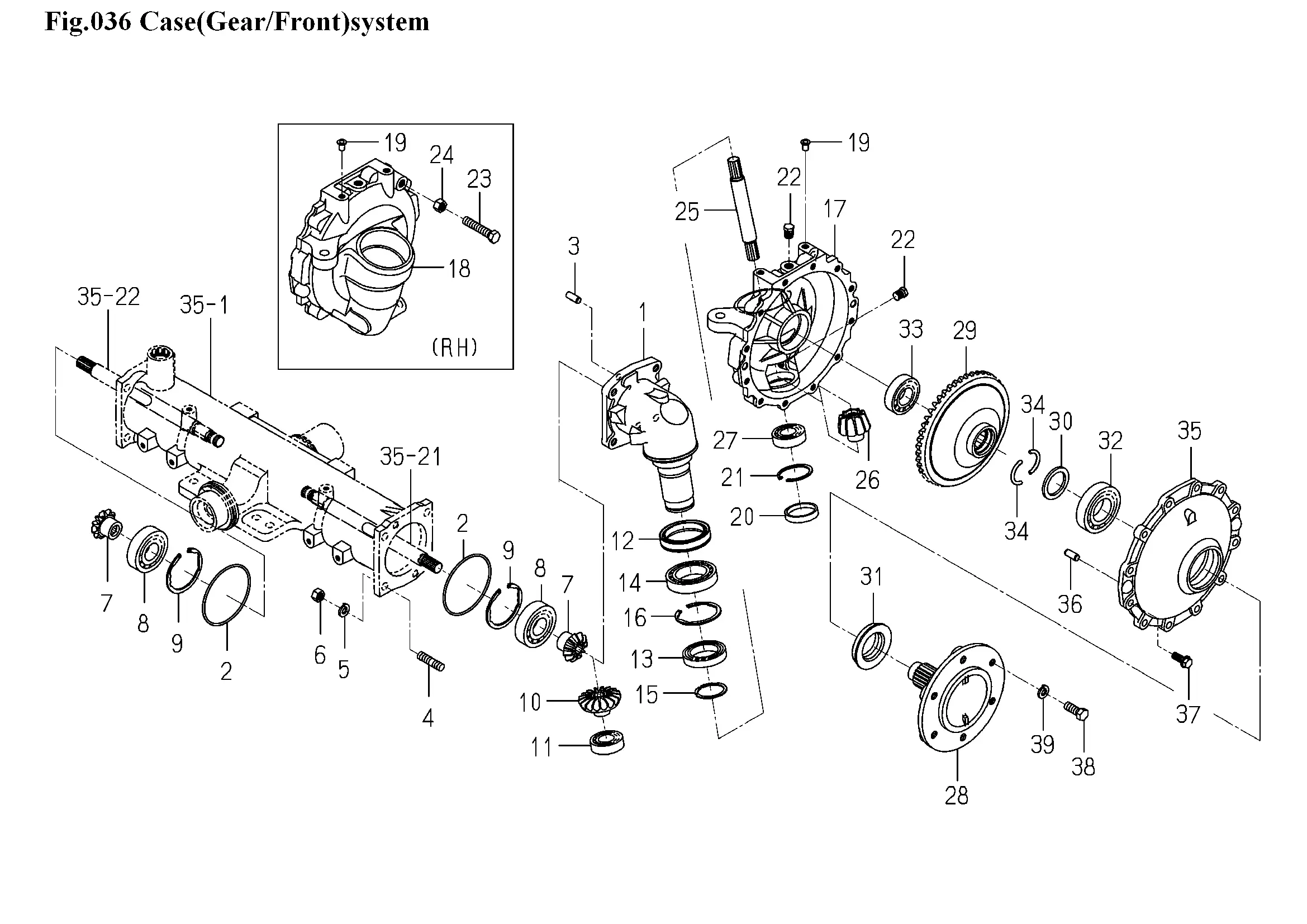

Achsschenkel, vorne
Ersatzteile (39 Teile)
1
CASE/FINAL
2
O-RING/1A,G100
3
PIN,ST,B/10X24
4
V251-441-203-00
5
V402-160-012-00
6
V304-460-012-00
7
Zahnrad, 11Z
8
BEARING/BALL/6306
9
RING,SNAP/R72
10
Zahnrad, 17Z
11
BEARING/BALL
12
1709-434-001-00
13
BEARING/BALL/6909
14
BEARING/BALL/6010C
15
V706-140-045-00
16
V707-140-068-00
17
CASE/FINAL/LH
18
CASE/FINAL/RH
19
1824-434-001-00
20
SEAL/52
21
RING,SNAP/52 C
22
PLUG/SCREW/SEAL
23
W201-361-206-00
24
V304-460-012-00
25
Welle
26
GEAR/BEVEL/10
27
BEARING/BALL
28
1560-434-007-61
29
GEAR/BEVEL/48
30
COLLAR/41X55X4
31
1560-434-012-30
32
BEARING/BALL/6208C
33
BEARING/BALL/6206
34
1560-434-017-00
35
1650-434-013-11
36
PIN,ST,B/10X24
37
V231-361-002-50
38
1746-434-001-00
39
1746-434-002-00
