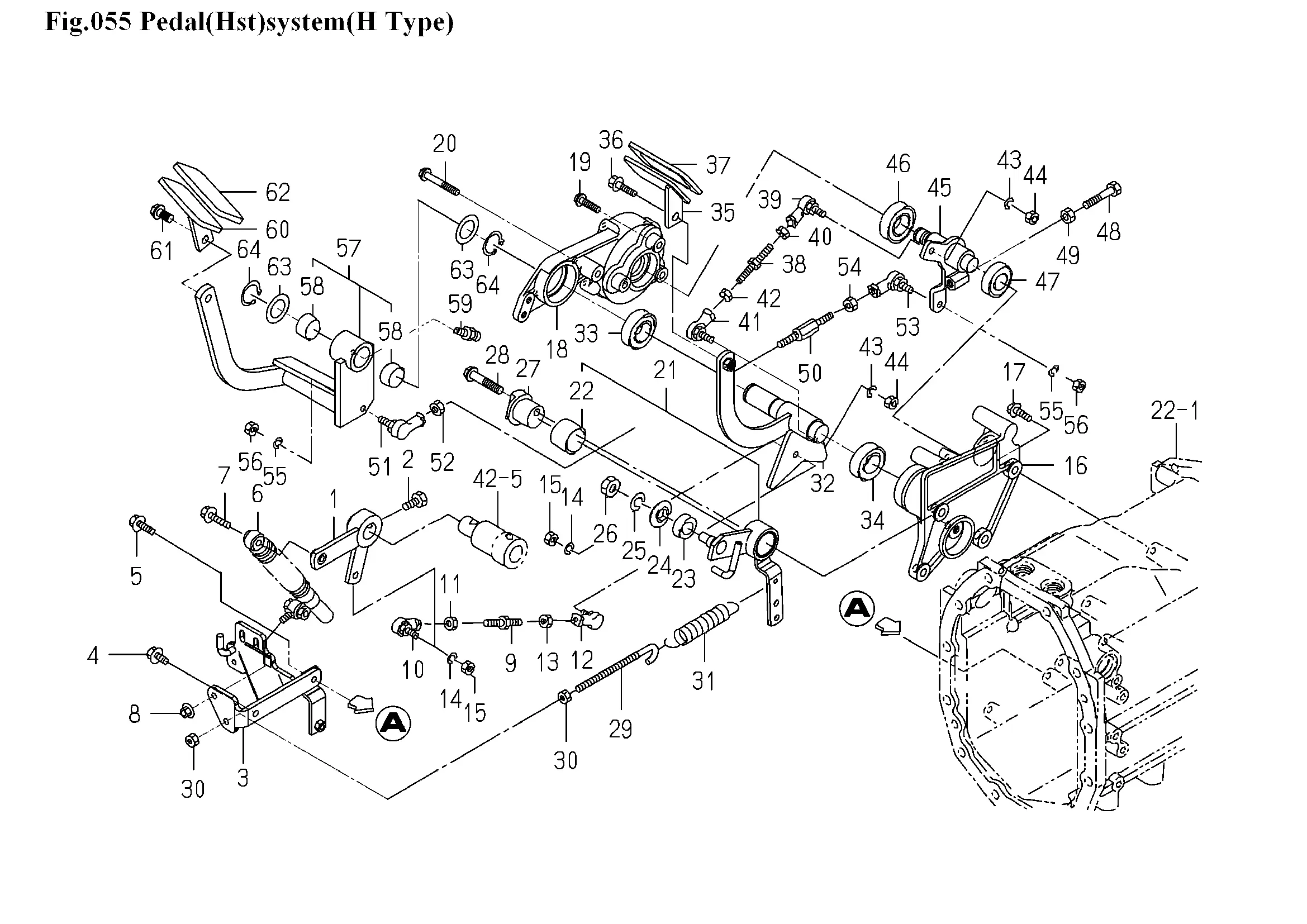

Pedal, HST
Ersatzteile (64 Teile)
1
ARM/TRUNNION COMP
2
BOLT/SM/M10X23
3
1772-271-310-00
4
FLANGEBOLT/M8X16
5
V231-360-802-00
6
DAMPER/OIL ASSY
7
V231-360-803-00
8
Kombimutter-M8
9
ROD/M08X64
10
1560-695-021-00
11
NUT/M8/7T
12
1560-695-022-00
13
NUT/LH/M08
14
WASHER,SP/M8
15
NUT/M8
16
1772-271-001-10
17
V231-361-002-50
18
1743-640-053-10
19
V231-360-803-00
20
FLANGEBOLT/M8X55
21
1772-271-320-00
22
1646-640-221-10
23
BEARING,RB/6002SS
24
WASHER/38X12X2
25
WASHER,SP/M12
26
NUT/M12
27
PIN/ADJUST
28
V231-361-005-00
29
1743-640-055-10
30
NUT/M8
31
SPRING/HE122
32
ARM/HST/F COMP
33
BEARING/BALL
34
V600-150-600-50
35
PEDAL/HST/F COMP
36
V231-361-002-50
37
PAD/HST
38
ROD/M08X64
39
1560-695-021-00
40
NUT/M8/7T
41
1560-695-022-00
42
NUT/LH/M08
43
WASHER,SP/M8
44
NUT/M8
45
1772-271-240-00
46
V600-150-600-50
47
BEARING/BALL
48
V201-261-004-50
49
NUT/M10
50
ROD/M08X92
51
1560-695-021-00
52
NUT/M8/7T
53
1560-695-022-00
54
NUT/LH/M08
55
WASHER,SP/M8
56
NUT/M8
57
1772-271-220-10
58
BUSH/25X28X15
59
NIPPLE,GREASE
60
1773-271-370-00
61
V231-361-002-00
62
PAD/HST
63
1773-271-007-00
64
RING,SNAP/25 C
