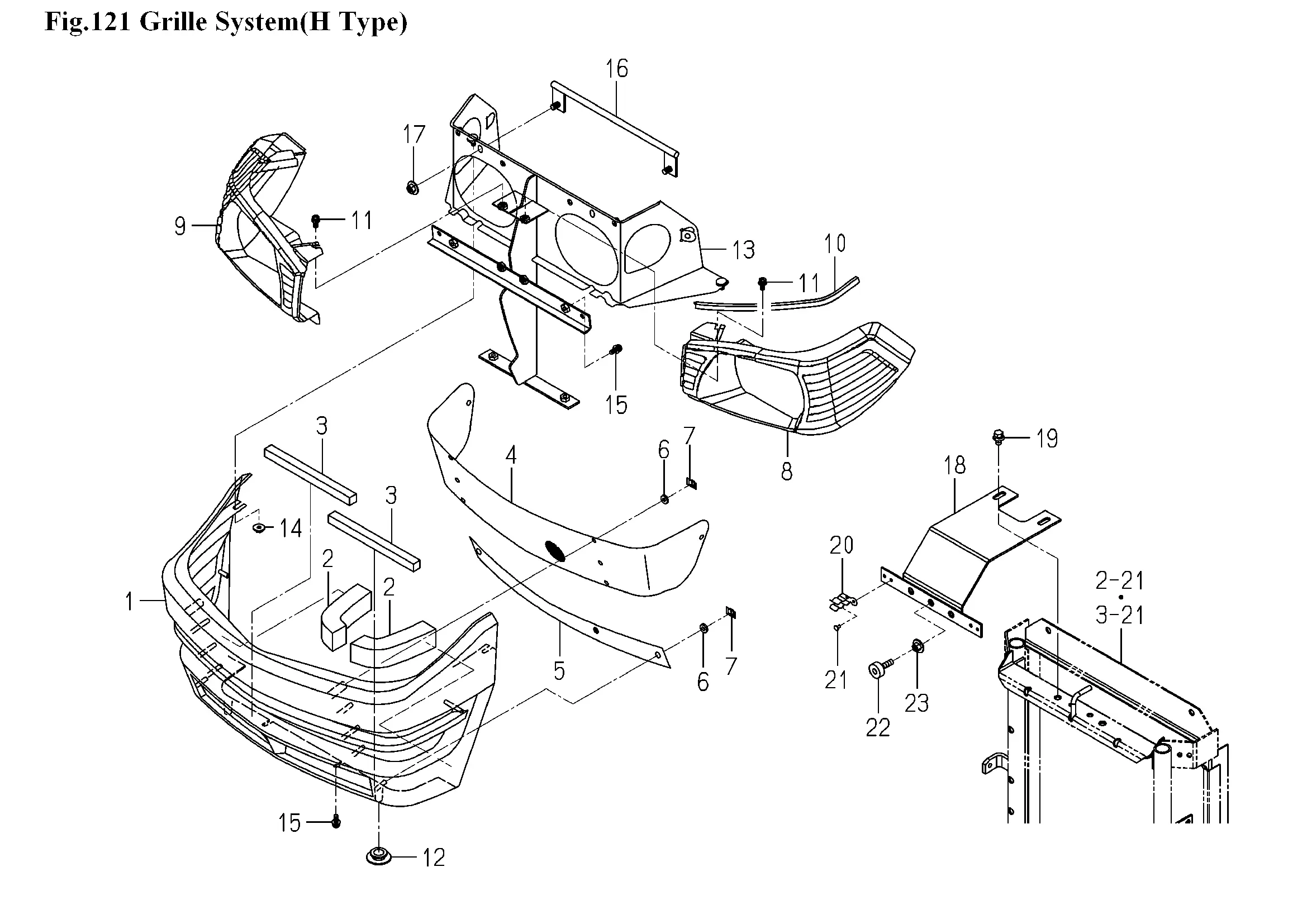

Kühlergrill
Ersatzteile (23 Teile)
1
GRILLE/EEC
2
INSULATOR/30X35X150
3
INSULATOR/15X15X190
4
NET/GRILLE
5
NET/GRILLE/UNDER
6
WASHER/6X14X3
7
NUT,SPEED/M6
8
1746-602-001-10
9
COVER/LAMP/RH
10
INSULATOR/6X9X650
11
SCREW,SP/M6X16
12
BUSH,LEVER
13
HOLDER/GRILLE/E COMP
14
NUT,WASHER/M6
15
SCREW,SP/M6X16
16
BAR COMP
17
V363-260-008-00
18
BRACKET COMP
19
BOLT,SP/M8X16
20
SPRING
21
RIVET,BLIND/4X7
22
1421-602-005-10
23
V363-260-008-00
