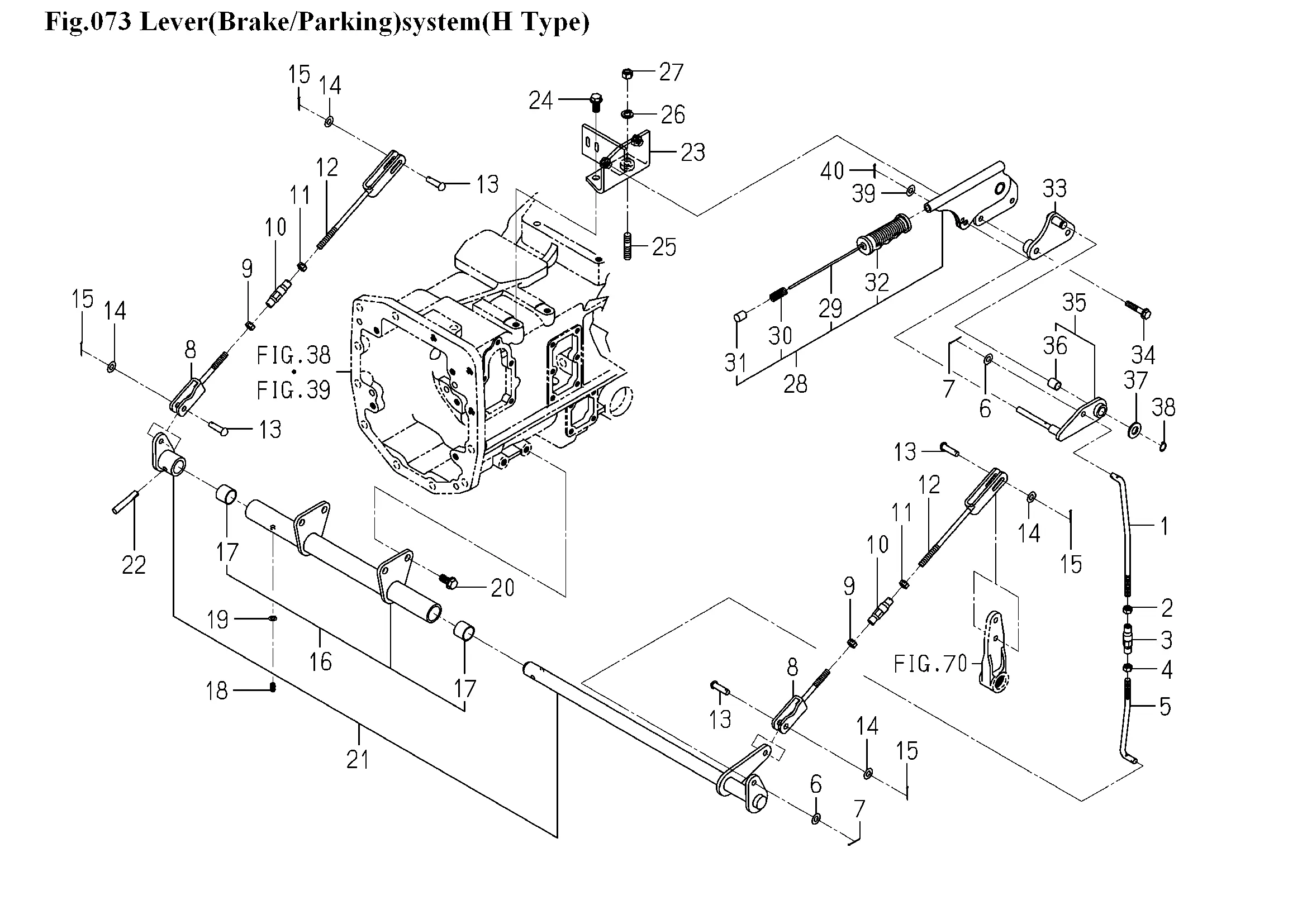

Feststellbremse
Ersatzteile (40 Teile)
1
1772-313-051-00
2
NUT/LH/M08
3
TURNBUCKLE/M8
4
NUT/M8
5
1772-313-052-00
6
WASHER,PL/M8
7
PIN,SPLIT/2.5X20
8
1524-312-200-20
9
NUT/M8
10
TURNBUCKLE/M8
11
NUT/LH/M08
12
1772-313-290-20
13
PIN,YOKE A
14
WASHER,PL/M8
15
PIN,SPLIT/2X20
16
BRACKET/PARKING ASSY
17
BUSH/22X25X20
18
NIPPLE,GREASE
19
V401-160-006-00
20
V231-361-002-00
21
1772-313-350-00
22
PIN,TAPER/8X50
23
1772-313-250-10
24
V231-361-002-00
25
STUD/M10X30/7T
26
WASHER,SP/M10
27
NUT/M10
28
1740-313-300-10
29
ROD
30
SPRING
31
BUTTON
32
GRIP/ORANGE
33
1772-313-310-10
34
FLANGEBOLT/M8X40
35
ARM/PARKING ASSY
36
BUSH/12X14X15
37
V411-260-012-00
38
RING,SNAP/12 C
39
WASHER,PL/M8
40
PIN,SPLIT/2.5X20
