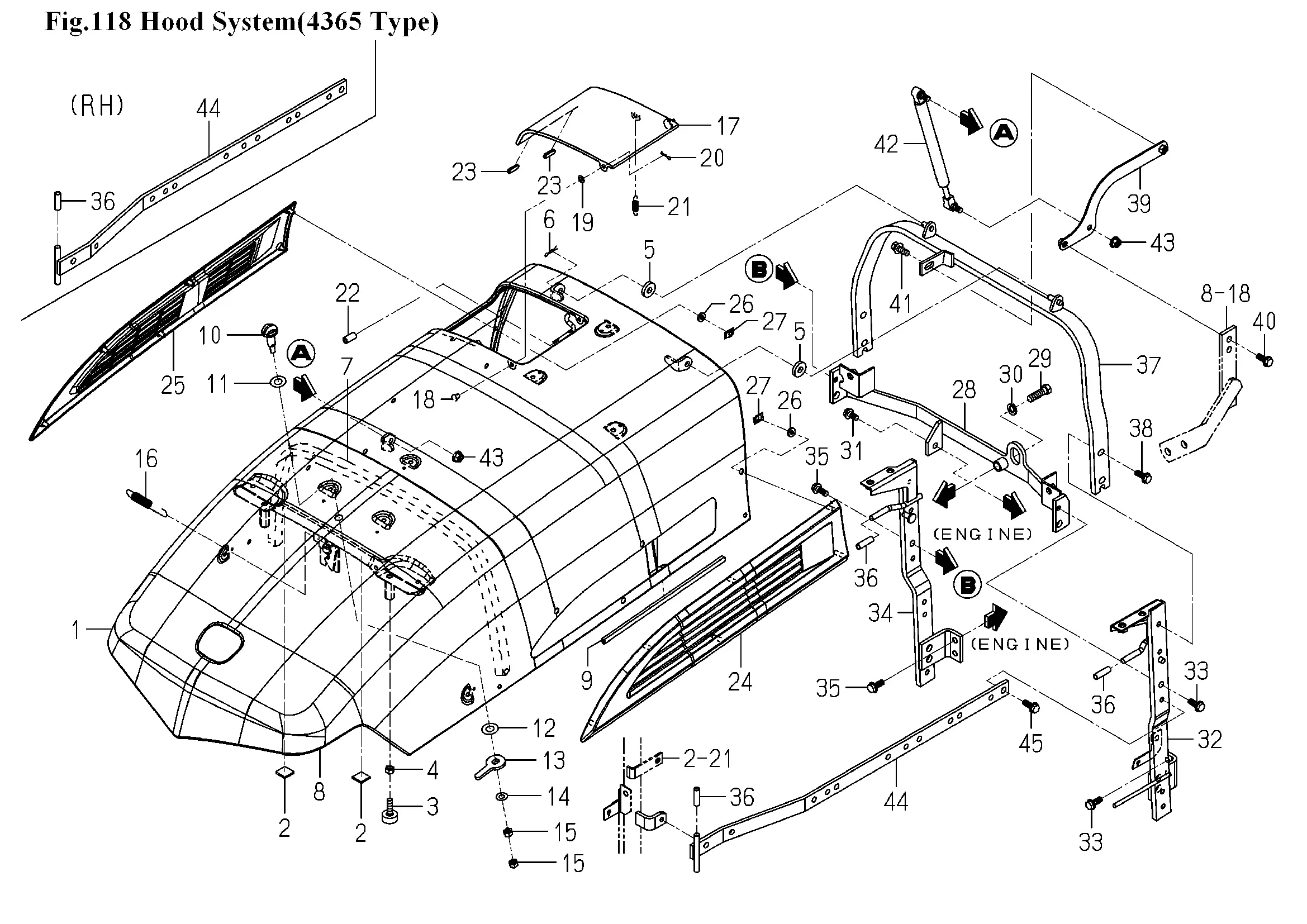

Motorhaube
Ersatzteile (45 Teile)
1
1772-601-200-10
2
INSULATOR
3
1421-602-005-10
4
NUT/M8/7T
5
CUSHION/RUBBER/10X25
6
PIN/SNAP
7
1729-601-004-20
8
1627-602-005-00
9
TRIM/270
10
PIN/HOOD
11
WASHER/12X25X02
12
3610-440-018-00
13
ARM/PLATE
14
WASHER,PL/M8
15
NUT/M8
16
SPRING/HE089
17
COVER COMP
18
PIN/06X07
19
V411-260-006-00
20
PIN/SNAP
21
SPRING/HE036
22
TUBE/06X10X20
23
TRIM/20
24
1729-601-002-20
25
1729-601-003-20
26
WASHER/6X14X3
27
NUT,SPEED/M6
28
1729-601-300-10
29
V203-361-003-50
30
WASHER,SP/M10
31
FLANGEBOLT/M8X16
32
1733-601-200-10
33
V231-360-802-00
34
1733-601-210-00
35
V231-360-802-00
36
TUBE/07X09X30
37
1729-601-240-10
38
BOLT,SP/M8X20
39
1729-601-250-20
40
V231-360-802-00
41
BOLT,SP/M8X25
42
DUMPER/HOOD ASSY
43
Kombimutter-M8
44
1729-601-260-30
45
V231-360-802-00
