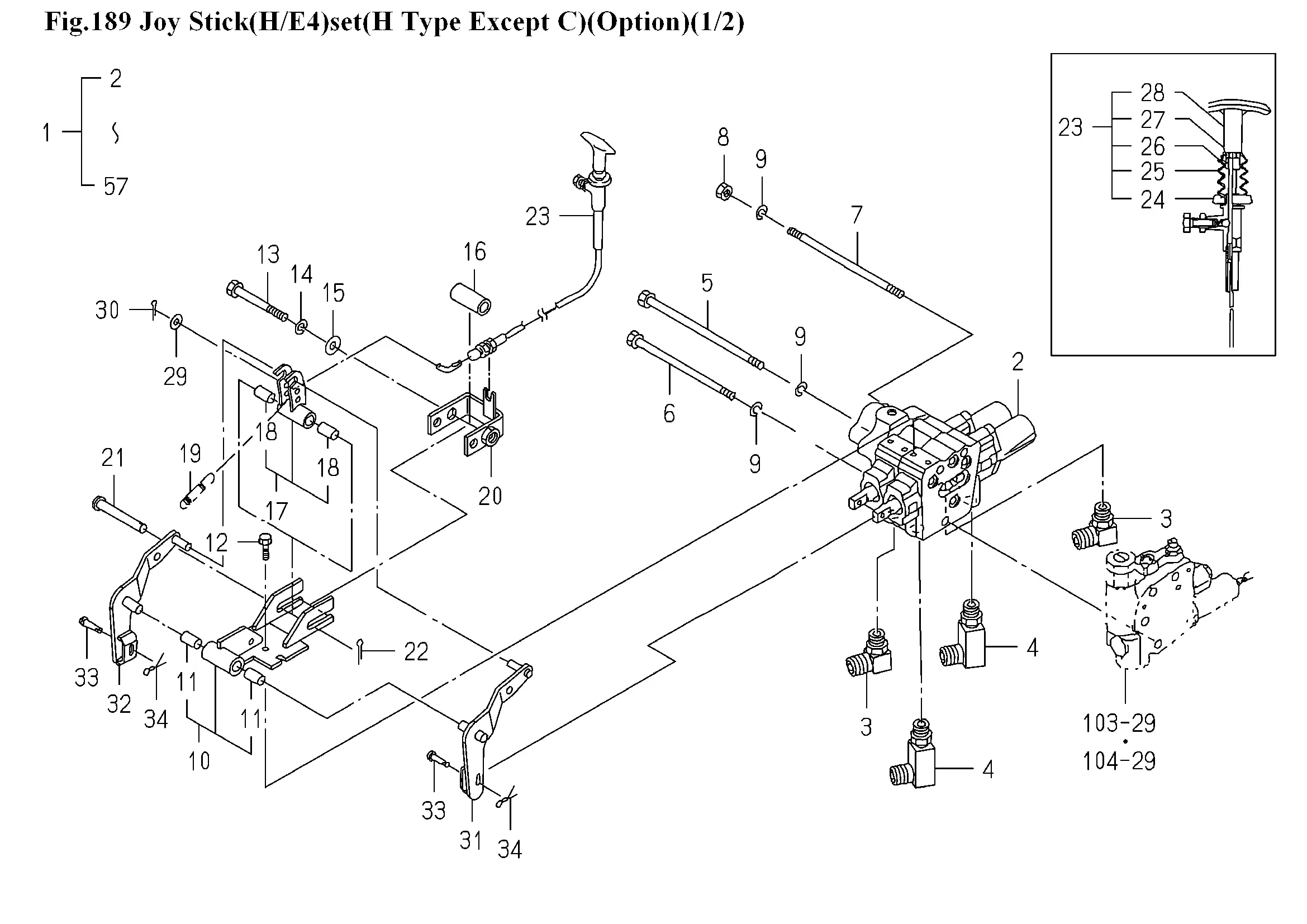

Hydrauliksteuergerät, Joystick
Ersatzteile (57 Teile)
1
1772-511-540-10
2
VALVE/CONTROL/086
3
CONNECTOR
4
CONNECTOR/L
5
V201-261-017-00
6
V201-261-015-00
7
1742-511-002-00
8
NUT/M10
9
WASHER,SP/M10
10
1742-511-710-00
11
BUSH/10X12X20
12
FLANGEBOLT/M6X12
13
BOLT/M10X75/7T
14
WASHER,SP/M10
15
V411-260-010-00
16
1742-511-071-00
17
1742-511-770-10
18
BUSH/10X12X20
19
SPRING/HE055
20
1742-511-760-00
21
PIN/10X070
22
PIN,SPLIT/2X20
23
CABLE/LOCK ASSY
24
1742-511-791-00
25
1742-511-792-00
26
1742-511-793-00
27
1742-511-794-00
28
KNOB
29
V411-260-005-00
30
PIN,SPLIT/1.6X15
31
ARM/BOOM COMP
32
ARM/BUCKET COMP
33
PIN/06X23
34
PIN/SNAP
35
JOINT ASSY
36
BASE/LEVER COMP
37
LEVER/JOYSTICK COMP
38
BOLT/M8X16
39
GRIP
40
1773-511-350-00
41
NUT/LH/M08
42
NUT/M8
43
1560-695-021-00
44
1560-695-022-00
45
NUT/M8
46
WASHER,SP/M8
47
BOOT
48
1772-511-510-10
49
FLANGEBOLT/M8X16
50
1773-511-500-10
51
1744-512-260-10
52
1342-402-006-00
53
ADAPTER/45/R3/8XG3/
54
PLUG/SCREW/SEAL
55
1772-511-002-00
56
1817-512-002-10
57
LABEL/PORT/2ND/E4/+
