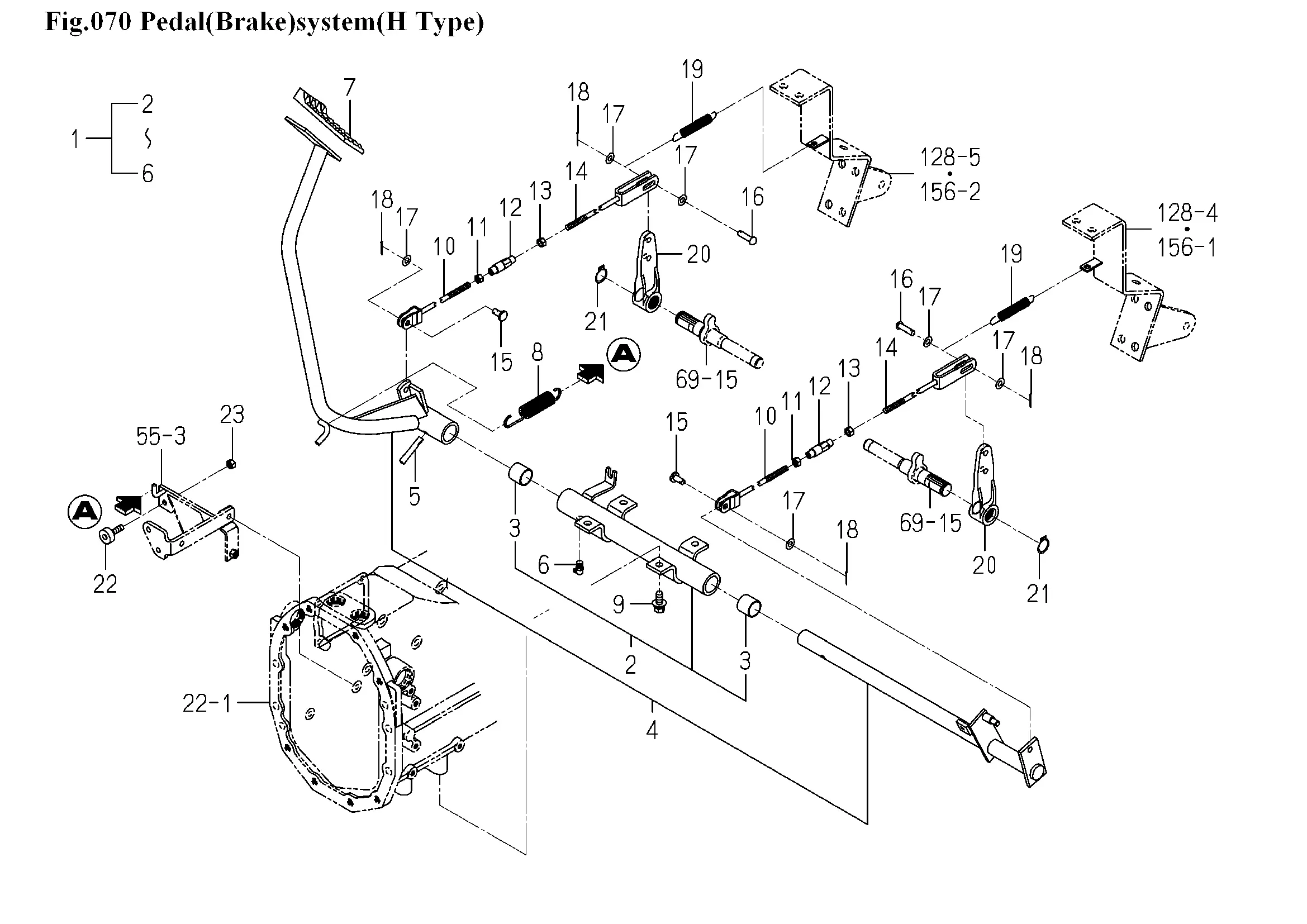

Pedal, Bremse
Ersatzteile (23 Teile)
1
1772-312-500-50
2
1773-312-670-20
3
BUSH/25X28X25
4
1772-312-510-40
5
PIN,TAPER/8X50
6
NIPPLE,GREASE/PT1/8
7
1524-122-001-10
8
SPRING/HE120
9
BOLT,SP/M10X25/7T
10
1564-132-210-30
11
NUT/LH/M08
12
TURNBUCKLE/M8
13
NUT/M8
14
ROD/FORK COMP
15
PIN
16
PIN,YOKE A
17
WASHER,PL/M8
18
PIN,SPLIT/2X20
19
SPRING/HE095
20
1772-312-001-10
21
RING,SNAP/22 C
22
1421-602-005-10
23
NUT/M8
