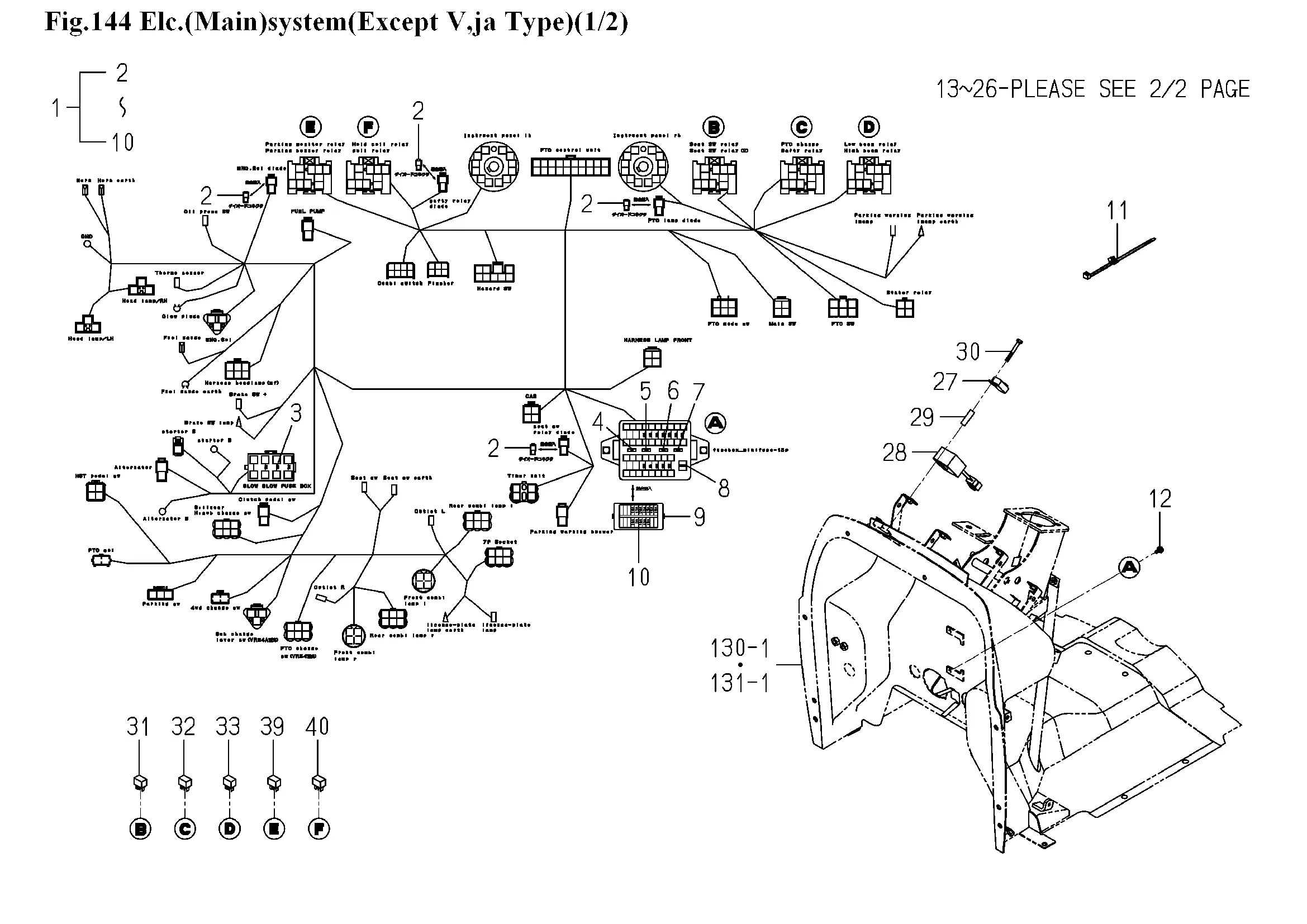

Kabelbäume, Relais
Ersatzteile (40 Teile)
1
HARNESS/MAIN/E4/3
2
DIODE/3A
3
FUSE/SLOW BLOW/40A
4
FUSE/BLADE/32V05A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V15A
7
FUSE/BLADE/32V20A
8
TOOL/FUSE
9
COVER/FUSE
10
1772-652-402-00
11
1560-666-004-00
12
FLANGEBOLT/M6X12
13
1772-652-260-00
14
FLANGEBOLT/M6X12
15
1716-680-200-20
16
KEY
17
NUT/RING
18
COVER/SWITCH
19
LAMP/LED ASSY
20
SWITCH/HAZARD ASSY
21
BULB/LAMP/14V60MA
22
1774-680-260-00
23
1772-652-001-00
24
1772-652-230-00
25
FLANGEBOLT/M6X16
26
PAD/50
27
RELAY/4P ASSY
28
UNIT/TIMER ASSY
29
4131-112-001-00
30
BOLT,SP/M6X50
31
RELAY/5P ASSY
32
RELAY/5P ASSY
33
RELAY/5P ASSY
34
BUZZER
35
FLANGEBOLT/M6X12
36
1560-666-004-00
37
1739-681-220-20
38
FLANGEBOLT/M6X12
39
RELAY/5P ASSY
40
RELAY/5P ASSY
