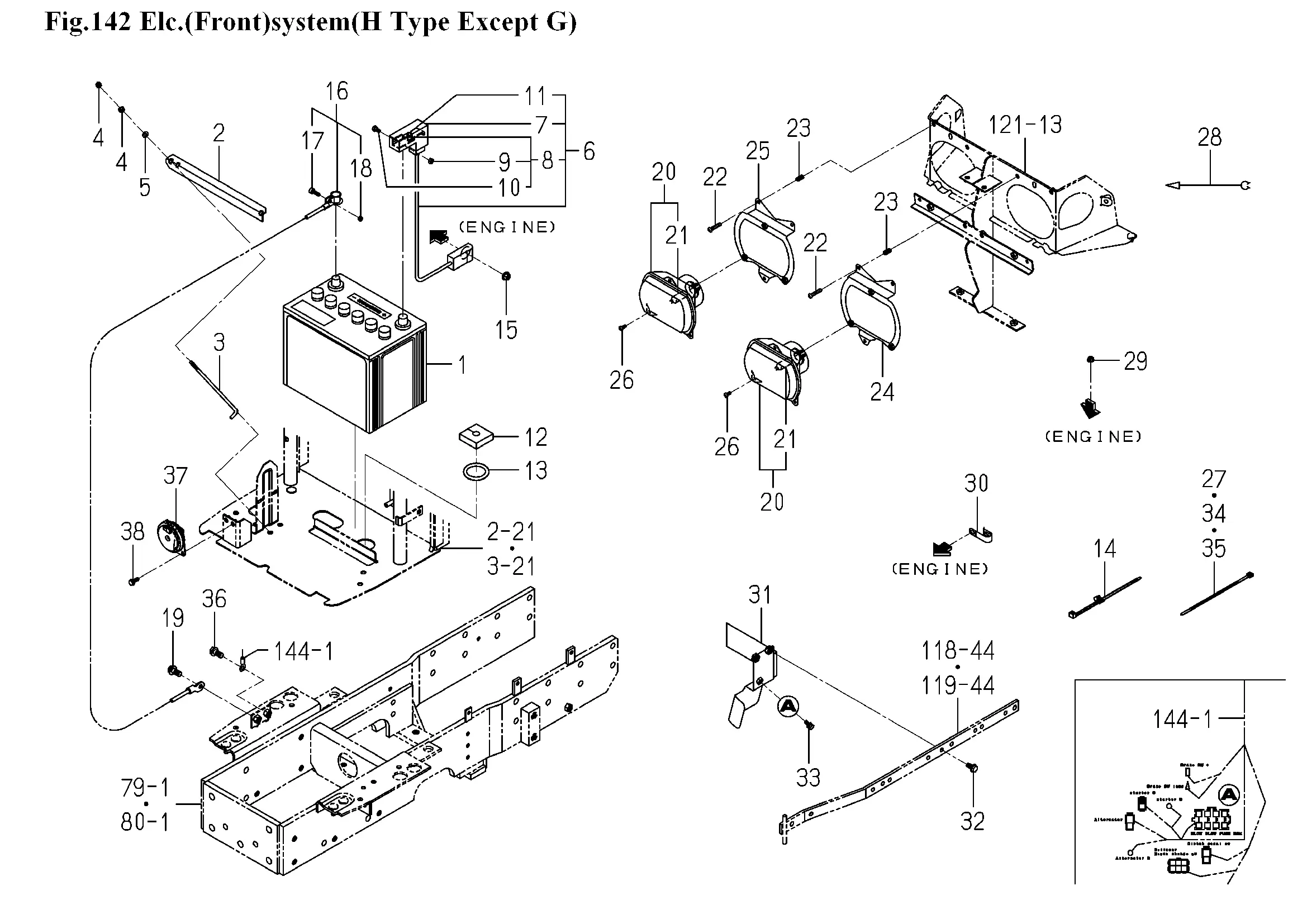

Batterie, Scheinwerfer
Ersatzteile (38 Teile)
1
BATTERY/80D26R ASSY
2
1716-112-001-10
3
BOLT/BATTERY
4
V301-260-006-00
5
V411-260-006-00
6
CABLE/BATTERY ASSY
7
1696-650-242-00
8
1725-690-240-00
9
1560-666-006-00
10
1560-666-005-00
11
1650-650-295-00
12
INSULATOR/50X50X15
13
2504-165-002-10
14
1560-666-004-00
15
Kombimutter-M8
16
CABLE/EARTH ASSY
17
1725-112-212-00
18
1725-112-213-00
19
V231-361-002-00
20
LAMP/HEAD/H4 ASSY
21
1774-650-212-00
22
SCREW/M6X30
23
SPRING/HC016
24
1746-650-210-10
25
1746-650-220-10
26
V111-165-001-20
27
BAND,WIRE/140
28
1600-624-004-10
29
NUT/WASHER/M6
30
HOLDER/JE/9-9
31
1772-650-210-00
32
FLANGEBOLT/M8X16
33
BOLT,SP/M6X16
34
1342-402-006-00
35
BAND,WIRE/140
36
V231-361-002-00
37
1740-680-530-20
38
FLANGEBOLT/M6X16
