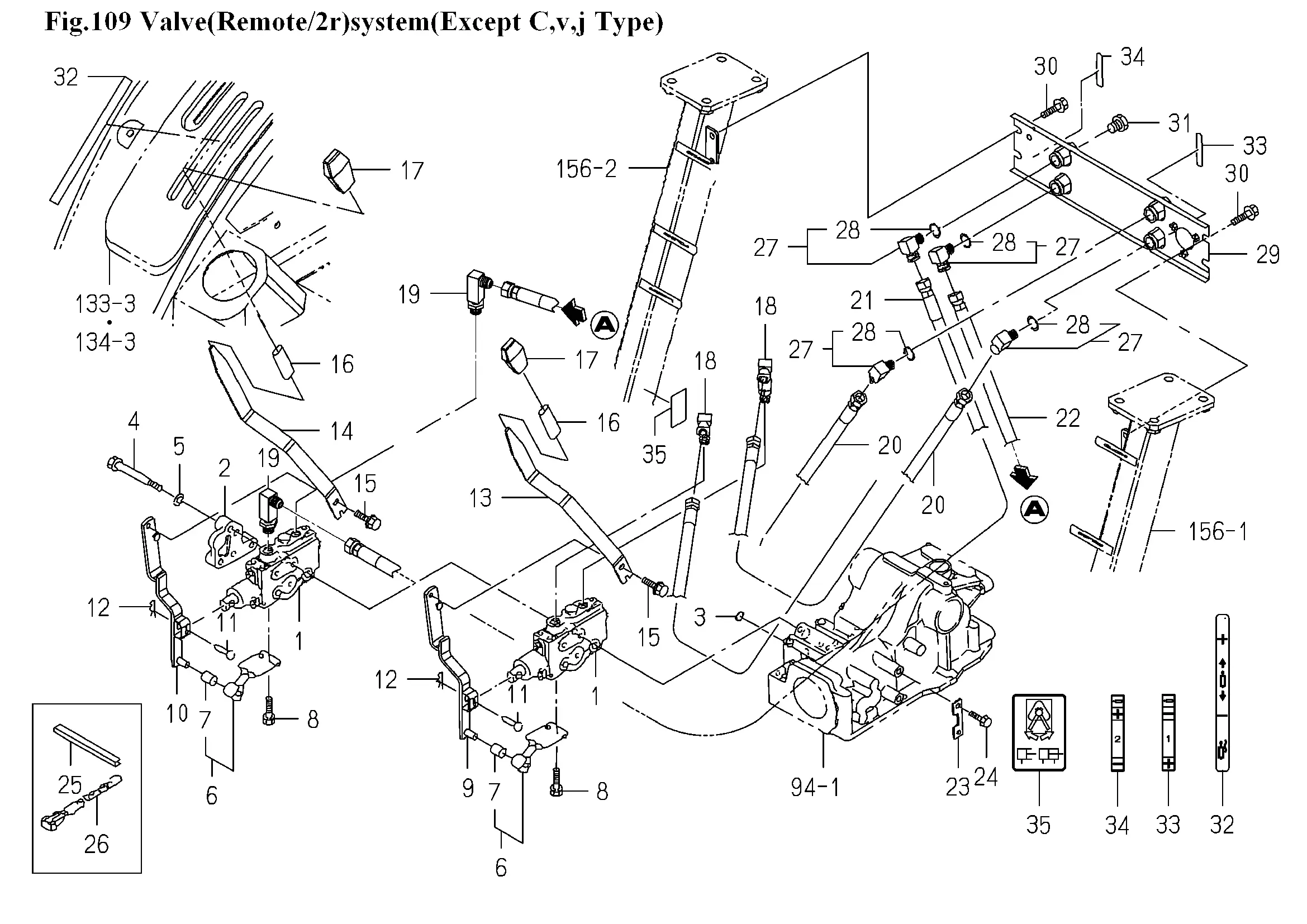

Steuergerät
Ersatzteile (35 Teile)
1
VALVE/CONTROL ASSY
2
COVER
3
O-RING/1B,P14
4
BOLT/M10X120
5
WASHER,SP/M10
6
HOLDER ASSY
7
BUSH/10X12X20
8
V211-260-801-60
9
ARM/1ST COMP
10
ARM/2ND COMP
11
PIN/06X31
12
PIN,SNAP/6
13
LEVER/AUX/1ST
14
LEVER/AUX/2ND
15
BOLT,SP/M8X16
16
INSULATOR/LEVER/SUB
17
GRIP/03X17X74
18
CONNECTOR
19
CONNECTOR/L
20
1773-512-950-20
21
1640-530-270-20
22
1744-512-260-10
23
PLATE/STOPPER
24
V231-361-002-00
25
3650-201-008-00
26
1342-402-006-00
27
ADAPTER/L/G3/8 ASSY
28
O-RING/1B,P14
29
1772-512-210-20
30
V211-361-001-60
31
PLUG/SCREW/SEAL
32
1772-512-002-00
33
LABEL/PORT/1ST/E4/+
34
LABEL/PORT/2ND/E4/+
35
LABEL/SUBCON
