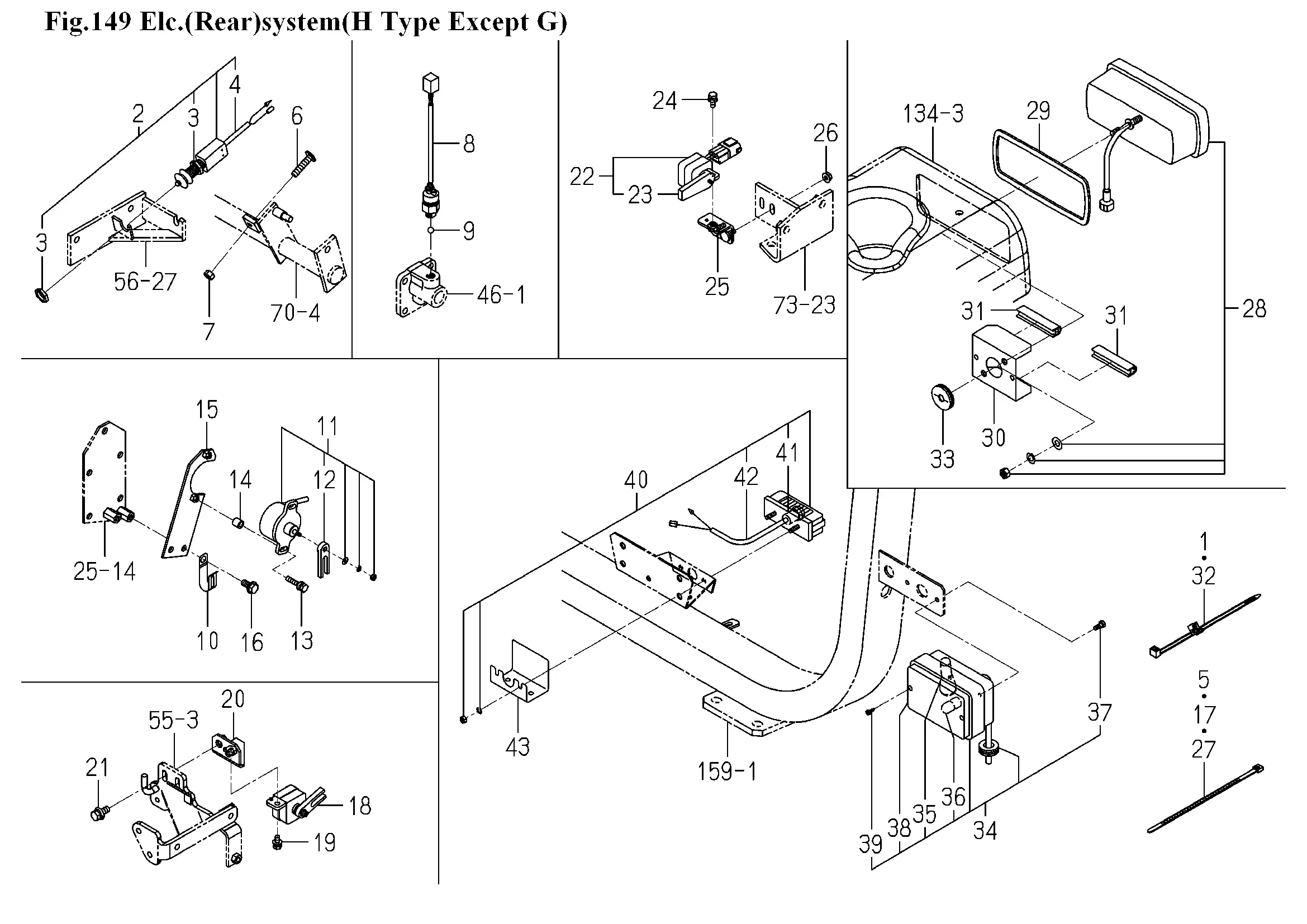

Schalter, Beleuchtung
Ersatzteile (43 Teile)
1
1560-666-004-00
2
1772-654-280-10
3
1772-654-281-00
4
BOOT
5
1342-402-006-00
6
BOLT/ADJUST
7
NUT/M8
8
SWITCH/PUSH ASSY
9
BALL,STEEL
10
HOLDER/JE/9-9
11
SENSOR ASSY
12
PLATE/SENSOR
13
BOLT,SP/M6X30
14
COLLAR/07X11X11
15
BRACKET/SWITCH/SUB
16
FLANGEBOLT/M8X16
17
BAND,WIRE/140
18
1740-680-520-10
19
BOLT,SP/M6X16
20
1772-654-350-00
21
BOLT,SP/M8X20
22
1716-680-330-10
23
ARM
24
BOLT,SP/M6X16
25
BRACKET/SWITCH/PARKI
26
NUT/WASHER/M6
27
BAND,WIRE/140
28
LAMP/COMBINATION/REA
29
INSULATOR/LAMP
30
STAY/LAMP COMP
31
TRIM/70
32
1560-666-004-00
33
1678-782-003-00
34
LAMP/COMBINATION/FRO
35
1674-654-211-00
36
Glühlampe 12V _SW
37
1772-654-221-00
38
1772-654-222-00
39
1772-654-223-00
40
LAMP/NUMBERPLAT SET
41
1674-654-271-00
42
HARNESS/LAMP
43
GUARD/LIGHT
