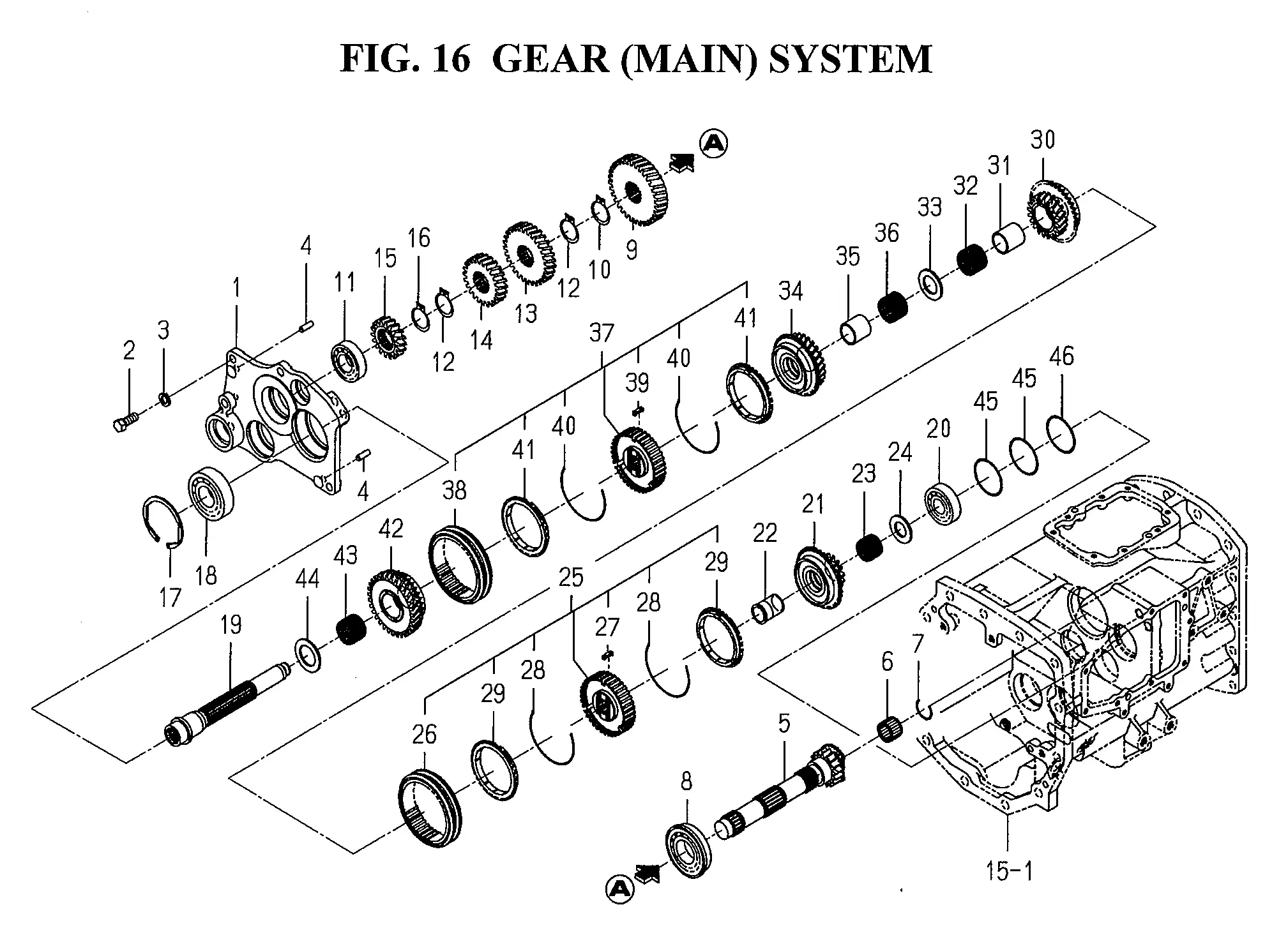

Getriebe
Ersatzteile (46 Teile)
1
1719-224-001-10
2
BOLT/M12X30/7T
3
WASHER,SP/M12
4
PIN,ST,B/10X24
5
1719-224-007-00
6
BEARING/NEEDLE
7
RING/SNAP
8
Kugellager
9
1719-224-012-10
10
RING,SNAP/35 C
11
BEARING/BALL
12
RING,SNAP/35 C
13
1719-224-011-00
14
1719-224-009-00
15
1719-224-008-00
16
RING,SNAP/35 C
17
RING,SNAP/R80
18
BEARING,RB/6307
19
1719-224-002-00
20
Kugellager
21
1719-224-006-00
22
Buchse
23
Nadellager
24
COLLAR/25X46X3
25
Zahnrad, Synchronisierung 30Z,
26
Manschette
27
PIN/INSERT
28
SPRING
29
RING/SYNCHRONIZER
30
1719-224-005-00
31
1719-224-017-00
32
BEARING/NEEDLE
33
WASHER/30X50X03
34
1719-224-004-00
35
1719-226-007-00
36
BEARING/NEEDLE
37
Zahnrad, Synchronisierung 30Z,
38
Manschette
39
PIN/INSERT
40
SPRING
41
RING/SYNCHRONIZER
42
1719-224-003-00
43
BEARING/NEEDLE
44
WASHER/35X55X03
45
SHIM,A
46
SHIM,B
