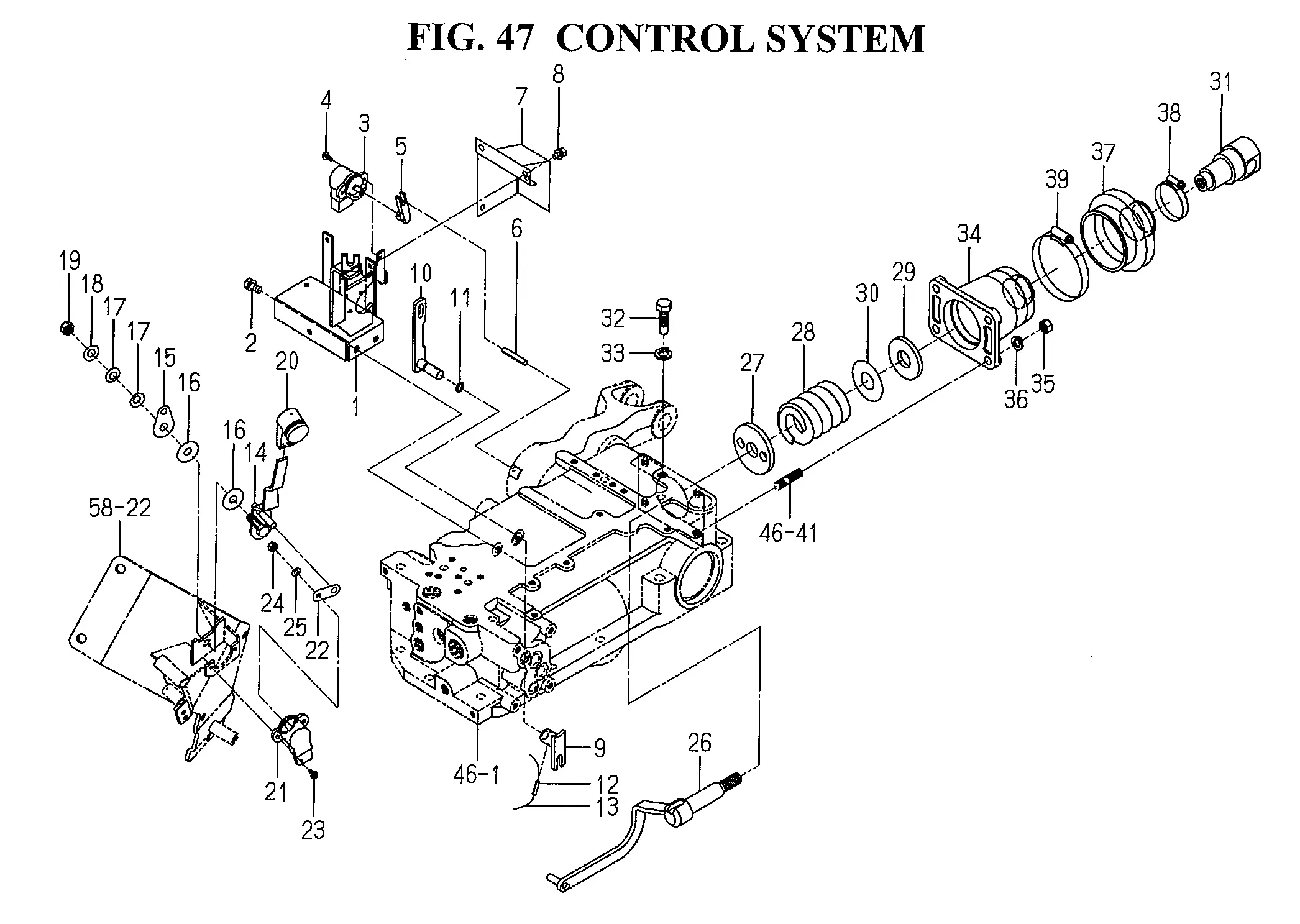

Betätigung, Heckhydraulik
Ersatzteile (38 Teile)
1
1719-505-350-00
2
V211-260-801-60
3
SENSOR/ANGLE/11 ASSY
4
SCREW,SP/M4X12
5
ARM
6
V580-140-604-00
7
1656-505-002-00
8
V210-360-601-20
9
1656-505-210-20
10
1719-505-370-00
11
O-RING/1A,P9
12
PIN,SPRING/4X18 W
14
1719-505-200-20
15
PLATE
16
LINING/11X30X02
17
SPRING/WASHER
18
V411-260-010-00
19
1581-782-111-00
20
GRIP
21
SENSOR/ANGLE/75 ASSY
22
1719-505-002-00
23
SCREW,SP/M4X12
24
V301-260-006-00
25
V401-160-006-00
26
1719-505-360-00
27
HOLDER,SPRING
28
1719-505-051-00
29
WASHER/23X56X06
30
1568-510-003-00
31
LINK
32
BOLT/M12X37
33
WASHER,SP/M12
34
1719-505-052-00
35
V304-460-010-00
36
WASHER,SP/M10
37
BOOT
38
J061-132-050-00
39
CLANP/WORM/65-90
