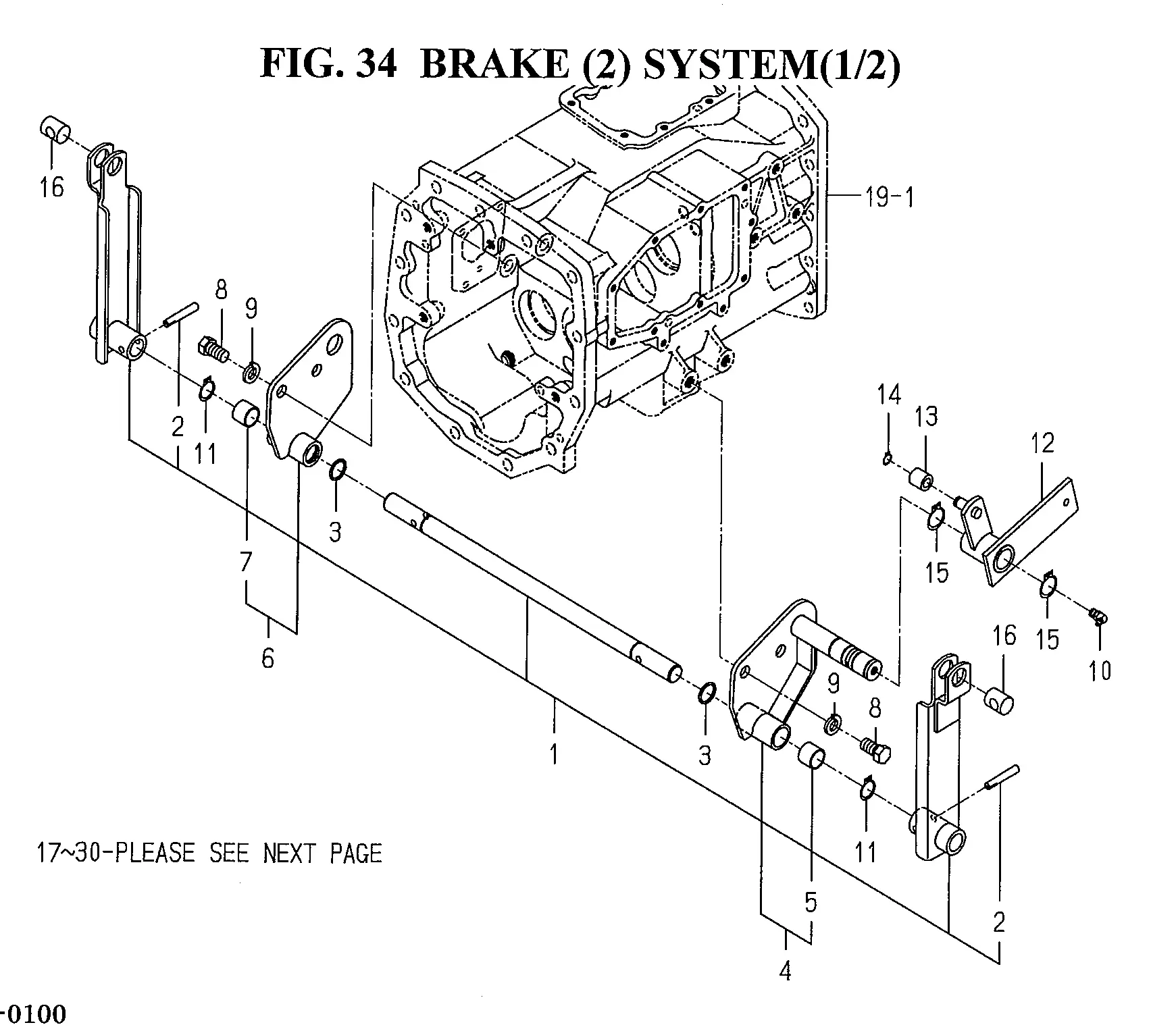

Bremse II
Ersatzteile (38 Teile)
1
1781-312-260-00
2
PIN,TAPER/8X50
3
O-RING/1A,P22
4
1781-312-250-00
5
BUSH/22X25X20
6
1781-312-280-00
7
BUSH/22X25X20
8
BOLT/M14X25/7T
9
WASHER,SP/M14
10
NIPPLE,GREASE/PT1/8
11
RING,SNAP/22 C
12
1781-312-230-00
13
1781-312-002-00
14
RING,SNAP/12 C
15
RING,SNAP/25 C
16
1781-312-001-00
17
1690-312-200-20
18
PIN,TAPER/8X50
19
1690-312-250-00
20
1719-312-001-00
21
RING,SNAP/20 C
22
1690-312-230-00
23
BUSH/20X23X20
24
Gabelstück
25
1719-312-200-00
26
NUT/LH/M08
27
TURNBUCKLE/M8
28
NUT/M8
29
PIN
30
WASHER,PL/M8
31
PIN,SPLIT/2X20
32
O-RING/1A,P7
33
Pedalgummi, Bremse (rot)
34
1719-135-001-00
35
1690-312-002-00
36
SCREW,SP/M4X12
37
INSULATOR
38
NUT/M8
