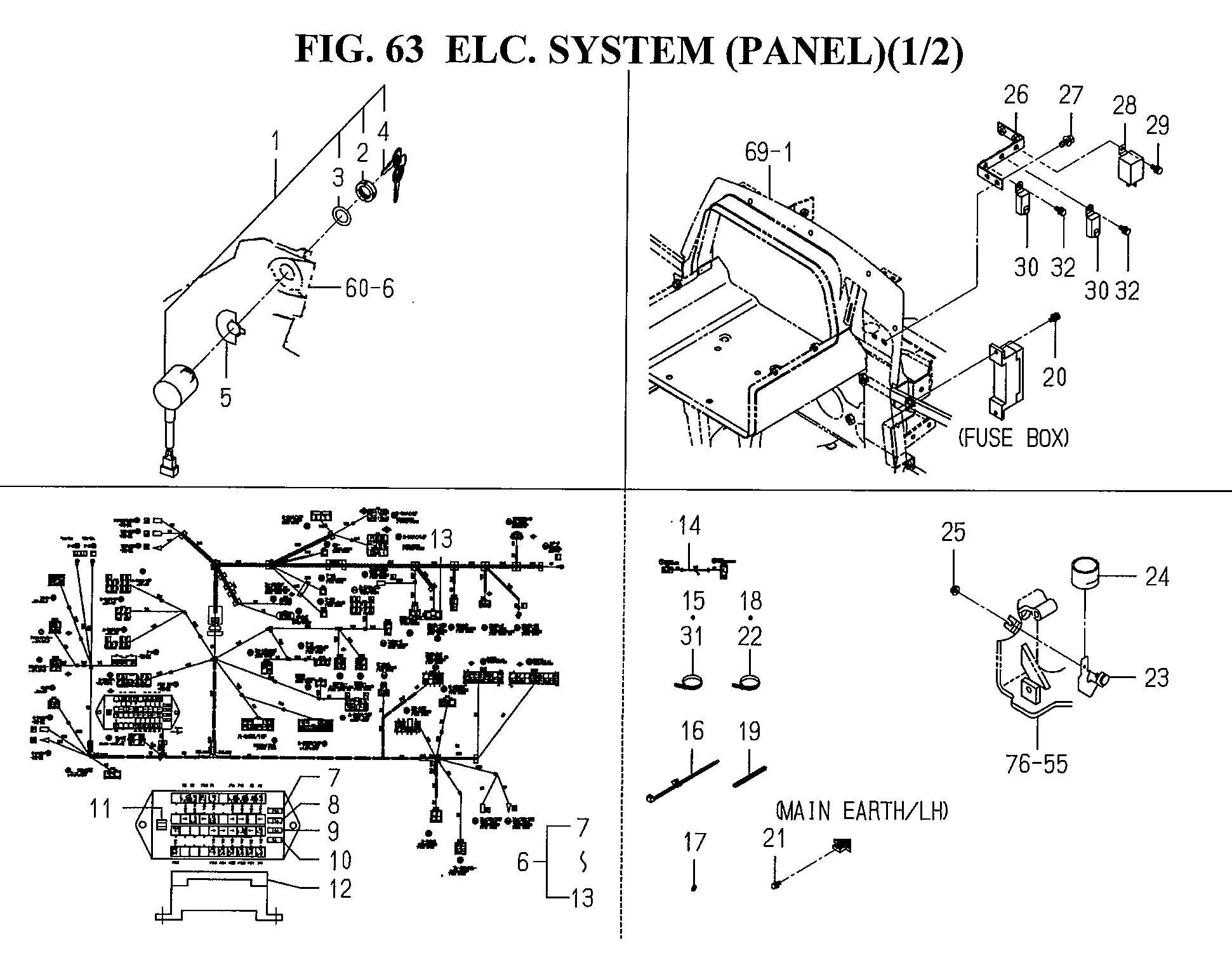

Schalter, Relais
Ersatzteile (72 Teile)
1
SWITCH/ROTALY/E SET
2
RINGNUT
3
1729-652-273-00
4
KEY
5
1719-652-002-10
6
1781-652-220-00
7
FUSE/BLADE/32V20A
8
FUSE/BLADE/32V15A
9
FUSE/BLADE/32V10A
10
FUSE/BLADE/32V05A
11
TOOL/FUSE
12
COVER/FUSE
13
FUSE/SLOW BLOW/60A
14
Kabel, Temperaturfühler
15
BAND,WIRE/140
16
1560-666-004-00
17
V411-260-006-00
18
1342-402-006-00
19
Kantenschutz
20
BOLT,SP/M6X16
21
BOLT,SP/M6X16
22
1342-402-006-00
23
1781-652-230-00
24
1759-652-001-00
25
NUT/WASHER/M6
26
1650-652-920-00
27
BOLT,SP/M8X20
28
1600-623-002-00
29
BOLT,SP/M6X16
30
Relais blau, 4-pol., ACA 22135 C02 60316
31
BAND,WIRE/140
32
BOLT,SP/M6X16
33
Blinkschalter
34
SCREW,SEMS/M6X16
35
1342-402-006-00
36
BAND,WIRE/140
37
Schalter
38
ACTUATOR ASSY
39
SCREW/M3X20
40
WASHER,SP/M3
41
V411-260-003-00
42
PLATE,SWITCH
43
1719-652-270-00
44
BOLT,SP/M6X16
45
Schalter
46
V111-164-002-50
47
V401-160-004-00
48
Platte
49
WASHER,PL/M4
50
Relais Motorstart
51
BOLT,SP/M6X16
52
Sicherheitsschalter
53
V120-364-002-50
54
Platte
55
1656-312-300-10
56
BOLT,SP/M6X16
57
Bremslichtschalter
58
ARM
59
FLANGEBOLT/M6X30
60
BRACKET/SWITCH COMP
61
BOLT,SP/M6X16
62
1674-654-200-10
63
1674-654-211-00
64
Glühlampe 12V _SW
65
1342-402-006-00
66
Relais Motorstart
67
BOLT,SP/M6X16
68
Relais Motorstart
69
1690-658-300-00
70
1342-402-006-00
71
1342-402-006-00
72
3746-185-014-00
