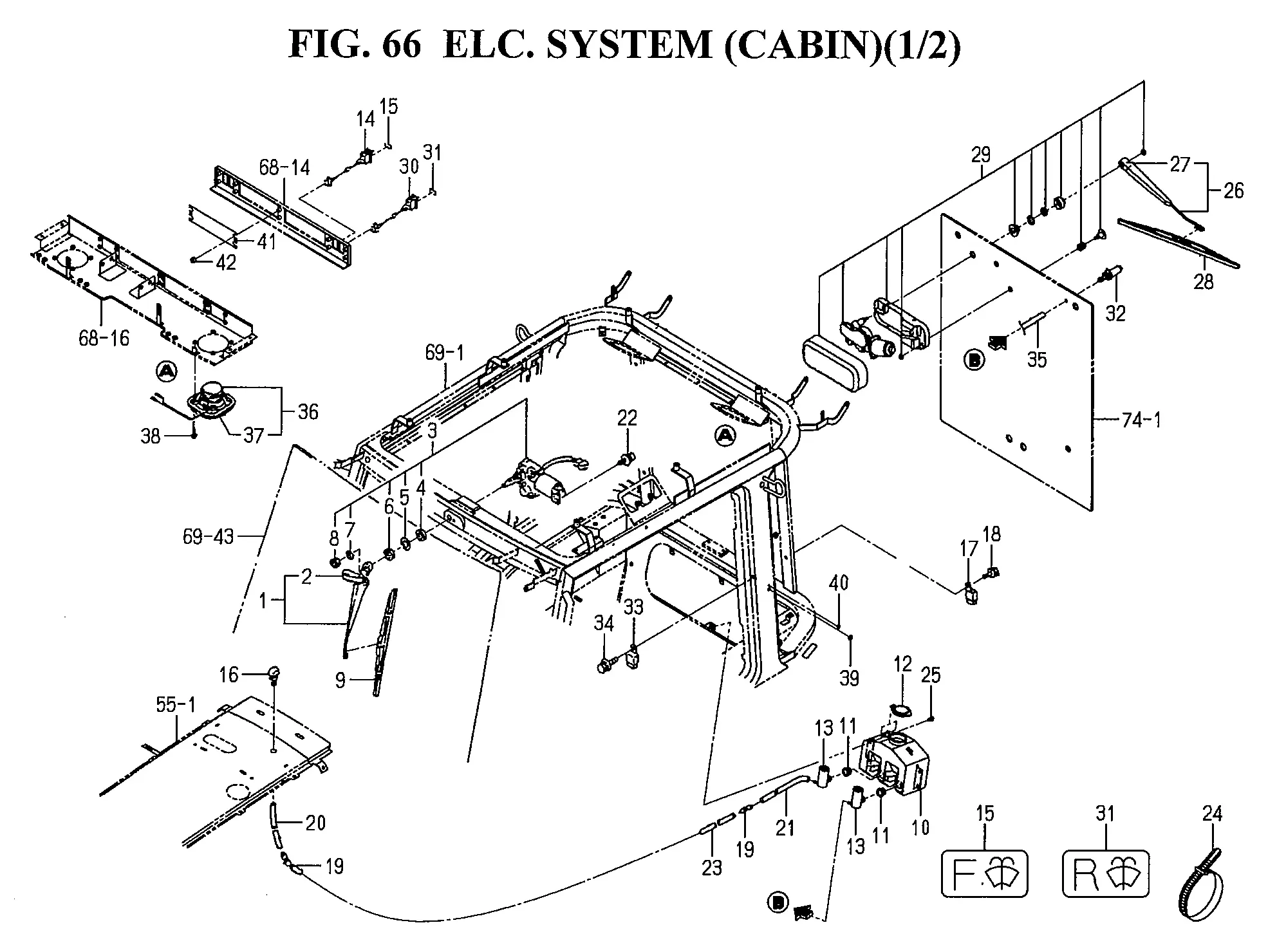

Elektrik, Kabine oben
Ersatzteile (57 Teile)
1
Wischerarm
2
COVER/HEAD
3
1650-658-310-00
4
1650-658-312-00
5
1650-658-313-00
6
1650-658-314-00
7
V401-160-006-00
8
V302-260-006-00
9
BLADE/WIPER/450 ASSY
10
TANK/WASHER/2M
11
GROMMET/W/T
12
Deckel, Tank Scheibenwaschanlage
13
PUMP/W/T
14
Switch Wiper Assy
15
1781-658-001-00
16
Waschdüse
17
Relais 5 Pol., ACA3213-1
18
BOLT,SP/M6X16
19
Ventil
20
1690-658-009-00
21
1729-658-007-00
22
V120-365-001-20
23
1719-658-002-00
24
BAND,WIRE/140
25
SCREW,SP/M6X16
26
Wischerarm
27
COVER/HEAD
28
BLADE/WIPER/400 ASSY
29
Wischermotor
30
Switch Wiper Assy
31
1781-658-002-00
32
Nozzle Washer Assy
33
Relais 5 Pol., ACA3213-1
34
BOLT,SP/M6X16
35
1719-658-002-00
36
Lautsprecher
37
1673-666-621-00
38
V111-174-002-00
39
1781-658-003-00
40
1781-658-004-00
41
1781-658-005-00
42
1781-658-006-00
43
1719-658-310-10
44
BAND,WIRE/140
45
SWITCH/DOOR ASSY
46
NUT/M10
47
Arbeitsscheinwerfer 12V35W
48
1719-705-005-00
49
REAR DIFF SWITCH
50
DIFF LOSTING MARK
51
1711-666-052-10
52
1711-666-053-10
53
1650-658-410-00
54
Sofite 12V 8 W
55
1650-658-412-00
56
V120-365-001-60
57
1719-658-210-00
