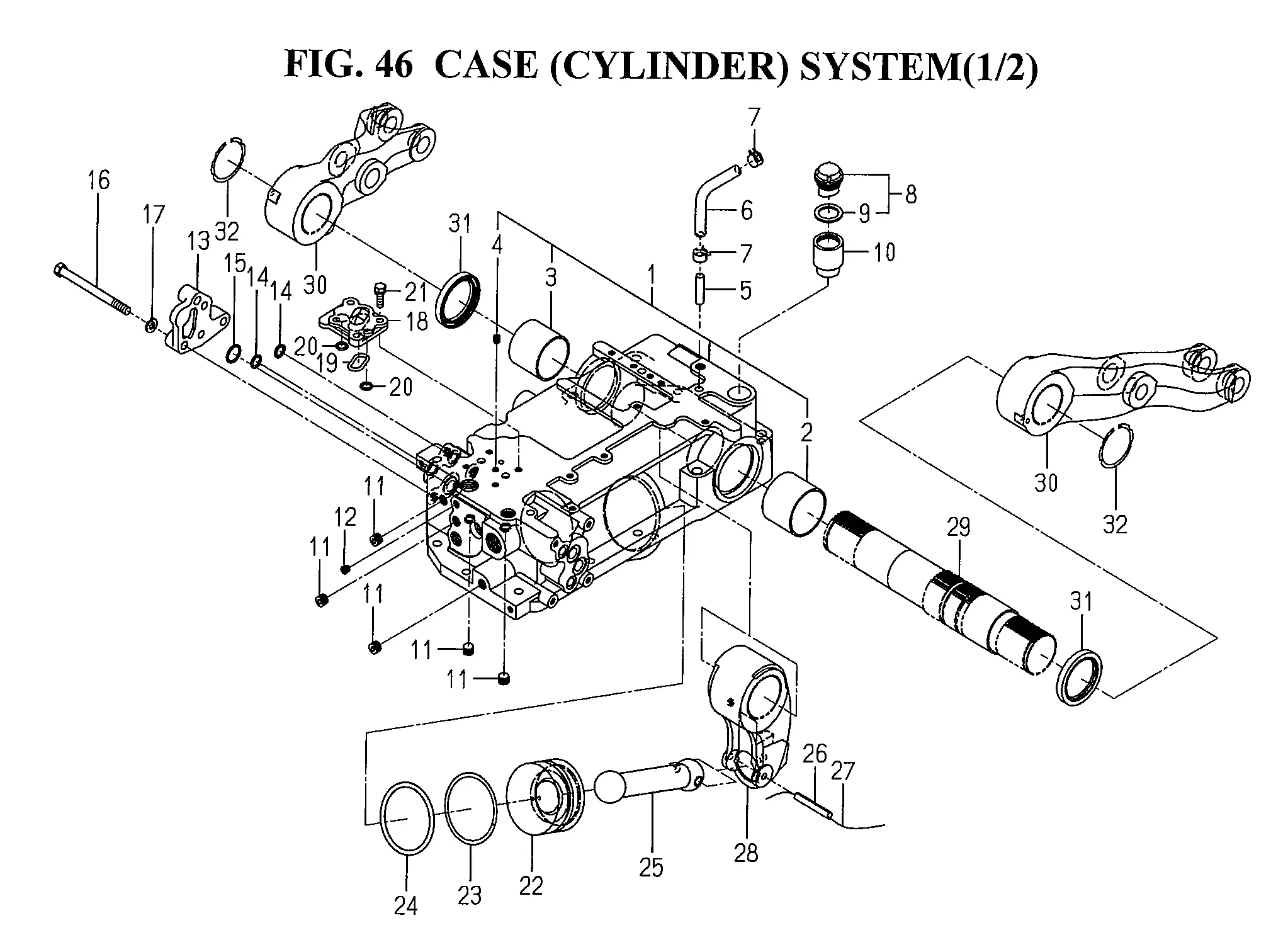

Heckhydraulik
Ersatzteile (55 Teile)
1
1719-501-200-10
2
BUSH/60X65X50
3
BUSH/55X60X50
4
1729-501-009-00
5
PIPE,BREATHER
6
1650-111-022-00
7
J062-154-167-00
8
Deckel
9
Dichtung
10
Buchse 24x38x44
11
PLUG/SCREW/SEAL
12
PLUG/SCREW/SEAL
13
COVER
14
O-RING/1B,P14
15
O-RING/1B,P20
16
BOLT/M10X120
17
WASHER,SP/M10
18
1729-509-005-20
19
O-RING/1B,P26,HS90
20
O-RING/1B,P12
21
BOLT,S/M8X25
22
1719-501-003-00
23
V730-109-008-00
24
V720-115-708-00
25
ROD
26
V580-140-806-00
28
1656-501-003-00
29
1564-505-001-40
30
1719-501-011-00
31
SEAL,OIL/TC55729
32
V706-140-055-00
33
V211-561-003-00
34
BOLT,S/M10X35/7T
35
1719-501-002-00
36
V251-341-003-50
37
V304-460-010-00
38
WASHER,SP/M10
39
V201-361-208-5B
40
WASHER,SP/M12
41
V251-341-002-8D
42
k182-094-000-20
43
NIPPLE,GREASE
44
1719-501-210-00
45
O-RING/1B,P14
46
ADAPTER/L/G3/8 ASSY
47
O-RING/1B,P14
48
ADAPTER/90
49
1719-501-220-00
50
1440-105-006-00
51
V211-360-801-20
52
1719-501-012-00
53
V304-460-020-00
54
WASHER,SP/M20
55
1584-522-002-00
56
BOLT,S/M10X20/7T
