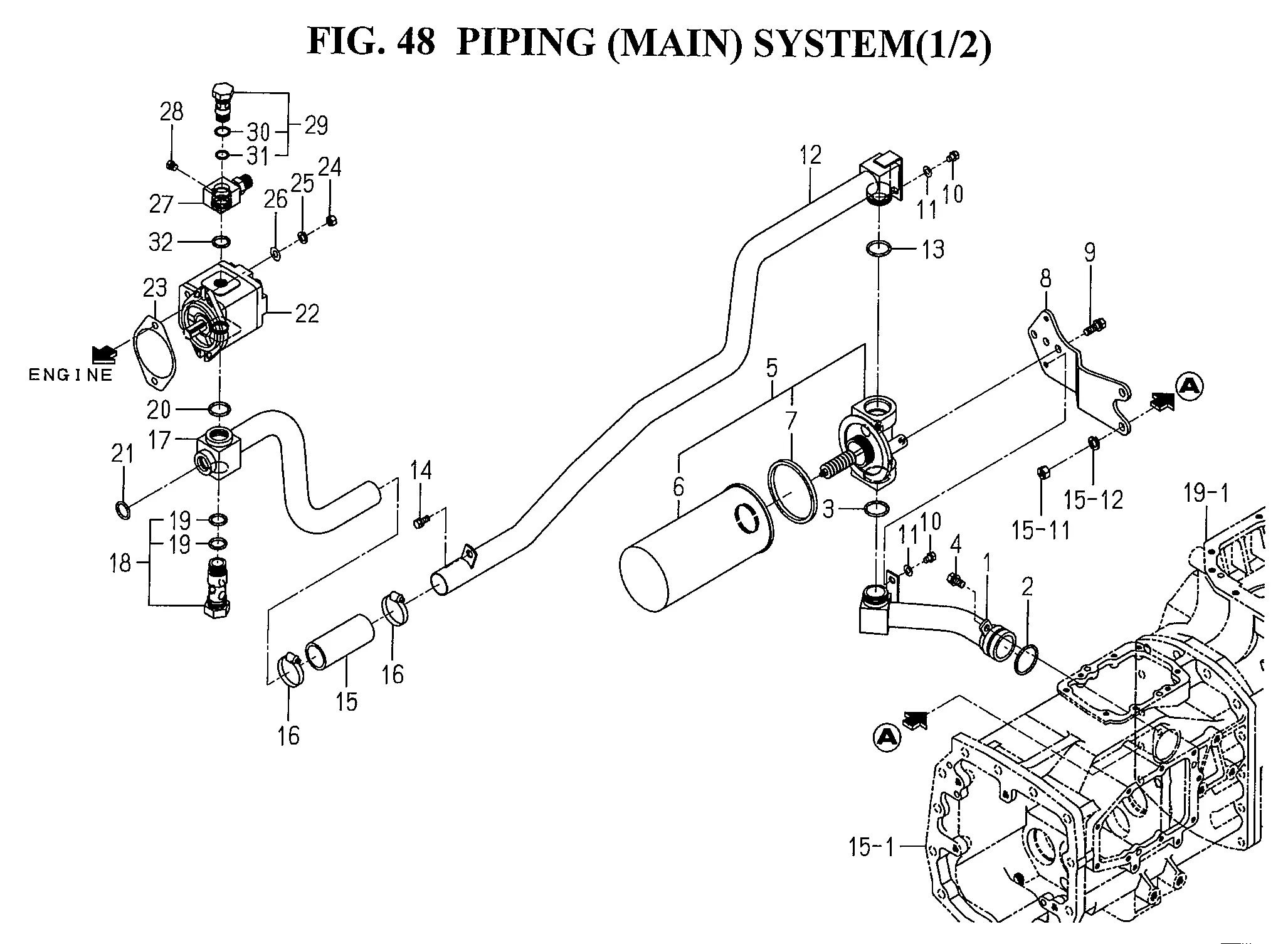

Hydraulikpumpe (primär), -Filter, -Leitungen
Ersatzteile (82 Teile)
1
1719-508-800-00
2
O-RING/1B,P44
3
O-RING/1B,P34
4
BOLT,S/M10X20
5
1719-508-790-10
6
Hydraulikfilter
7
O-Ring
8
1719-508-036-00
9
BOLT(S) M10X30
10
V211-260-801-20
11
WASHER,PL/M8
12
1719-508-810-00
13
O-RING/1B,P34
14
BOLT,SP/M8X20
15
1719-508-005-00
16
1696-508-002-00
17
1719-508-540-00
18
1701-508-350-00
19
O-RING/1B,P24
20
O-Ring
21
O-Ring
22
1719-508-560-00
23
GASKET/PUMP
24
NUT/M10
25
WASHER,SP/M10
26
V411-260-010-00
27
1719-508-580-00
28
PLUG/SCREW/SEAL
29
1701-508-360-00
30
O-RING/1B,P20
31
O-RING/1B,P18
32
O-RING/1B,P24
33
1719-508-600-00
34
1719-508-820-10
35
ADAPTER ASSY
36
O-RING/1B,P18
37
1719-508-860-10
38
O-RING/1B,P14
39
FILTER/LINE/12X18X15
40
1719-508-034-10
41
V211-260-801-60
42
1719-508-037-00
43
1719-508-039-00
44
BOLT,SP/M8X16
45
K250-047-000-00
46
ADAPTER/L/G1/2 ASSY
47
O-RING/1B,P14
48
ADAPTER/PF1/2 ASSY
49
O-RING/1B,P14
50
1719-508-260-00
51
K200-140-000-00
52
O-RING/1B,P14
53
O-RING/1B,P20
54
FILTER/LINE/12X18X15
55
V211-260-806-00
56
Ventil
57
O-RING/1B,P10A
58
RING/BACK UP
59
Manschette 11x21x3
60
Sicherungsring
61
SEAL,DUST
62
O-RING/1B,P22
63
O-RING/1B,P16
64
NUT/M10
65
1719-508-010-00
66
1719-508-011-00
67
1719-508-012-00
68
1719-508-330-00
69
1719-508-009-00
70
V120-364-001-00
71
BOLT,SP/M6X16
72
HANDLE,ADJUST
73
1719-508-310-00
74
3650-220-008-00
75
V111-164-001-60
76
K250-051-000-00
77
O-RING/1B,P12
78
O-RING/1B,P18
79
K233-010-000-00
80
O-RING/1B,S16
81
O-RING/1B,P20
82
FILTER/LINE/12X18X15
