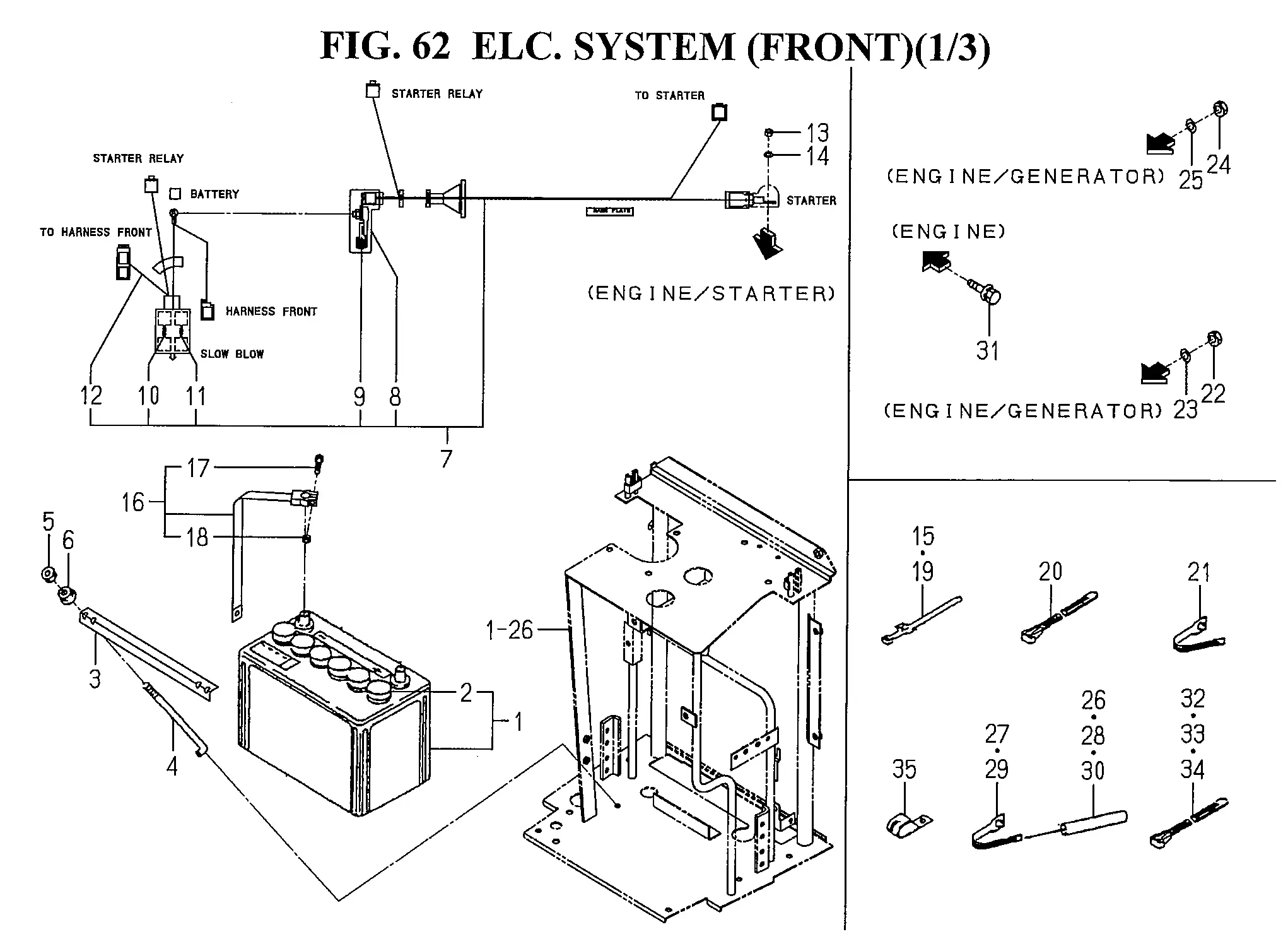

Batterie, elektrische Verbindungen
Ersatzteile (83 Teile)
1
1656-650-200-10
2
1656-650-202-00
3
1422-687-001-10
4
Gestänge, Batteriebefestigung
5
V301-260-006-00
6
NUT,WASHER/M6
7
1781-650-220-00
8
1696-650-242-00
9
1755-650-230-00
10
FUSE/SLOW BLOW/50A
11
FUSE/SLOW BLOW/40A
12
1781-650-222-00
13
NUT/M8
14
WASHER,SP/M8
15
1560-666-004-00
16
Masseband
17
1568-650-004-10
18
1568-650-005-10
19
1560-666-004-00
20
1421-621-038-00
21
CLAMP
22
V301-260-006-00
23
V401-160-006-00
24
V301-260-005-00
25
V401-160-005-00
26
TUBE/120
27
CLAMP
28
TUBE/120
29
CLAMP
30
TUBE/120
31
6901-900-814-00
32
1342-402-006-00
33
1342-402-006-00
34
BAND,WIRE/140
35
3737-172-009-00
36
1674-652-220-00
37
1674-652-202-00
38
SPRING/HC016
39
V111-166-002-00
40
1781-650-300-00
41
1781-650-310-00
42
V111-165-001-20
43
Hupe
44
BOLT,SP/M6X16
45
1781-650-200-00
46
FUSE/BLADE/32V30A
47
FUSE/BLADE/32V20A
48
FUSE/BLADE/32V15A
49
FUSE/BLADE/32V10A
50
FUSE/BLADE/32V05A
51
TOOL/FUSE
52
COVER/FUSE
53
Buchse 09x14x20
54
V210-360-603-50
55
1421-621-038-00
56
BAND,WIRE/140
57
CLAMP
58
BAND,WIRE/140
59
1342-402-006-00
60
BAND,WIRE/140
61
Kappe
62
1600-624-004-10
63
HARNESS,GLOW
64
HARNESS/ENGINE/EARTH
65
1719-652-540-00
66
BAND,WIRE/140
67
Relais
68
BOLT,SP/M6X16
69
RELAY/4P-2 ASSY
70
BOLT,SP/M6X16
71
BOLT,SP/M6X16
72
Relais 5 Pol., ACA3213-1
73
BOLT,SP/M6X16
74
Widerstand
75
SCREW/M3X0.5X8
76
V411-260-003-00
77
WASHER,SP/M3
78
1719-650-003-00
79
BOLT,SP/M6X16
80
RELAY ASSY
81
V120-365-001-60
82
RELAY/35A ASSY
83
V120-365-001-60
