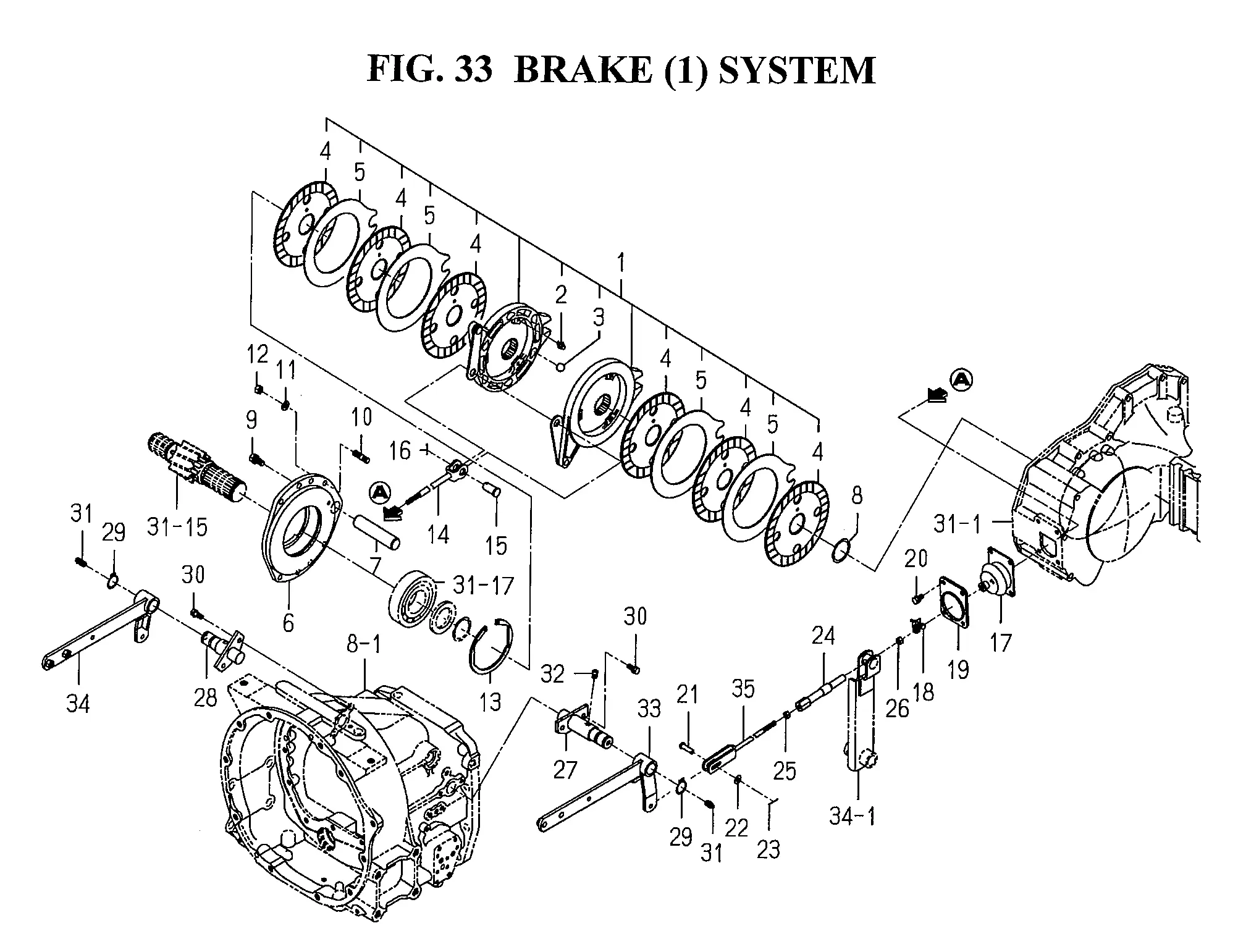

Bremse I
Ersatzteile (35 Teile)
1
1719-310-230-00
2
SPRING,RETURN
3
BALL,STEEL
4
DISC,BRAKE
5
PLATE,SEPARATE
6
1719-310-002-10
7
1506-310-002-00
8
V706-140-045-00
9
BOLT,S/M10X25/7T
10
STUD/M10X25/7T
11
WASHER,SP/M10
12
V304-460-010-00
13
V707-140-110-00
14
1781-310-200-00
15
PIN(15X30)
16
V500-163-002-00
17
Manschette
18
J061-210-015-00
19
Platte
20
V211-260-801-60
21
PIN,YOKE A
22
WASHER,PL/M8
23
PIN,SPLIT/2X20
24
1781-310-001-00
25
NUT/M8
26
NUT/LH/M08
27
Schaltwelle
28
Schaltwelle
29
RING,SNAP/25 C
30
BOLT,S/M8X20
31
NIPPLE/GREASE
32
PLUG/SCREW
33
1719-310-200-00
34
1719-310-210-00
35
1781-310-210-00
