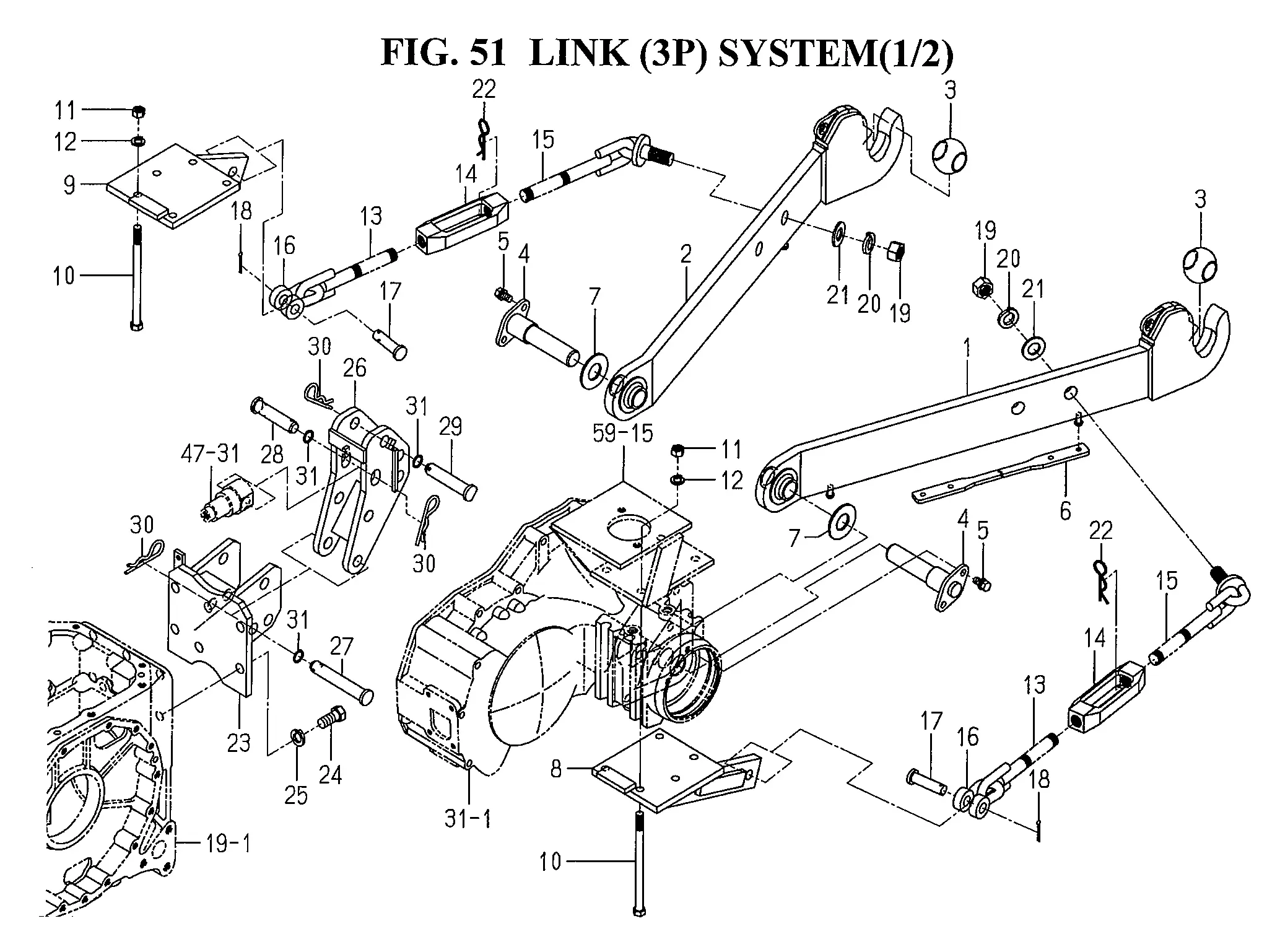

Heck-3-Punkt
Ersatzteile (52 Teile)
1
1781-514-200-00
2
1781-514-210-00
3
Kugel
4
Bolzen
5
BOLT,S/M10X20/7T
6
Gummiband
7
1781-514-005-00
8
1719-514-530-00
9
1719-514-540-00
10
1719-514-008-00
11
V304-460-012-00
12
WASHER,SP/M12
13
1719-514-560-00
14
1719-514-051-00
15
1755-514-280-00
16
1719-514-005-00
17
1432-519-002-10
18
V500-164-003-00
19
NUT/M20
20
WASHER,SP/M20
21
WASHER,PL/M20
22
PIN,HAIR/19
23
1719-514-590-00
24
V201-361-603-50
25
WASHER,SP/M16
26
1719-514-580-00
27
PIN/19X122
28
PIN/19X86
29
Bolzen 19x95
30
PIN,HAIR (19) *
31
O-RING/1B,P18
32
Oberlenker, Kat 2
33
1781-514-310-00
34
Fanghaken
35
1781-514-330-00
36
Feststellmutter
37
Fangkugel
38
PIN/19X122
39
PIN,HAIR (19) *
40
Bolzen Typ=D-25,5-124-12-109
41
LINKPIN
42
1719-514-640-00
43
V211-260-801-60
44
1719-514-021-10
45
FLANGEBOLT/M8X40
46
1719-514-022-00
47
WASHER,BINDING SHAFT
48
SPRING/HC014
49
NUT/M8
50
V363-260-008-00
51
PAD/50
52
1719-514-023-00
