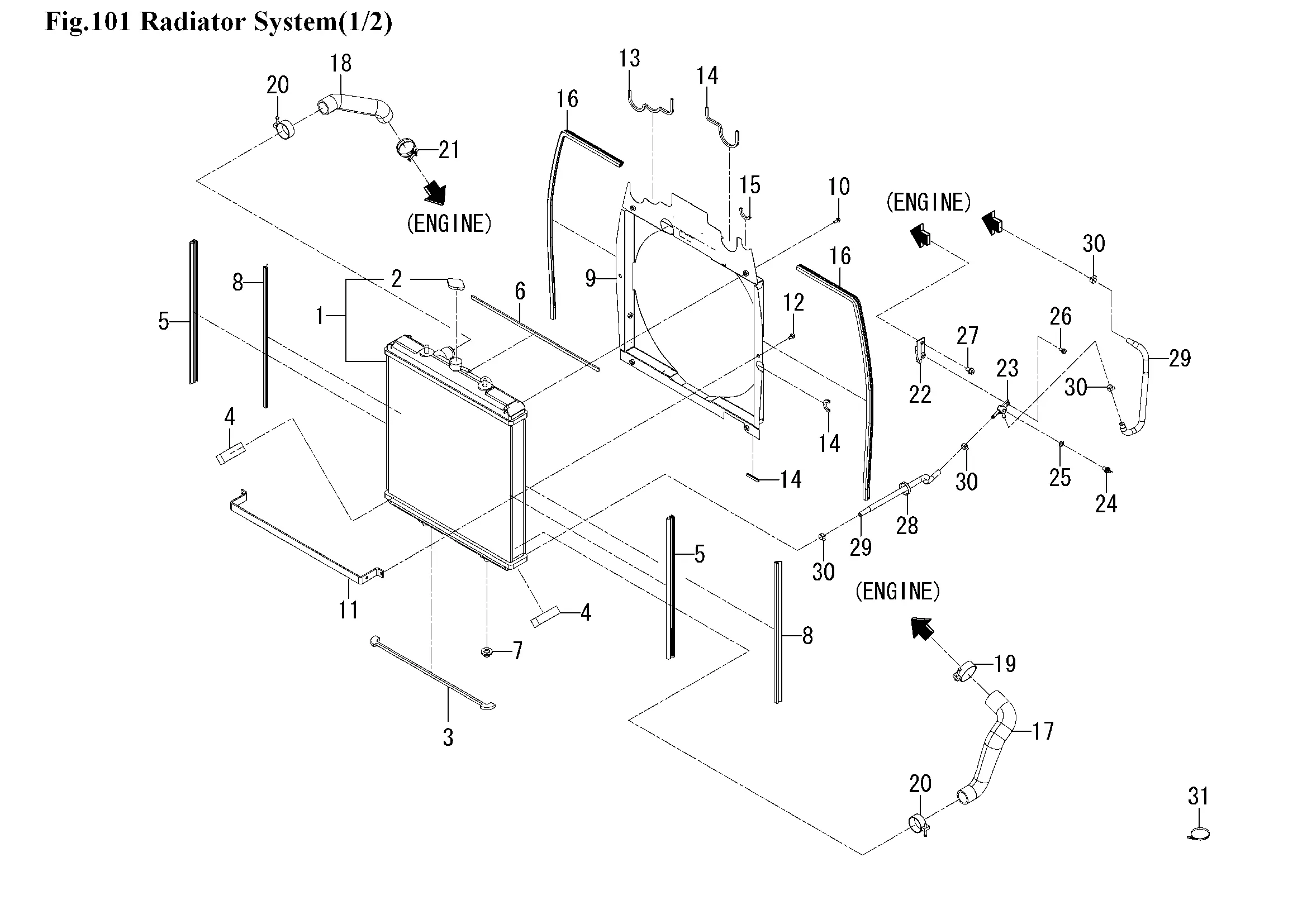

Kühler
Ersatzteile (67 Teile)
1
RADIATOR ASSY
2
Kühlerdeckel
3
1790-102-008-00
4
1800-102-017-00
5
1800-102-015-00
6
3656-820-213-00
7
INSULATOR
8
1800-102-021-00
9
1800-102-310-30
10
FLANGEBOLT/M6X16
11
1800-102-241-00
12
V231-360-801-20
13
1719-604-011-00
14
INSULATOR/210
15
Dichtung
16
1636-630-009-00
17
Kühlerschlauch, Ablauf
18
Kühlerschlauch, Zulauf
19
CLAMP/WIRE/49-60
20
J061-238-046-00
21
J061-245-053-00
22
1800-102-320-20
23
CONNECTOR
24
1424-101-203-00
25
PACKING
26
V211-260-801-60
27
V231-361-002-00
28
1342-402-006-00
29
HOSE/450 ASSY
30
CLIP/HOSE/14.7-15.9
31
1342-402-006-00
32
1807-102-210-20
33
1790-102-008-00
34
BUSH,LEVER
35
FLANGEBOLT/M8X16
36
1650-102-219-00
37
V231-360-801-20
38
1729-780-002-00
39
STUD/M8X20
40
1342-402-006-00
41
PAD/50
42
NET/12/548X571 COMP
43
1800-102-250-10
44
CAP
45
1522-616-003-00
46
1146-601-002-00
47
NUT,WASHER/M6
48
1719-742-005-00
49
1800-102-008-10
50
1800-102-350-00
51
1800-780-006-00
52
1800-102-018-00
53
1800-102-019-00
54
1800-102-330-10
55
1800-102-016-00
56
CLIP/HOSE/12.6-13.4
57
1800-102-340-00
58
CLIP/HOSE/11.9-12.6
59
1800-102-022-00
60
CLIP/HOSE/10.4-11.1
61
1800-102-260-10
62
WASHER/24X9X3.2
63
1719-312-001-00
64
SPRING/HT020
65
1800-102-006-10
66
V500-162-001-50
67
V411-260-006-00
