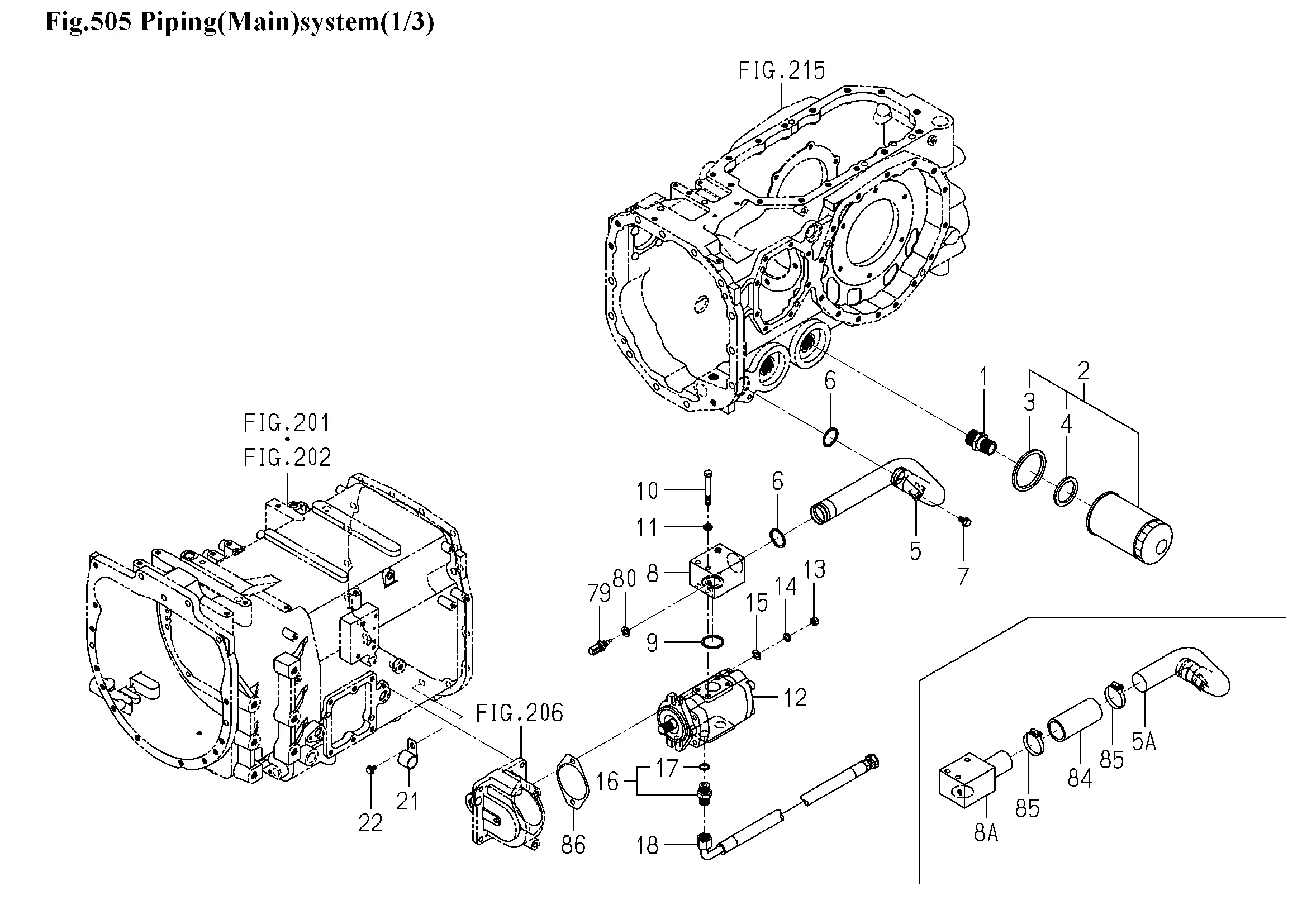

Hydraulikpumpe (primär), -Filter, Kükler,-Leitungen
Ersatzteile (86 Teile)
1
1800-508-001-00
2
Hydraulikfilter
3
1800-508-202-00
4
1800-508-203-00
5A
1800-508-280-00
6
O-RING/1B,P36
7
V231-361-001-60
8A
1800-508-260-00
9
V720-113-503-90
10
V203-261-007-50
11
WASHER,SP/M10
12
Hydraulikpumpe
13
V304-460-010-00
14
WASHER,SP/M10
15
V411-260-010-00
16
ADAPTER ASSY
17
O-RING/1B,P18
18
1800-508-240-10
19
ADAPTER ASSY
20
O-RING/1B,P18
21
CLIP B
22
V231-360-801-20
23
1800-508-002-00
24
K250-092-000-00
25
V211-560-804-50
26
V211-560-803-00
27
Winkelstück
28
O-RING/1A,P18
29
1790-508-370-00
30
Winkelstück
31
O-RING/1A,P18
32
CLIP B
33
V231-360-801-20
34
Ventil, Hubwerk
35
O-RING/1B,P22
36
O-RING/1B,P20
37
FILTER/LINE/12X18X15
38
COLLAR/16X18X15
39
V211-260-806-00
40
Senkdrossel
41
1719-508-010-00
42
NUT/M10
43
1791-508-002-00
44
1719-508-330-00
45
V120-364-001-00
46
HANDLE,ADJUST
47
1719-508-310-00
48
3650-220-008-00
49
V111-164-001-60
50
K250-097-000-00
51
O-RING/1B,P12
52
O-RING/1B,P18
53
1757-508-008-00
54
1800-508-044-00
55
1800-508-042-00
56
1800-508-420-00
57
J061-114-024-00
58
CLIP B
59
CLIP
60
V231-360-801-20
61
1757-508-014-00
62
J061-114-024-00
63
1800-508-430-00
64
BAND,WIRE/140
65
1790-508-023-00
66
1800-508-044-00
67
J061-114-024-00
68
Ölkühler
69
BOLT,SP/M8X16
70
1800-508-044-00
71
1790-508-023-00
72
J061-114-024-00
73
1800-508-420-00
74
1593-623-003-00
75
CLIP B
76
V231-360-801-20
77
1800-508-041-10
78
J061-114-024-00
79
SENSOR/TEMP ASSY
80
1757-509-015-00
81
1800-508-043-10
82
1757-508-015-00
83
J061-114-024-00
84
1790-508-009-00
85
J061-138-054-00
86
GASKET/PUMP
