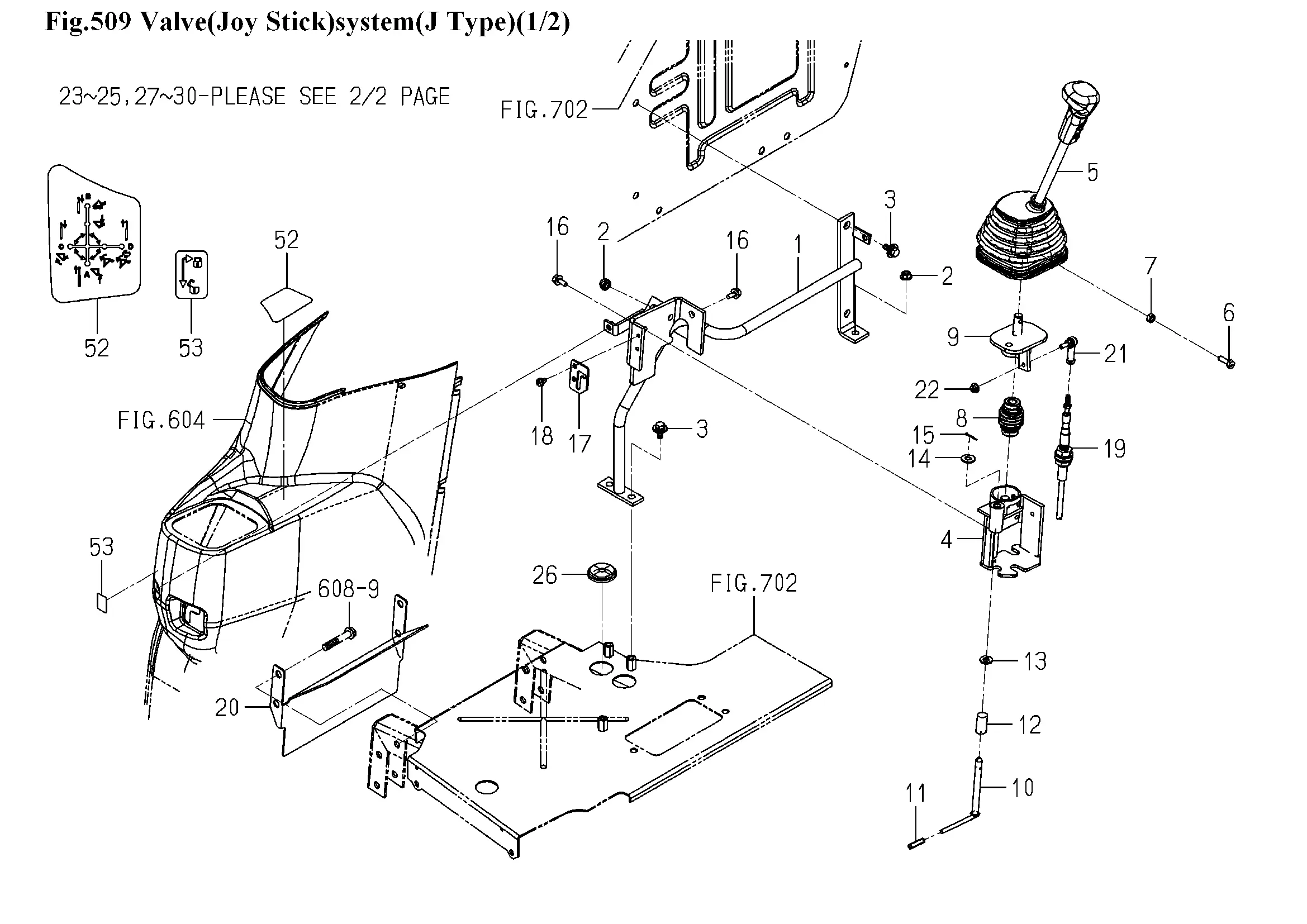

Kreutzhebel, Joy Stick
Ersatzteile (54 Teile)
1
1800-512-240-10
2
Kombimutter-M8
3
BOLT/M8X20(22)
4
1800-512-220-10
5
1800-512-320-10
6
BOLT,SM/M08X25
7
NUT/M8
8
JOINT ASSY
9
1800-512-210-10
10
1800-512-250-00
11
CAP/LOCK
12
1364-403-005-10
13
1365-121-005-00
14
V411-260-010-00
15
PIN,SPLIT/2X20
16
FLANGEBOLT/M8X16
17
1785-511-006-00
18
FLANGEBOLT/M6X10
19
Bowdenzug, Joystick
20
1800-512-034-00
21
JOINT/BALL/M06/RH
22
NUT/FLANGE/M06
23
JOINT/CABLE
24
PIN/06X25
25
PIN/SNAP
26
INSULATOR
27
1800-512-300-10
28
K211-085-001-00
29
WASHER,SP/M10
30
1800-512-350-10
31
BOLT,S/M10X25/7T
32
STUD/M10X20/7T
33
V304-460-010-00
34
WASHER,SP/M10
35
1800-512-035-10
36
FLANGEBOLT/M6X12
37
1800-512-360-10
38
CLAMP,RADIATOR HOSE
39
3650-201-008-00
40
1800-512-380-20
41
1342-402-006-00
42
Winkelstück
43
O-RING/1A,P18
44
ADAPTER/90/G/1/ ASSY
45
RING/O
46
ADAPTER ASSY
47
O-RING/1B,P18
48
1641-232-510-00
49
O-RING/1B,P18
50
PLUG(G3/8)
51
O-RING/1B,P14
52
1800-902-008-00
53
1800-902-017-00
54
1800-902-021-00
