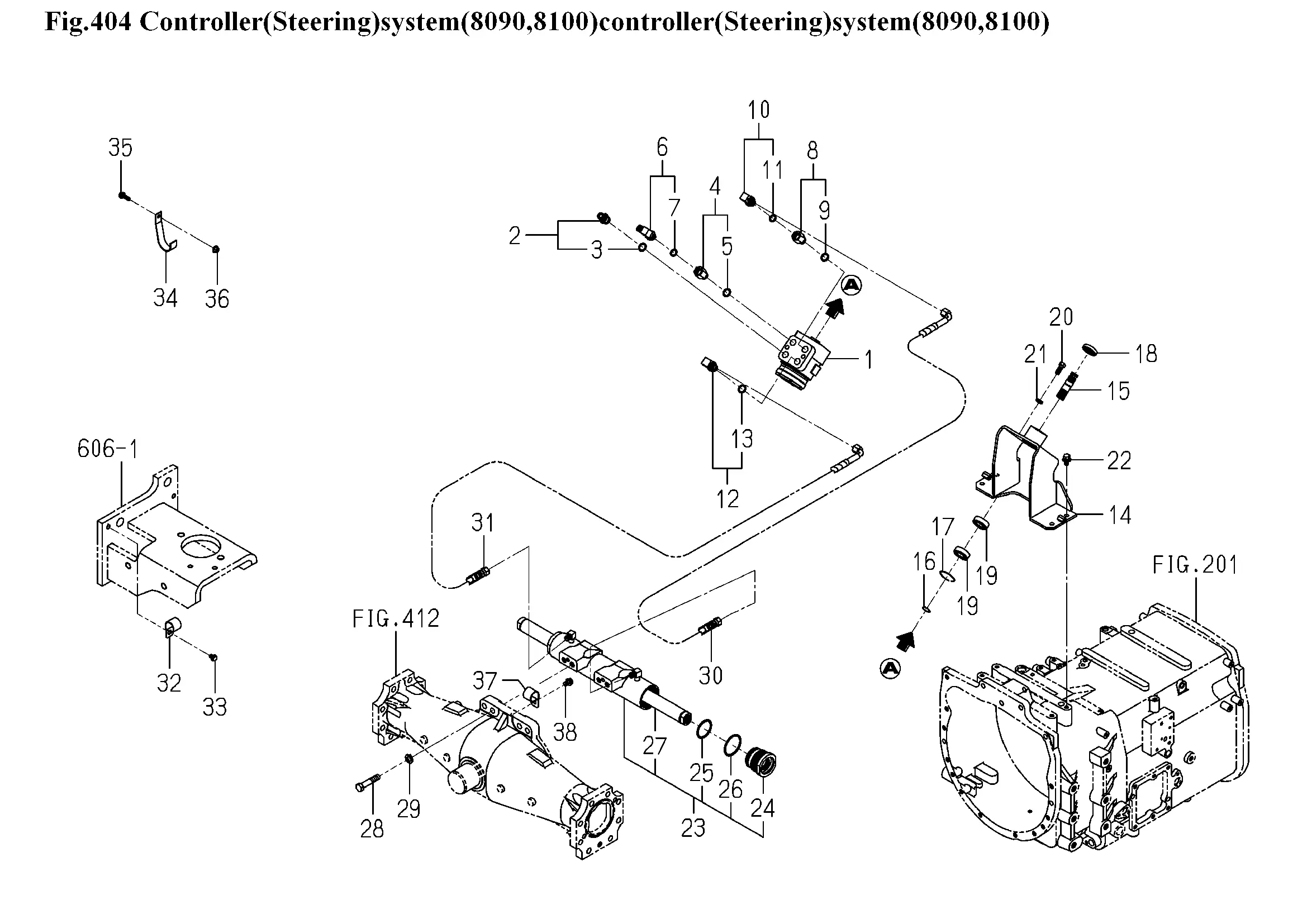

Lenkung, Zylinder, Pumpe, Leitungen
Ersatzteile (38 Teile)
1
Lenkorbitrol
2
1800-407-350-00
3
1757-509-452-00
4
1757-509-450-00
5
1757-509-452-00
6
ADAPTER/L/G3/8 ASSY
7
O-RING/1B,P14
8
1757-509-450-00
9
1757-509-452-00
10
ELBOW/90DEG ASSY
11
O-RING/1B,P14
12
1800-407-330-00
13
1757-509-452-00
14
1800-407-230-10
15
SHAFT
16
RING,SNAP/20 C
17
RING,SNAP/42 C
18
Wellendichtring
19
BEARING/BALL
20
Schraube M10x25 7T
21
WASHER,SP/M10
22
V211-661-002-00
23
Lenkzylinder kpl.
24
1791-407-450-00
25
O-RING/1B,G50 HS90
26
O-Ring G55
27
1791-407-460-00
28
1800-407-003-00
29
WASHER,SP/M14
30
1790-407-270-00
31
1790-407-290-00
32
CLIP B
33
V231-360-801-20
34
CLIP
35
FLANGEBOLT/M8X25
36
Kombimutter-M8
37
CLIP B
38
FLANGEBOLT/M8X16
