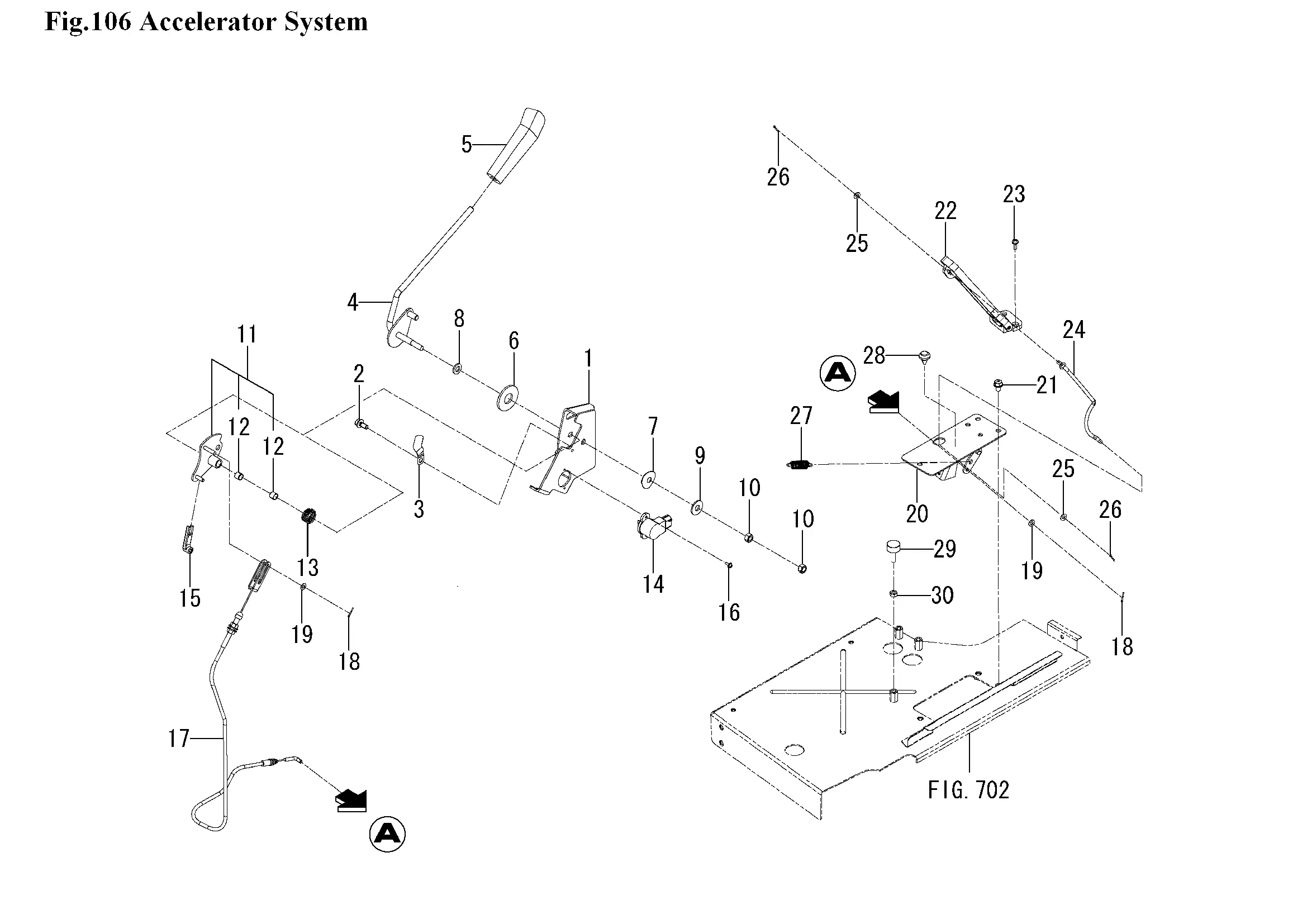

Gasbetätigung
Ersatzteile (30 Teile)
1
1800-116-230-10
2
FLANGEBOLT/M8X16
3
HOLDER/JE/9-9
4
1800-116-200-00
5
1646-116-051-10
6
1704-116-005-10
7
SPRING,DISK
8
1704-116-004-00
9
2130-713-002-10
10
NUT/M10
11
1800-116-210-00
12
BUSH/10X12X10
13
1800-116-001-00
14
3817-280-510-00
15
Arm, Sensor
16
SCREW,SP/M4X12
17
CABLE/ACCELERATOR
18
V500-162-001-50
19
V411-260-006-00
20
1800-116-260-00
21
V231-360-801-20
22
PEDAL ASSY
23
SCREW,SEMS/M6X16
24
ROD COMP
25
V411-260-006-00
26
V500-162-001-50
27
1703-505-007-00
28
RUBBER,CUSHION
29
INSULATOR
30
NUT/M8
