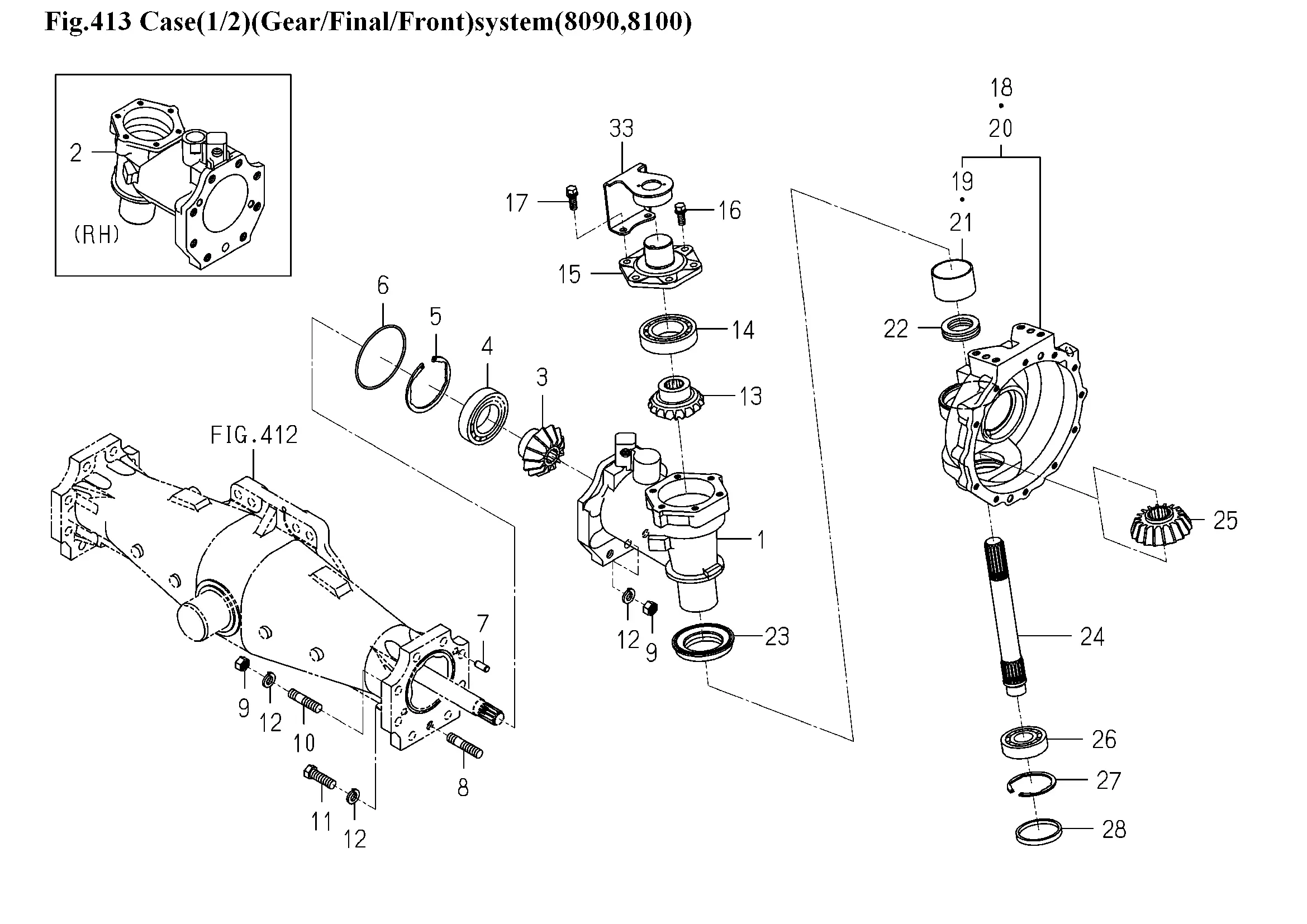

Achsschenkel, vorne
Ersatzteile (71 Teile)
1
1800-434-004-10
2
1800-434-005-10
3
1791-434-003-00
4
BEARING,RB/6210
5
V707-140-090-00
6
O-RING/1A,G105
7
PIN,ST,B/10X24
8
V251-341-404-50
9
1800-434-011-00
10
V251-341-404-00
11
V201-361-404-50
12
WASHER,SP/M14
13
1791-434-004-00
14
BEARING,RB/6210
15
1791-434-015-10
16
BOLT,S/M10X25/7T
17
V211-561-003-00
18
1791-434-220-10
19
1791-434-222-00
20
1791-434-230-10
21
1791-434-222-00
22
BEARING,TB/51108
23
Wellendichtring
24
1791-434-005-00
25
1791-434-006-00
26
V600-410-630-60
27
RING,SNAP/R72
28
PLUG/SEAL/72X08
29
PLUG/SCREW/SEAL
30
1791-434-200-10
31
Buchse 45x50x30
32
V580-140-602-20
33
1791-434-250-10
34
1791-434-210-10
35
Buchse 45x50x30
36
1444-501-004-10
37
NIPPLE/GREASE
38
PIN,ST,B/10X24
39
WASHER,SP/M14
40
STUD/M14X35/9T
41
NUT/M14/7T
42
1791-434-013-10
43
HUBBOLT/M16X55
44
GEAR/BEVEL/41-26
45
U-Scheibe, 45X66X03
46
U-Scheibe, 60x68x05
47
U-Scheibe, 55x69x03
48
Ring
49
Wellendichtring siehe 1521-433-018-00
50
Kugellager
51
Kugellager RB6017
52
BEARING/NEEDLE
53
1791-434-009-00
54
GEAR/SPUR/16
55
PIN/22X50
56
BEARING/NEEDLE
57
COLLAR/91X120X18
58
GEAR/SPUR/58
59
Stift / Pin
60
V211-560-804-50
61
V251-340-804-50
62
NUT/M8/7T
63
WASHER,SP/M8
64
COVER/WHEEL
65
PIN,ST,B/10X24
66
BOLT,S/M10X35/7T
67
V251-341-003-50
68
V304-460-010-00
69
WASHER,SP/M10
70
NIPPLE,GREASE/PT1/8
71
CAP,BLANK/M10
