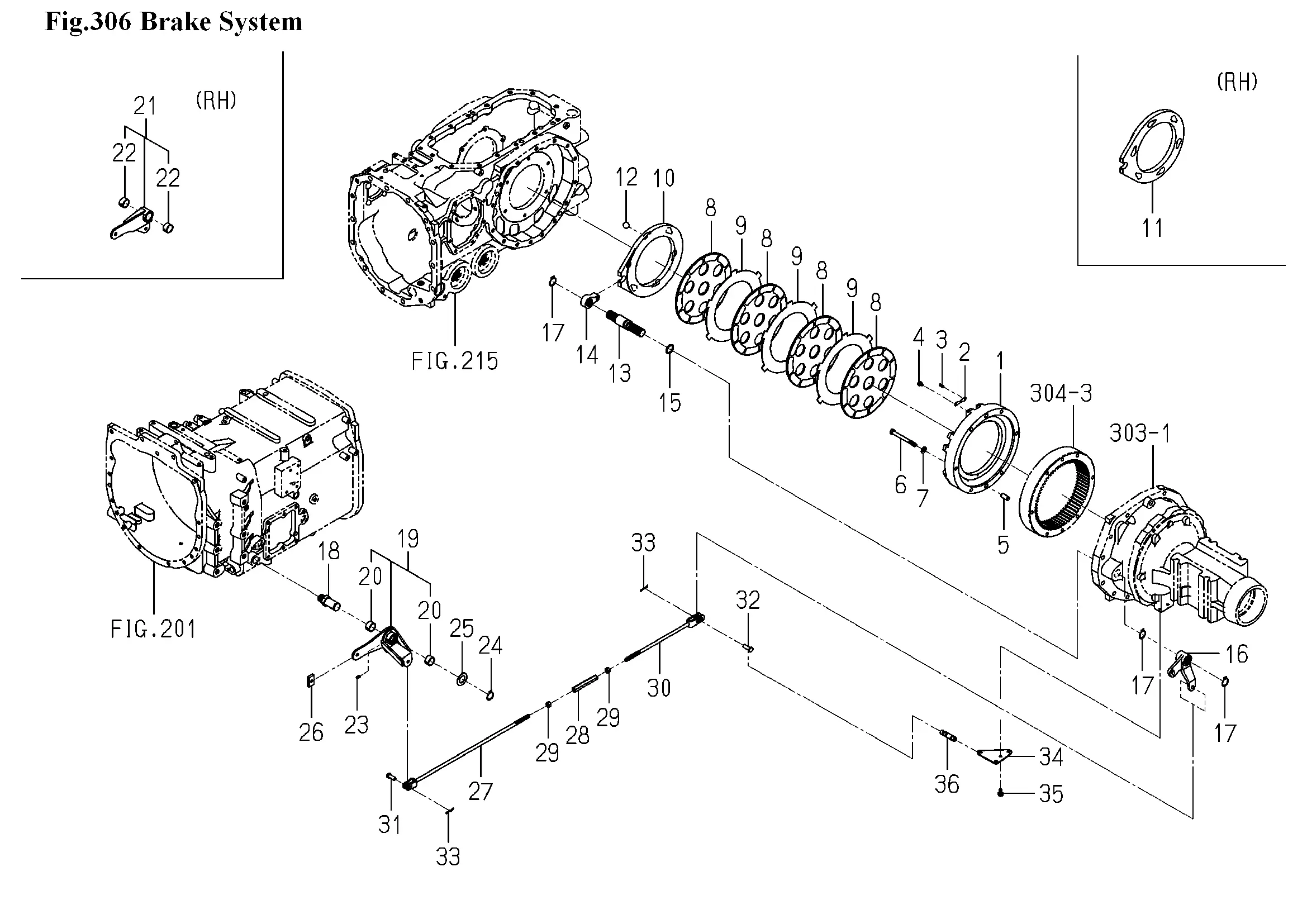

Bremse
Ersatzteile (36 Teile)
1
1800-310-006-20
2
PLATE
3
PIN,SPRING/5X16 W
4
FLANGEBOLT/M6X10
5
Stift / Pin
6
1800-307-005-00
7
3676-702-007-00
8
Bremsscheibe
9
Bremsplatte
10
PLATE/PRESSURE/RH
11
PLATE/PRESSURE/RH
12
Kugel
13
1800-310-007-10
14
CAM/BRAKE
15
O-RING/1A,P24
16
1807-310-001-00
17
RING,SNAP/25 C
18
1800-310-003-00
19
1800-310-300-10
20
BUSH/25X28X15
21
1800-310-320-00
22
BUSH/25X28X15
23
NIPPLE,GREASE
24
RING,SNAP/25 C
25
WASHER/25X43X02
26
1800-310-012-00
27
1800-310-340-00
28
1800-310-004-00
29
NUT/M10
30
Gestänge
31
PIN/10X25
32
1800-310-013-00
33
2161-222-003-00
34
1800-310-005-00
35
FLANGEBOLT/M8X16
36
SPRING/HE095
