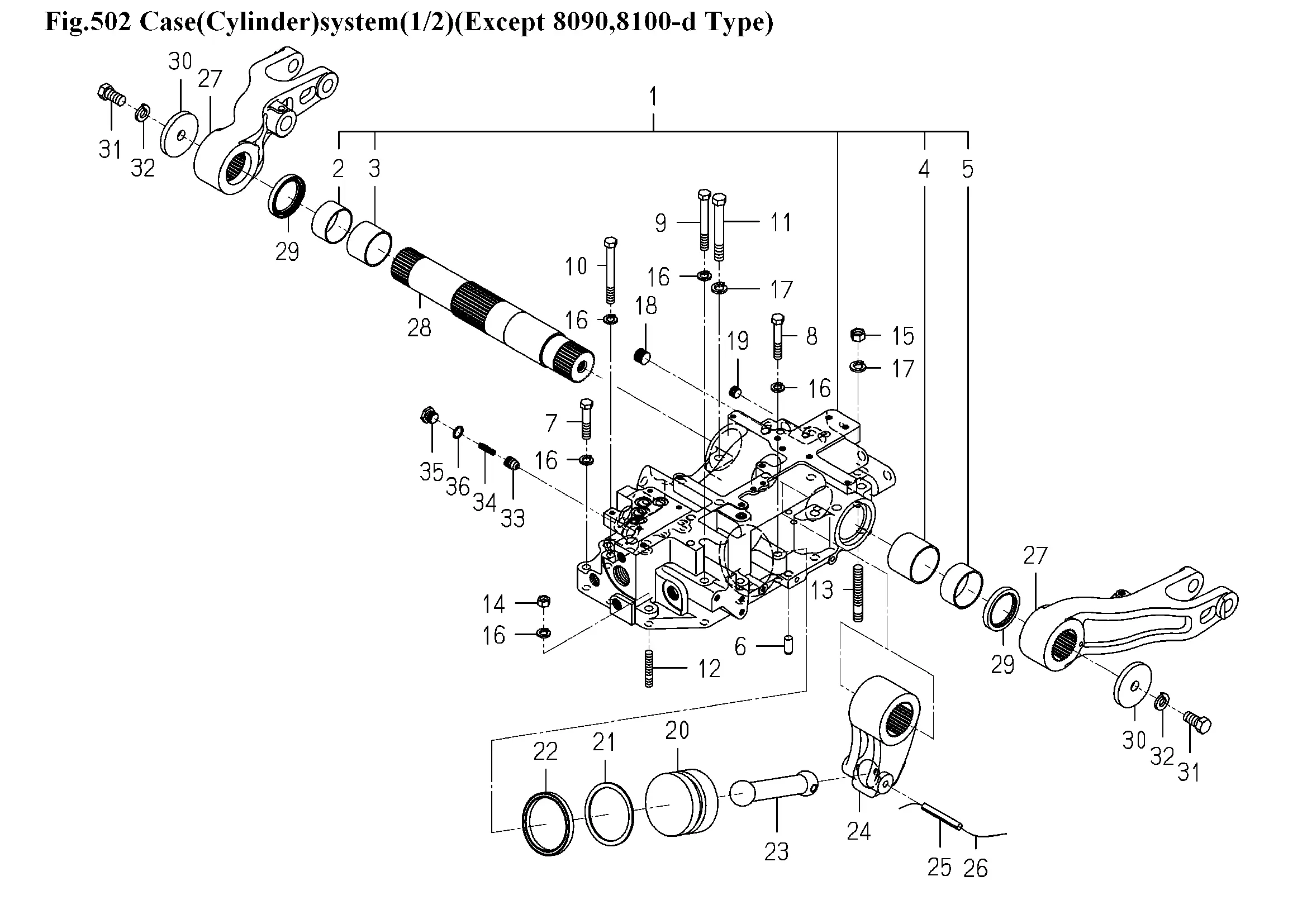

Heckhydraulik
Ersatzteile (56 Teile)
1
Getriebegehäuse
2
Buchse 55x60x30
3
1568-434-202-10
4
BUSH/60X65X50
5
Lagerbuchse 60x65x30
6
Stift / Pin
7
V201-361-206-00
8
V201-361-207-00
9
V201-361-210-00
10
V201-361-211-00
11
V201-361-411-00
12
V251-341-204-50
13
V251-341-408-00
14
V304-460-012-00
15
NUT/M14/7T
16
WASHER,SP/M12
17
WASHER,SP/M14
18
PLUG/PT1/2
19
PLUG/SCREW/SEAL
20
Kolben
21
Dichtung, 58x100x09
22
Stützring
23
1757-501-002-00
24
1790-501-005-00
25
1757-501-011-00
27
1790-501-007-00
28
SHAFT/LIFT
29
SEAL,OIL/TC55729
30
1432-503-004-00
31
V201-361-603-50
32
WASHER,SP/M16
33
K231-009-004-00
34
1757-501-013-00
35
K234-001-005-00
36
O-RING/1B,P16
37
ADAPTER/PF3/8 ASSY
38
O-RING/1B,P14
39
1800-501-300-10
40
1800-501-031-00
41
1800-501-310-10
42
1800-501-320-10
43
CLIP B
44
V231-360-801-20
45
Hydraulikzylinder
46
K182-108-001-00
47
SEAL/DUST/DKBI/40
48
PACKING. ROD
49
V707-140-055-00
50
STOPPER,PISTON
51
NIPPLE/GREASE
52
BUSH/25X28X25
53
1757-501-230-10
54
FLANGEBOLT/M8X16
55
PIN/25X75
56
BOLT/SM/M10X23
57
ADAPTER/90
