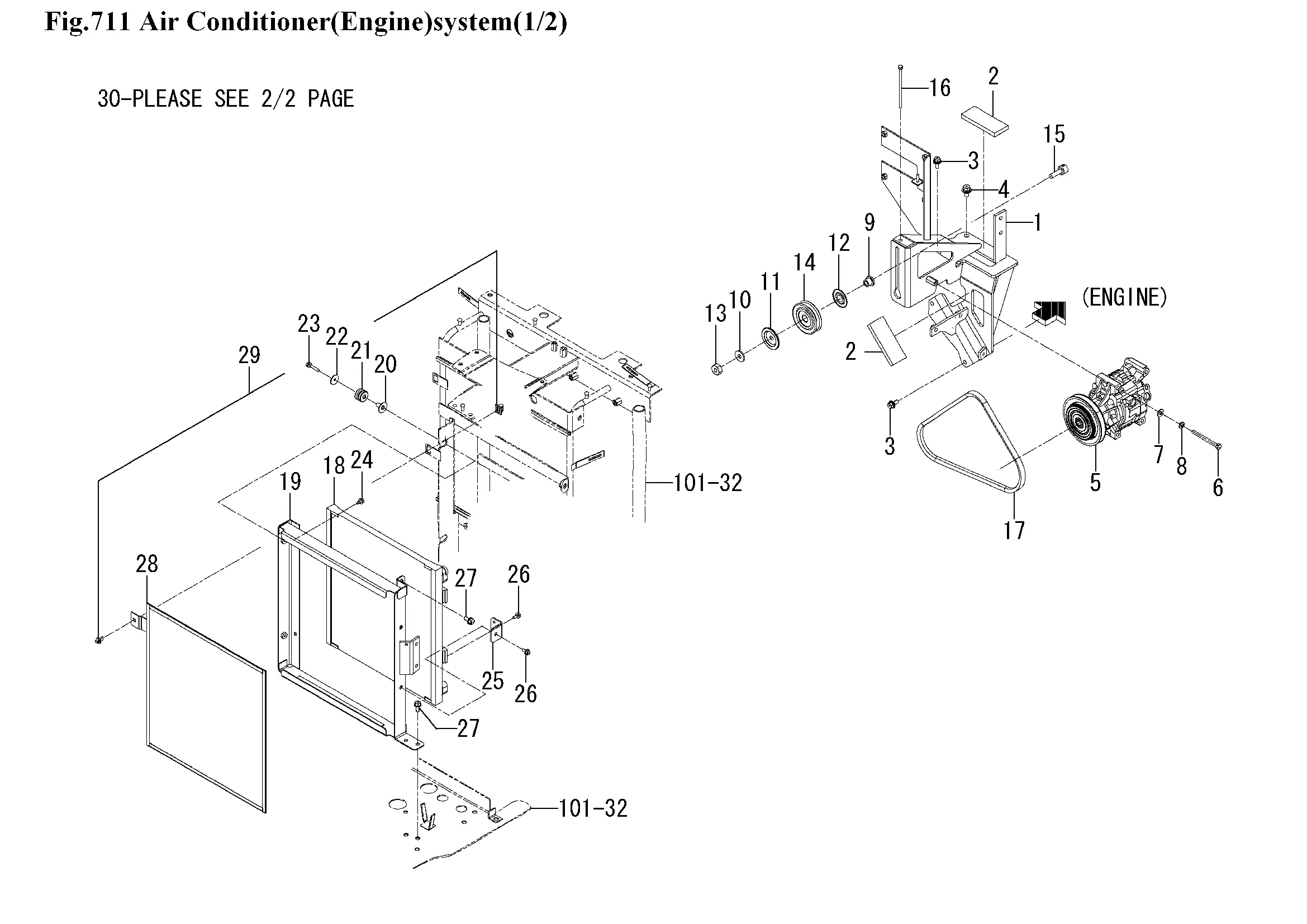

Klimaanlage I
Ersatzteile (59 Teile)
1
1800-780-210-20
2
1756-201-001-00
3
V211-660-802-00
4
V211-661-002-00
5
3824-248-990-20
6
V201-360-808-00
7
WASHER,PL/M8
8
WASHER,SP/M8
9
1599-782-531-10
10
WASHER/W
11
COVER/G1
12
COVER/G2
13
NUT
14
1599-782-540-10
15
SHAFT
16
BOLT/M06X110
17
Keilriemen, Klimaanlage
18
CONDENSER ASSY
19
1800-780-200-00
20
1757-780-003-00
21
1757-780-002-00
22
WASHER/6X24X2
23
V210-260-603-00
24
V210-360-601-20
25
1790-780-002-00
26
FLANGEBOLT/M6X12
27
FLANGEBOLT/M8X16
28
Gitter, Zwischenkühler
29
LATCH ASSY
30
RECEIVER/DRYER ASSY
31
1729-780-250-10
32
V210-360-602-00
33
3824-248-370-00
34
3824-248-372-00
35
PLUG
36
O-RING
37
V210-360-602-50
38
1800-780-220-00
39
O-RING
40
V210-360-602-50
41
V210-360-604-50
42
1790-780-510-10
43
O-RING
44
V210-360-602-50
45
V210-260-602-50
46
1800-780-240-00
47
1729-780-512-00
48
O-RING
49
PLUG
50
V210-360-604-50
51
1800-780-003-20
52
1800-102-009-00
53
1800-780-005-00
54
HOSE/HEATER/L/600
55
1800-780-007-00
56
CLIP/HOSE/18-22
57
J061-112-022-00
58
1342-402-006-00
59
1593-623-003-00
