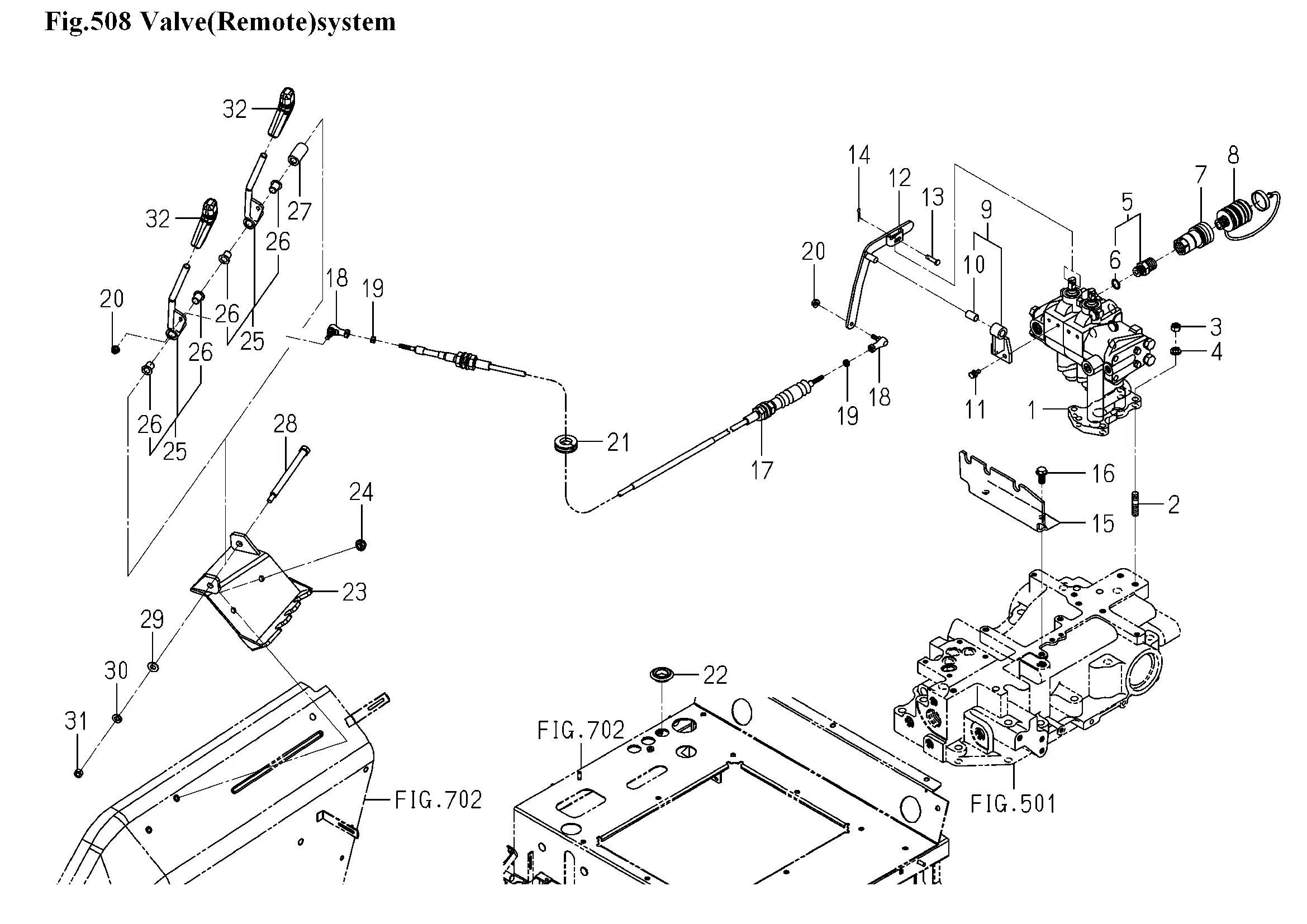

Zusatzsteuergerät
Ersatzteile (32 Teile)
1
K211-099-000-10
2
V251-361-003-0D
3
NUT/M10
4
WASHER,SP/M10
5
1757-511-250-00
6
O-RING/1A,P14
7
1757-511-200-00
8
1757-511-002-00
9
1790-511-210-00
10
BUSH/10X12X20
11
BOLT,S/M6X16/7T
12
1790-511-200-00
13
PIN/06X23
14
PIN/SNAP
15
1800-511-011-00
16
V231-361-002-00
17
Bowdenzug, Zusatzsteuergerät
18
JOINT/BALL/M06
19
V301-260-006-00
20
NUT/WASHER/M6
21
1719-266-053-00
22
CAP/30
23
1800-511-200-10
24
Kombimutter-M8
25
LEVER/SUBCON ASSY
26
BUSH/10X12X15
27
1757-511-004-10
28
1800-511-001-10
29
WASHER,PL/M8
30
WASHER,SP/M8
31
NUT/M8
32
GRIP/THROTTLE
