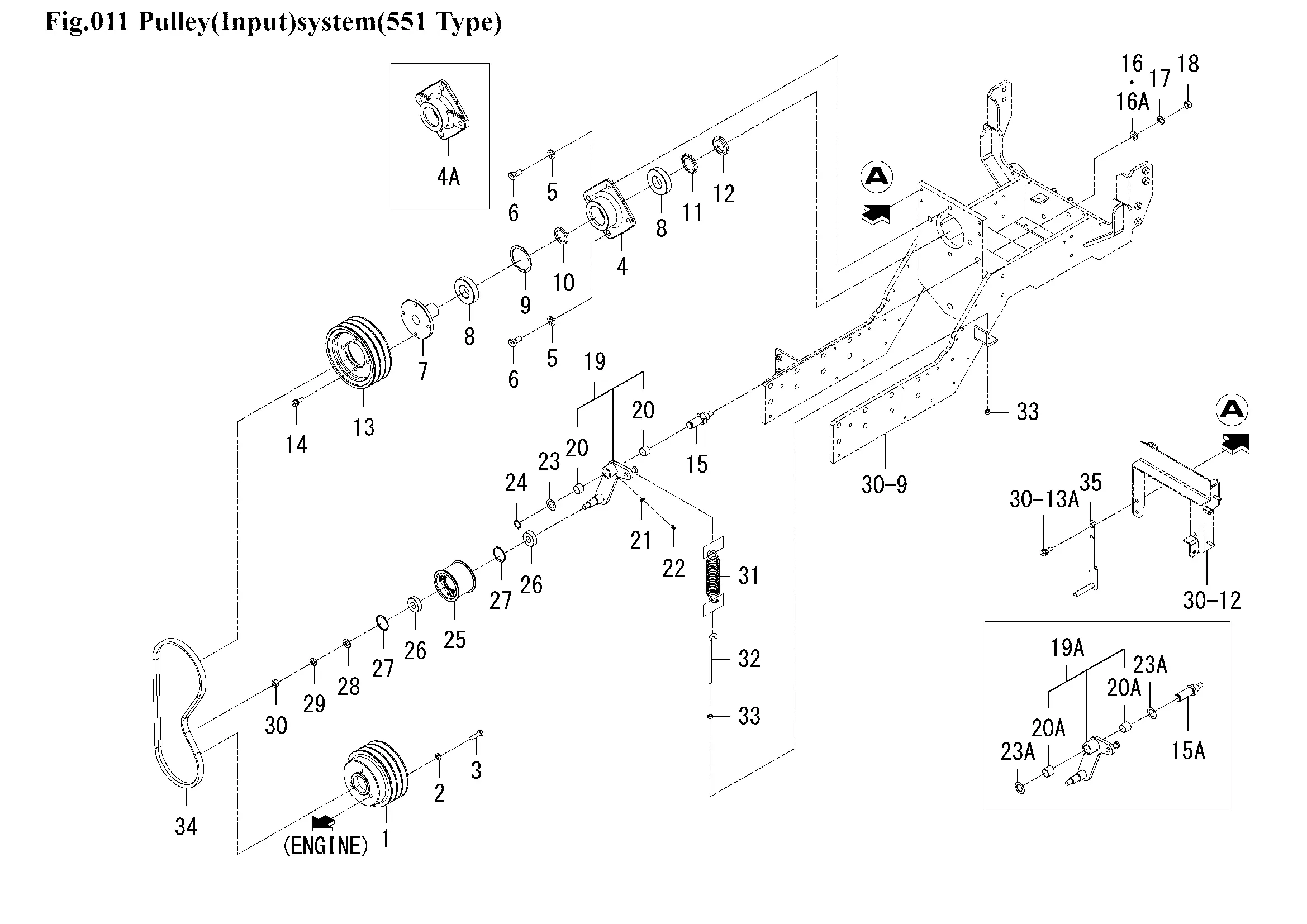

Antrieb, Spannarm
Ersatzteile (42 Teile)
1
PULLEY/V3B155
2
WASHER,SP/M10
3
BOLT/M10X30/7T,P1.25
4
METAL/PULLEY/551
4A
1809-120-065-10
5
WASHER,SP/M14
6
BOLT/M14X25/7T
7
SHAFT/PUMP/551
8
V600-150-620-70
9
RING,SNAP/R72
10
COLLOR/35X46X05
11
WASHER,ADAPTER/AW07
12
NUT,ADAPTER/AN07
13
PULLEY/V3B172
14
BOLT,S/M10X25/7T
15
1809-120-016-10
15A
PIN/TENSION
16
WASHER,SUPPORT
16A
V411-260-012-00
17
WASHER,SP/M12
18
V304-460-012-00
19
1809-120-250-10
19A
ARM/TENSION/551 ASSY
20
BUSH/20X23X15
20A
BUSH/20X23X20
21
V401-160-006-00
22
NIPPLE,GREASE
23
WASHER/20X32X01
23A
WASHER/20X32X01
24
RING,SNAP/20 C
25
PULLEY/FT80X57
26
BEARING/BALL
27
RING,SNAP/40 C
28
V411-260-012-00
29
WASHER,SP/M12
30
V304-460-012-00
31
SPRING/HE156
32
SCREW/M8X150
33
NUT/M8
34
Keilriemen
34
Keilriemen
35
GUIDE/BELT/551 COMP
