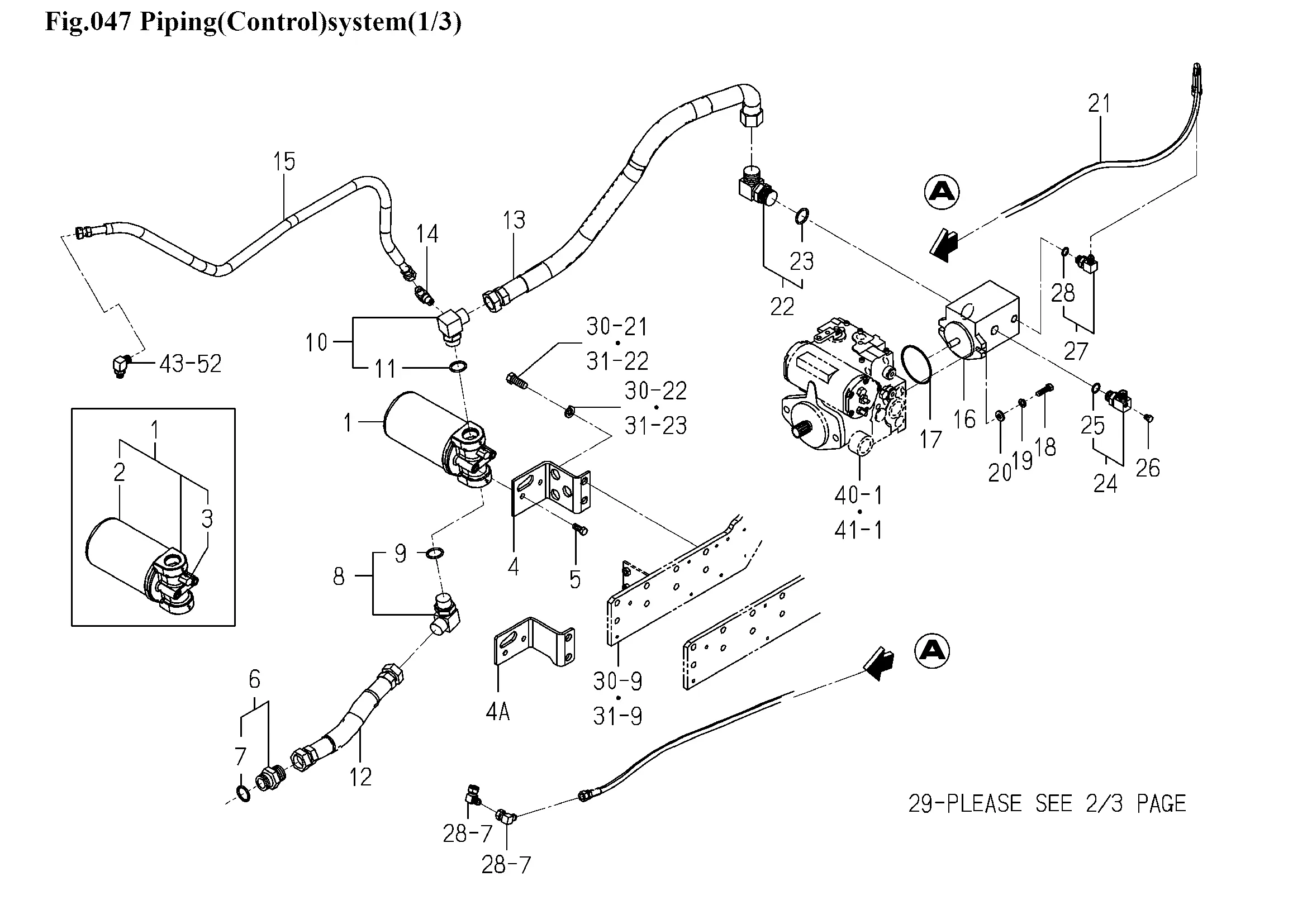

Hydraulikleitungen, -Ventile, -Pumpe
Ersatzteile (97 Teile)
1
FILTER/SUCTION/20
2
CARTRIDGE/20
3
SENSOR/FILTER
4
1809-509-062-00
4A
1809-509-062-10
5
V231-361-002-50
6
ADAPTER/G1XG1 ASSY
7
O-RING/1B,P29
8
ADAPTER/L/G1XG1 ASSY
9
O-RING/1B,P29
10
1809-509-660-10
11
O-RING/1B,P29
12
HOSE/MC-F ASSY
13
1809-509-620-00
14
ADAPTER/90
15
HOSE/1300 ASSY
16
PUMP/13X7 ASSY
17
RING/O/AS568-152
18
1809-509-004-10
19
WASHER,SP/M10
20
WASHER/11X22X03
21
1771-408-260-30
22
ADAPTER/L/G1XG1 ASSY
23
O-RING/1B,P29
24
1809-509-470-10
25
O-RING/1B,P18
26
PLUG/SCREW/SEAL
27
ADAPTER/1/4X3/8 ASSY
28
O-RING/1B,P14
29
K256-006-000-10
30
PLUG
31
O-RING/1B,P14
32
SPRING/HC042
33
PLUG/M18
34
O-RING/1B,P16
35
PLUG/SCREW/SEAL
36
ADAPTER/G3/8ASSY
37
O-RING/1B,P14
38
ADAPTER/L/G3/8 ASSY
39
O-RING/1B,P14
40
ADAPTER/PF3/8 ASSY
41
O-RING/1B,P14
42
1809-509-002-00
43
GASKET/REDUCE
44
PLUG/SCREW/SEAL
45
V201-360-807-5B
46
WASHER,SP/M8
47
O-RING/1B,P7
48
ADAPTER/L/PF1/4 ASSY
49
O-RING/1B,P11
50
1809-509-320-10
51
PIPE/A COMP
52
VALVE/LINEAR ASSY
53
BODY/VALVE/BLOWER
54
GASKET/REVERSE
55
ADAPTER/L/PF1/4 ASSY
56
O-RING/1B,P11
57
ADAPTER/L/G1/4 ASSY
58
O-RING/1B,P11
59
ADAPTER/G1/4XM1 ASSY
60
O-RING/1B,P11
61
PLUG/SCREW/SEAL
62
BOLT,S/M8X30
63
O-RING/1B,P7
64
1809-509-690-00
65
O-RING/1B,P11
66
V201-360-806-0B
67
WASHER,SP/M8
68
PIPE/HI COMP
69
PIPE/LOW COMP
70
1809-509-650-10
71
ADAPTER/PF1/4 ASSY
72
O-RING/1B,P11
73
ADAPTER/L/PF1/4 ASSY
74
O-RING/1B,P11
75
VALVE/FAN ASSY
76
1809-509-061-00
77
ADAPTER/L/PF3/8 ASSY
78
O-RING/1B,P14
79
1752-531-250-00
80
O-RING/1B,P14
81
ADAPTER/L/G3/8 ASSY
82
O-RING/1B,P14
83
3817-380-001-00
84
PLUG/SCREW
85
1809-509-008-00
86
8561-501-010-00
87
PIPE/FAN COMP
88
MOTOR/FAN ASSY
89
1809-509-401-00
90
1689-502-005-10
91
BOLT,S/M6X25/7T
92
O-RING/1B,P20
93
HOSE/500 ASSY
94
ADAPTER/90
95
1764-506-004-00
96
1342-402-006-00
