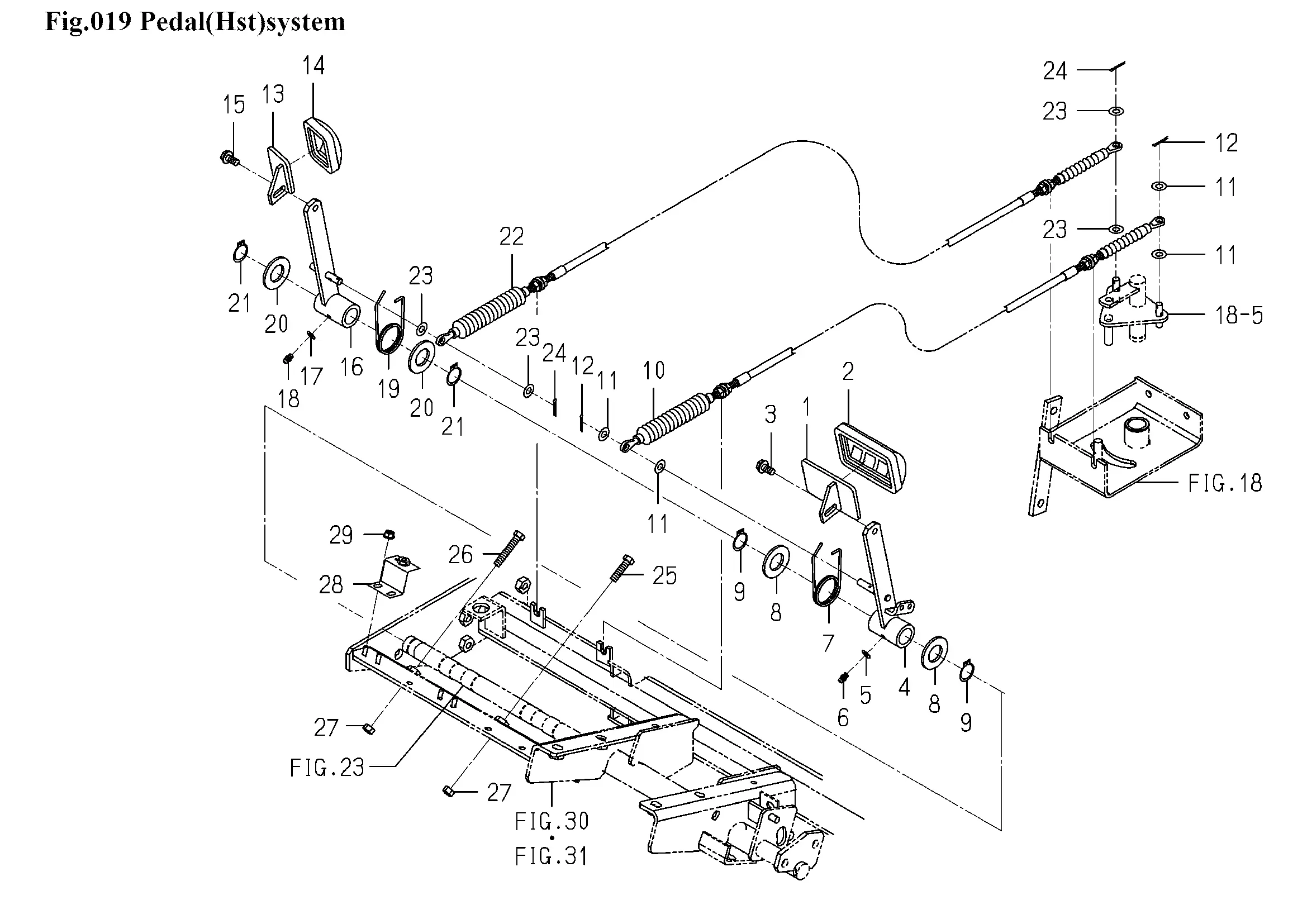

Hydrostatpedal
Ersatzteile (29 Teile)
1
PEDAL/HST/F COMP
2
PAD/HST
3
BOLT,SP/M8X16
4
1809-272-210-00
5
V411-260-006-00
6
NIPPLE,GREASE
7
SPRING/HT038
8
WASHER,PL/M22
9
RING,SNAP/22 C
10
CABLE/HST/F ASSY
11
WASHER,PL/M8
12
PIN,SPLIT/2.5X20
13
PEDAL/HST/RH COMP
14
PAD/HST/R
15
BOLT,SP/M8X16
16
1809-272-220-00
17
V411-260-006-00
18
NIPPLE,GREASE
19
SPRING/HT038
20
WASHER,PL/M22
21
RING,SNAP/22 C
22
CABLE/HST/F ASSY
23
WASHER,PL/M8
24
PIN,SPLIT/2.5X20
25
V201-360-803-00
26
V201-360-804-00
27
NUT/M8/7T
28
1809-272-250-10
29
NUT/WASHER/M6
