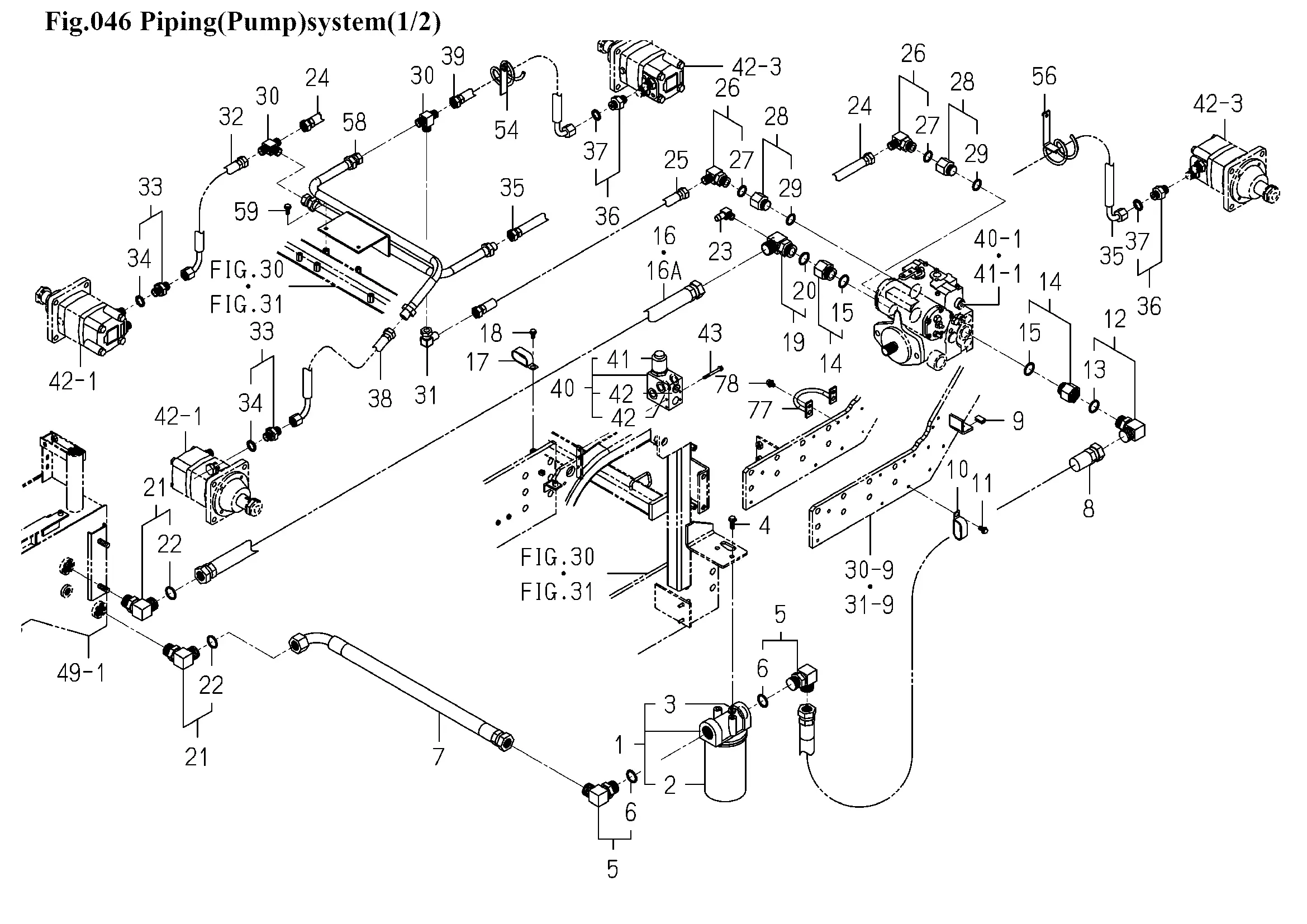

Hydraulikleitungen, -Filter
Ersatzteile (80 Teile)
1
FILTER/SUCTION/10
2
CARTRIDGE/10
3
SENSOR/FILTER
4
V231-361-002-50
5
ADAPTER/L/G1XG1 ASSY
6
O-RING/1B,P29
7
1809-508-220-10
8
1809-508-230-10
9
PAD/25
10
CLAMP/28X55
11
FLANGEBOLT/M8X16
12
ADAPTER/L/1X5/1 ASSY
13
RING/O
14
ADAPTER/1X5/16 ASSY
15
RING/O
16
1809-508-690-00
16A
1809-508-690-10
17
CLAMP/28X55
18
FLANGEBOLT/M8X16
19
ADAPTER/L/1X5/1 ASSY
20
RING/O
21
ADAPTER/L/G1XG1 ASSY
22
O-RING/1B,P29
23
ADAPTER/90DEG/3/8
24
1809-508-640-00
25
1809-508-670-00
26
ADAPTER/L/1X1/1 ASSY
27
1809-508-282-00
28
ADAPTER/1X1/16 ASSY
29
1809-508-282-00
30
ADAPTER/T/G1/2
31
1809-508-820-00
32
1809-508-650-00
33
ADAPTER/G1/2 ASSY
34
WASHER/SEAL/1/2
35
1809-508-790-00
36
ADAPTER/G1/2 ASSY
37
WASHER/SEAL/1/2
38
1809-508-660-00
39
1809-508-680-00
40
VALVE/CENTER ASSY
41
SOLENOID VALVE
42
CHECK VALVE
43
V230-360-606-00
44
ADAPTER ASSY
45
O-RING/1B,P18
46
ADAPTER/G1/4X9/16
47
1809-508-542-00
48
ADPTER/G1/4.1/4
49
O-RING/1B,P11
50
HOSE/HYDORAULIC/1500
51
1809-508-780-00
52
1809-508-620-00
52A
1809-508-620-10
53
1809-508-820-00
54
1809-508-630-00
55
FLANGEBOLT/M8X50
56
1809-508-810-00
57
FLANGEBOLT/M8X50
58
1809-508-610-00
59
V211-660-802-00
60
ADAPTER/G1/4
61
1809-508-006-00
62
ADAPTER/90/1/8X1/4
63
ADAPTER/T
64
1809-508-760-00
65
1809-508-770-00
66
HOSE/HYDRO/450 ASSY
67
INSULATOR
68
ADAPTER/G3/8ASSY
69
O-RING/1B,P14
70
ADAPTER/PF3/8 ASSY
71
O-RING/1B,P14
72
ADAPTER/G3/8 ASSY
73
O-RING/1B,P14
74
1593-623-003-00
75
CLAMP
76
1342-402-006-00
77
1809-508-830-00
78
BOLT,SP/M8X16
