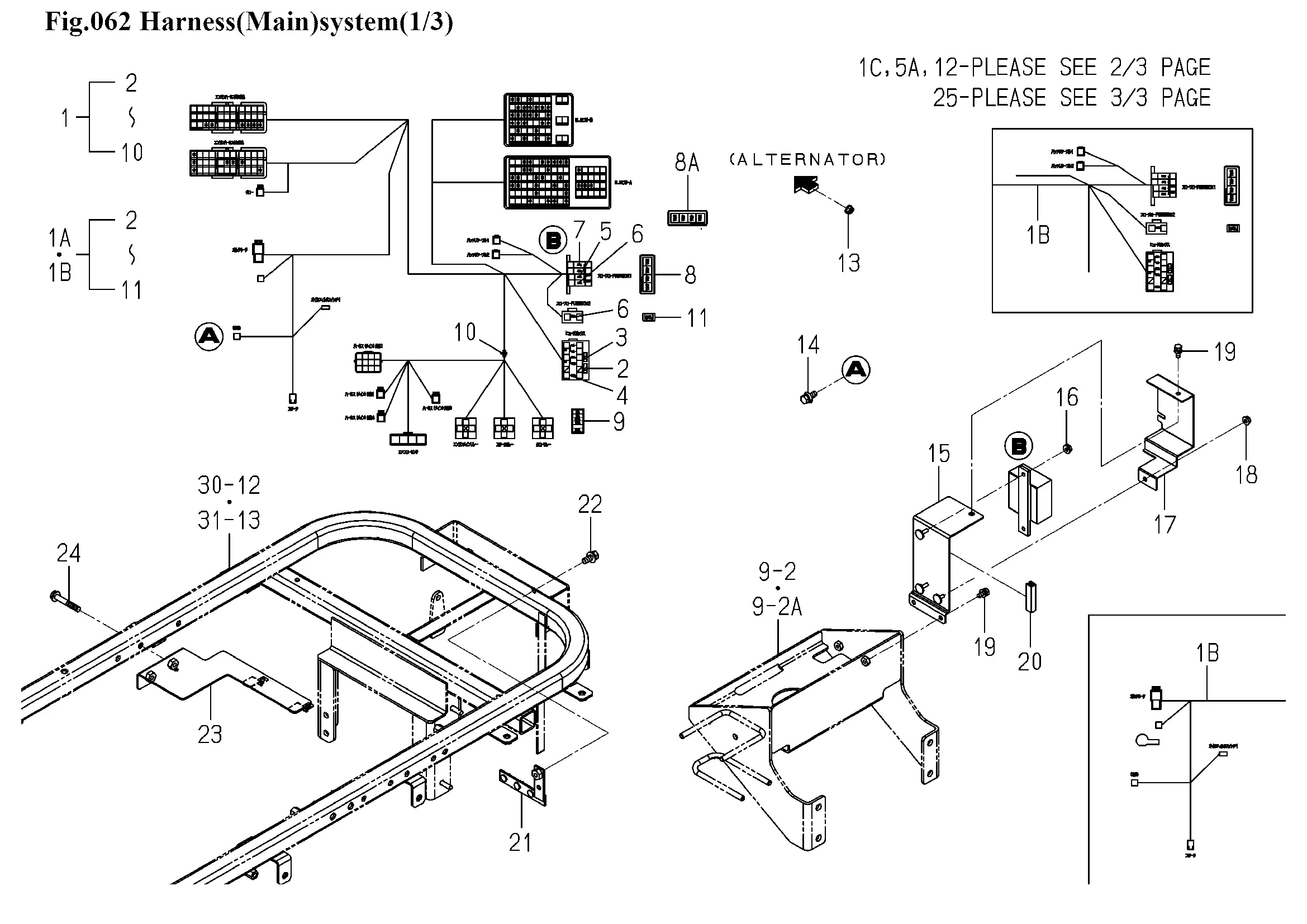

Kabelbaum Hauptversorgung
Ersatzteile (67 Teile)
1
1809-690-600-10
1A
1809-690-600-20
1B
HARNESS/ENGINE ASSY
1C
1809-690-600-40
2
FUSE/BLADE/32V05A
3
FUSE/BLADE/32V15A
4
FUSE/BLADE/32V30A
5
FUSE/SLOW BLOW/40A
5A
FUSE/SLOW BLOW/40A
6
FUSE/SLOW BLOW/50A
7
FUSE/SLOWBLOW/80A
8
1848-650-232-00
8A
1809-690-602-00
9
1817-650-443-00
10
1809-690-205-00
11
LABEL/SLOWBLOW/50A
12
FUSE/SLOWBLOW/40A
13
NUT/WASHER/M6
14
BOLT,SP/M8X20
15
1809-690-710-00
16
NUT/WASHER/M6
17
1809-690-061-10
18
NUT/WASHER/M6
19
BOLT,SP/M6X16
20
PAD/50
21
1809-690-720-00
22
BOLT,SP/M8X20
23
1809-690-730-10
24
FLANGEBOLT/M8X50
25
1809-690-610-10
25A
1809-690-610-20
25B
1809-690-610-30
25C
1809-690-610-50
26
1809-690-612-00
26A
1809-690-612-10
27
FUSE/BLADE/32V05A
27A
FUSE/BLADE/32V05A
28
FUSE/BLADE/32V10A
28A
FUSE/BLADE/32V10A
29
FUSE/BLADE/32V15A
29A
FUSE/BLADE/32V15A
30
FUSE/BLADE/32V20A
31
FUSE/BLADE/32V30A
32
DIODE/3.0A
33
DIODE/1.5A-3P ASSY
34
1725-690-071-00
34A
1725-690-071-00
35
1805-652-207-00
35A
1805-652-207-00
35B
1805-652-207-00
36
1809-690-205-00
36A
1809-690-205-00
37
1805-652-206-00
38
3890-261-202-00
38A
1800-652-202-00
39
TOOL/FUSE
40
COVER/FUSE
41
BOLT,SP/M8X20
42
BOLT,SP/M6X16
42A
V210-360-602-00
43
1817-652-001-10
44
SCREW,SP/M3X16
45
HOLDER/JE/9-9
46
1809-690-620-00
47
1342-402-006-00
48
BAND,WIRE/140
49
1560-666-004-00
