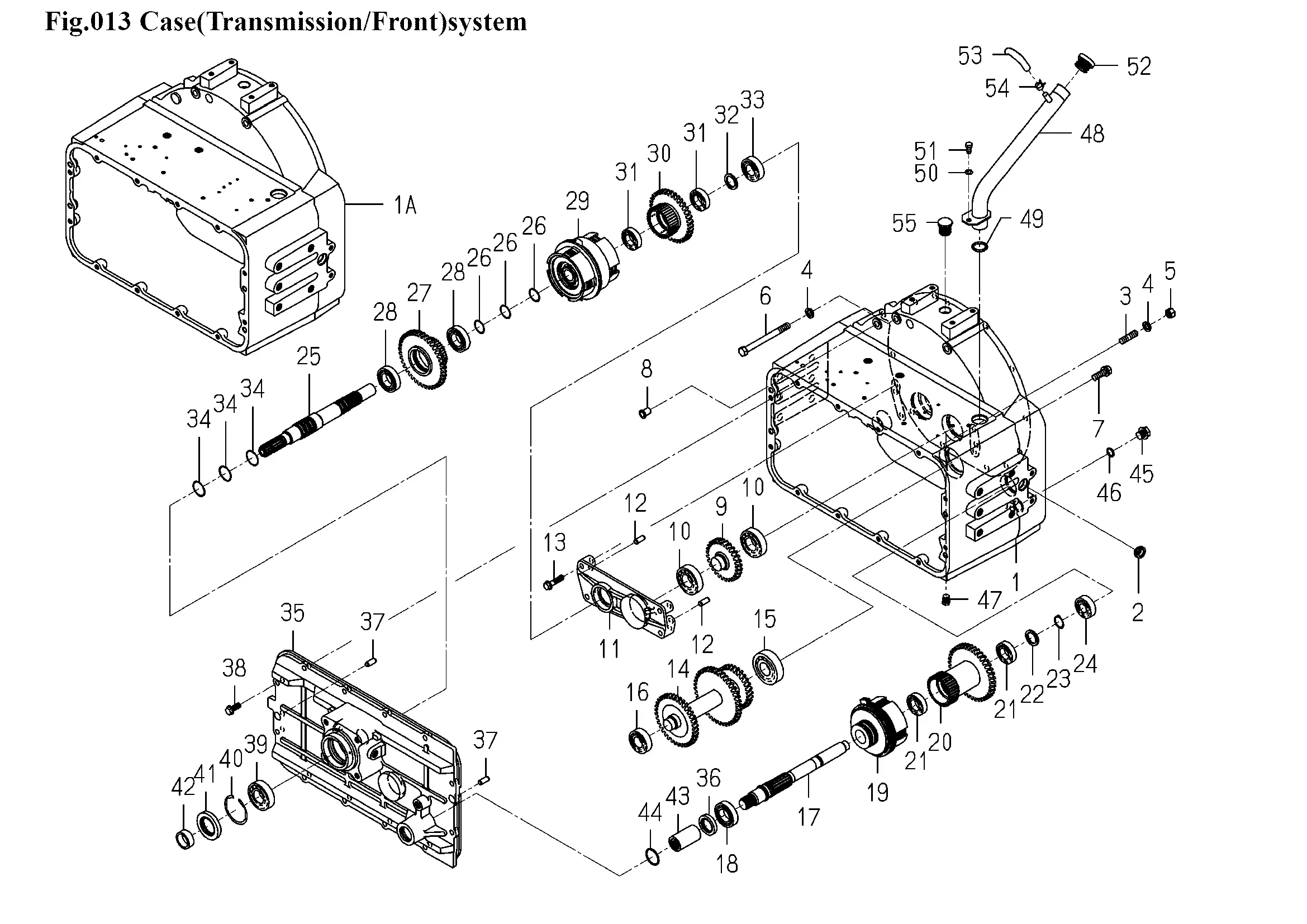

Getriebegehäuse
Ersatzteile (56 Teile)
1
1809-201-061-00
1A
1809-201-061-10
2
GAUGE/LEBEL
3
V251-341-203-00
4
WASHER,SP/M12
5
V304-460-012-00
6
BOLT/M12X130/7T
7
6901-931-235-00
8
CAP,BLANK/M14
9
GEAR/HELICAL/28
10
BEARING,RB/6206
11
1809-201-003-00
12
PIN,ST,B/10X24
13
V231-361-004-00
14
1809-201-210-00
15
BEARING,RB/6306
16
BEARING,RB/6205
17
SHAFT/PTO/SIDE
18
BEARING,RB/6006
19
CLUTCH/MOWER ASSY
20
GEAR/HELICAL/39
21
V600-110-600-50
22
COLLAR/26X35X03
23
RING/SNAP/CS25
24
V600-110-620-40
25
SHAFT/CENTER COMP
26
RING/30
27
GEAR/HELICAL/40
28
BEARING,RB/6006
29
1809-245-210-10
30
GEAR/HELICAL/36
31
V600-110-600-50
32
COLLAR/26X35X03
33
BEARING,RB/6205
34
RING/SEAL/35X02
35
COVER/MISSION/PTO
36
SEAL,OIL/TC30508
37
PIN,ST,B/10X24
38
V231-361-002-50
39
BEARING,RB/6206
40
RING,SNAP/R62
41
SEAL/OIL
42
SLEEVE
43
COUPLING/23X34X60
44
O-RING/1A,S34
45
PLUG,DRAIN
46
O-RING/1A,P16
47
PLUG/SCREW/SEAL
48
PIPE/FILLER/OIL COMP
49
O-RING/1A,P26
50
WASHER,SP/M8
51
V201-260-801-6B
52
CAP/OIL(30)
53
1716-501-006-10
54
J062-138-148-00
55
7963-208-004-00
