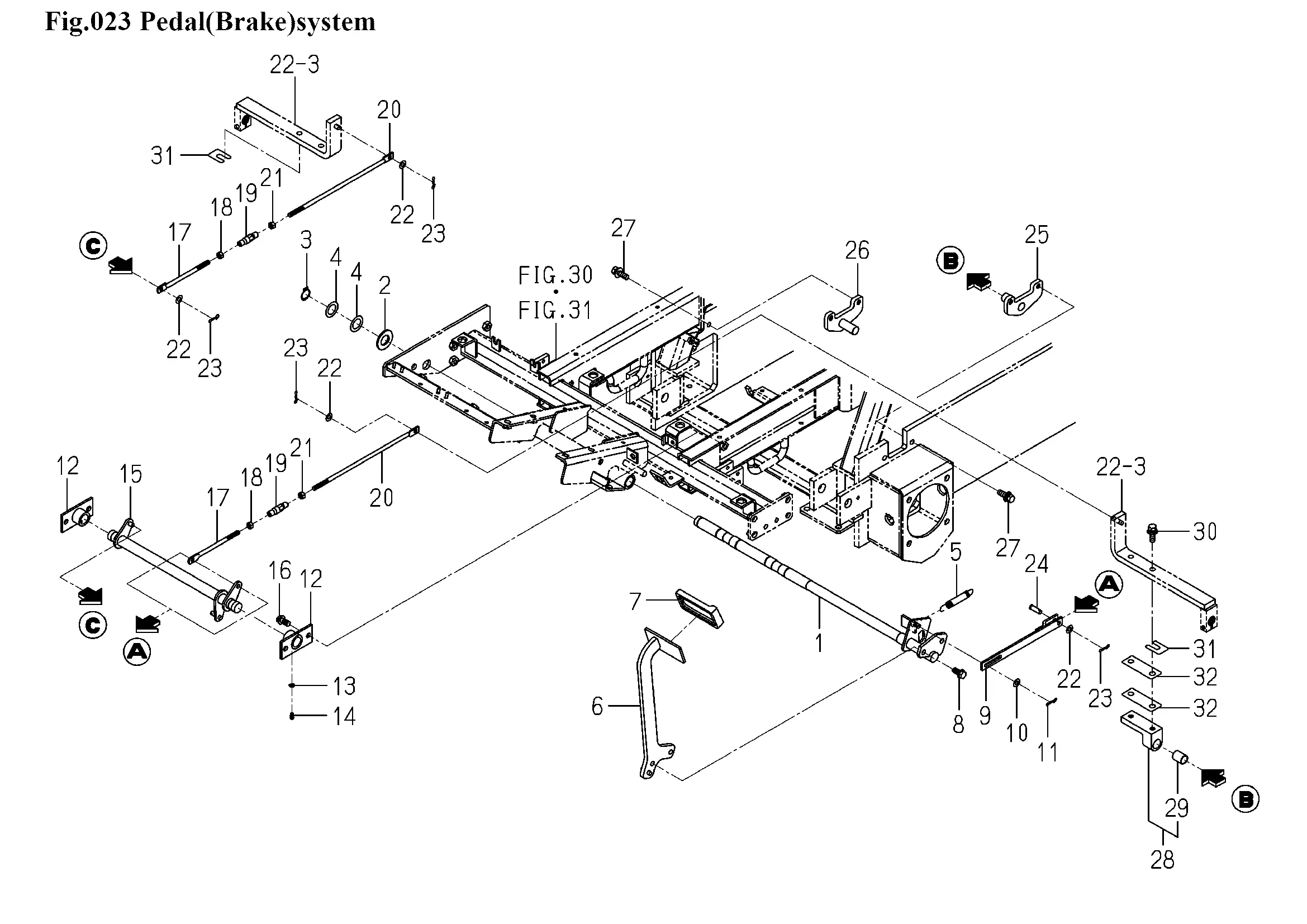

Feststellbremse, Fuß
Ersatzteile (32 Teile)
1
SHAFT/BRAKE COMP
2
WASHER,PL/M22
3
RING,SNAP/22 C
4
4319-312-003-00
5
SPRING/HE095
6
1809-312-220-10
7
1524-122-001-10
8
V231-361-002-00
9
1809-312-340-10
10
WASHER,PL/M8
11
PIN/SNAP/B
12
1809-312-290-00
13
V401-160-006-00
14
NIPPLE,GREASE
15
1809-312-280-00
16
V231-361-002-00
17
ROD/M08X140
18
NUT/LH/M08
19
TURNBUCKLE/M8
20
ROD/M8X300
21
NUT/M8
22
WASHER,PL/M8
23
PIN/SNAP/B
24
PIN/08X25
25
1809-312-270-00
26
1809-312-320-00
27
BOLT,SP/M10X30/7T
28
1809-312-330-00
29
BUSH/18X20X25
30
BOLT,SP/M10X30/7T
31
SHIM/0.6/B
32
1809-312-003-00
