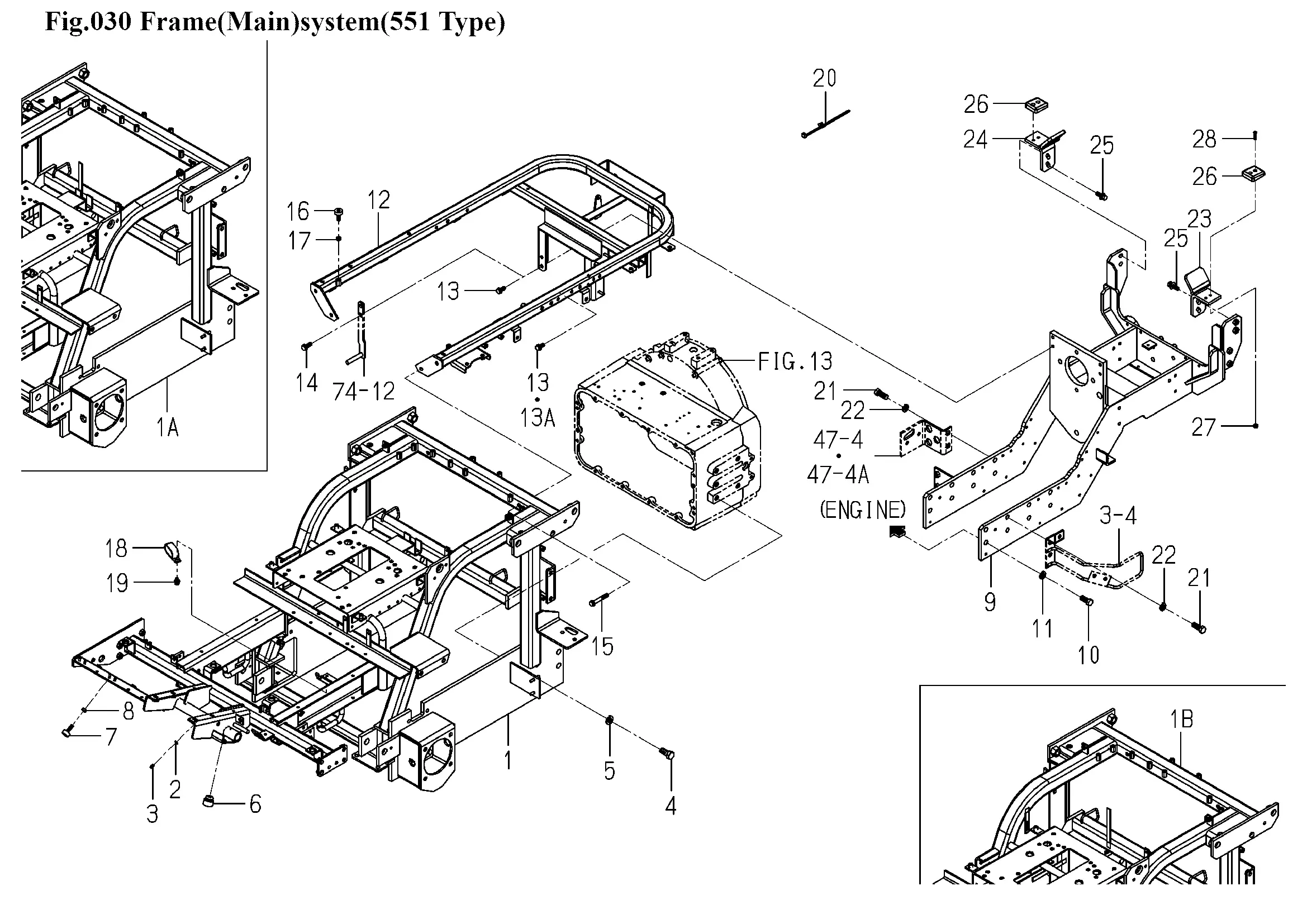

Rahmen
Ersatzteile (31 Teile)
1
1809-410-630-10
1A
1809-410-630-20
1B
FRAME/MAIN COMP
2
V411-260-006-00
3
NIPPLE,GREASE
4
V203-361-603-50
5
WASHER,SP/M16
6
GROMMET/10X30X5
7
INSULATOR
8
NUT/M8
9
1809-410-610-10
10
BOLT/M14X30/7T
11
WASHER,SP/M14
12
1809-410-620-20
13
V231-361-002-00
13A
V231-361-002-00
14
V231-361-002-50
15
V231-361-006-50
16
1421-602-005-10
17
NUT/M8
18
CLAMP/28X55
19
BOLT,SP/M8X16
20
1560-666-004-00
21
BOLT/M14X35/7T
22
WASHER,SP/M14
23
STAY/STOPPER/LH COMP
24
STAY/STOPPER/RH COMP
25
BOLT,SP/M10X30/7T
26
STOPPER/C
27
1118-606-002-10
28
SCREW/M6X25
