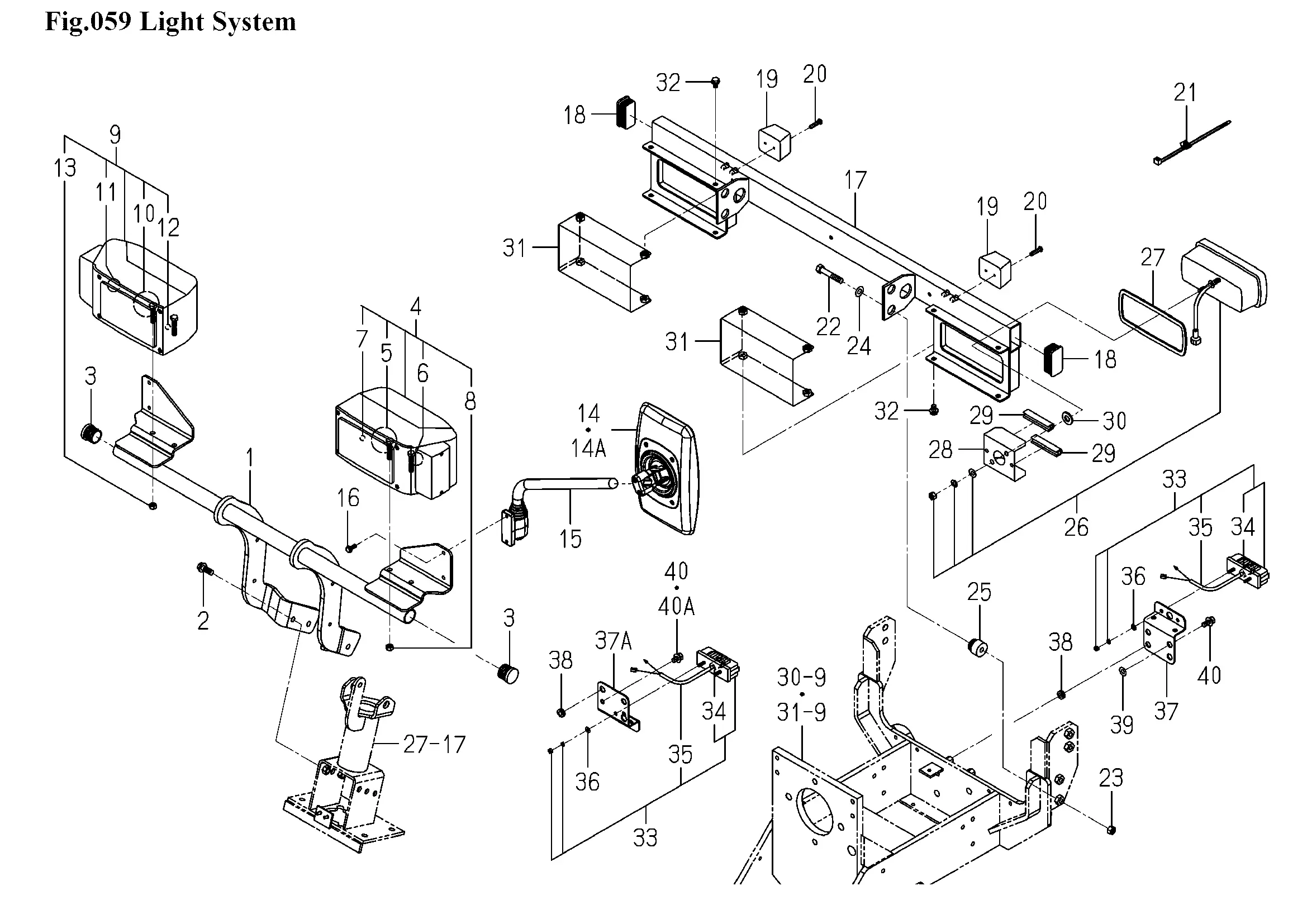

Beleuchtung
Ersatzteile (43 Teile)
1
STAY/LAMP/FRONT COMP
2
V231-361-002-50
3
CAP/PIPE
4
LAMP/HEAD/LH ASSY
5
1774-650-212-00
6
1772-654-216-00
7
1809-650-232-00
8
1809-650-233-00
9
LAMP/HEAD/RH ASSY
10
1774-650-212-00
11
1772-654-216-00
12
1809-650-232-00
13
1809-650-233-00
14
MIRROR ASSY
14A
1739-619-320-10
15
ARM/MIRROR ASSY
16
FLANGEBOLT/M6X16
17
BUMPER/REAR COMP
18
COVER/PIPE
19
STOPPER/B
20
V111-176-002-50
21
1560-666-004-00
22
BOLT/M10X55
23
NUT/M10
24
V411-260-010-00
25
GROMMET/10X30X5
26
LAMP/COMBINATION/REA
27
INSULATOR/LAMP
28
PLATE/U/70X85
29
TRIM/70
30
V411-260-012-00
31
COVER/LIGHT/REAR/RH
32
V231-360-801-20
33
LAMP/NUMBERPLAT SET
34
1674-654-271-00
35
HARNESS/LAMP
36
V411-260-005-00
37
STAY/NUMBERPLATE
37A
1809-650-061-00
38
GROMMET/9
39
WASHER,PL/M8
40
BOLT,SP/M8X20
40A
BOLT,SP/M8X16
