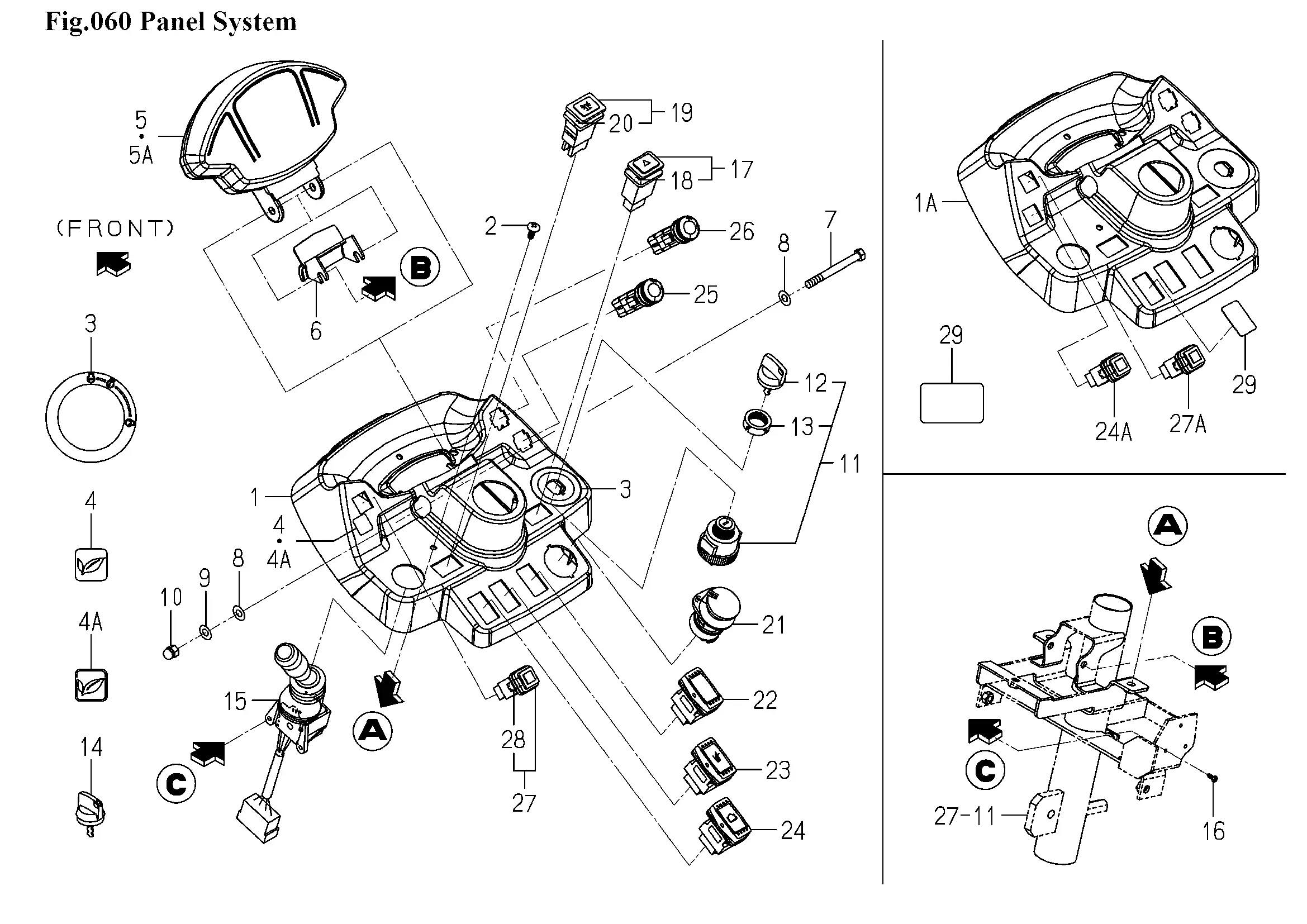

Instrumententafel, Schalter
Ersatzteile (34 Teile)
1
1809-670-061-00
1A
1809-670-061-10
2
SCREW/TRUSS/M06X16
3
1817-902-032-00
4
1809-902-061-00
4A
1809-902-061-10
5
PANEL/MONITOR
5A
1809-670-610-10
6
1809-670-062-00
7
BOLT/M8X80
8
WASHER,PL/M8
9
WASHER,SP/M8
10
2232-536-008-00
11
SWITCH/MAIN ASSY
12
KEY
13
NUT/RING
14
KEY
15
1774-680-260-00
16
1772-652-001-00
17
SWITCH/HAZARD ASSY
18
BULB/LAMP/14V60MA
19
SWITCH/BEACON ASSY
20
BULB/LAMP/14V60MA
21
SWITCH/PTO ASSY
22
SWITCH/PTO ASSY
23
SWITCH/LOWSPEED ASSY
24
SWITCH/LOWFULL ASSY
24A
1809-670-630-10
25
SWITCH/DPF ASSY
26
SWITCH/DPF/STOP ASSY
27
SWITCH,ALTERNATOR/G
27A
1809-670-620-00
28
BULB/LAMP/12V1W
29
LABEL/PANEL
