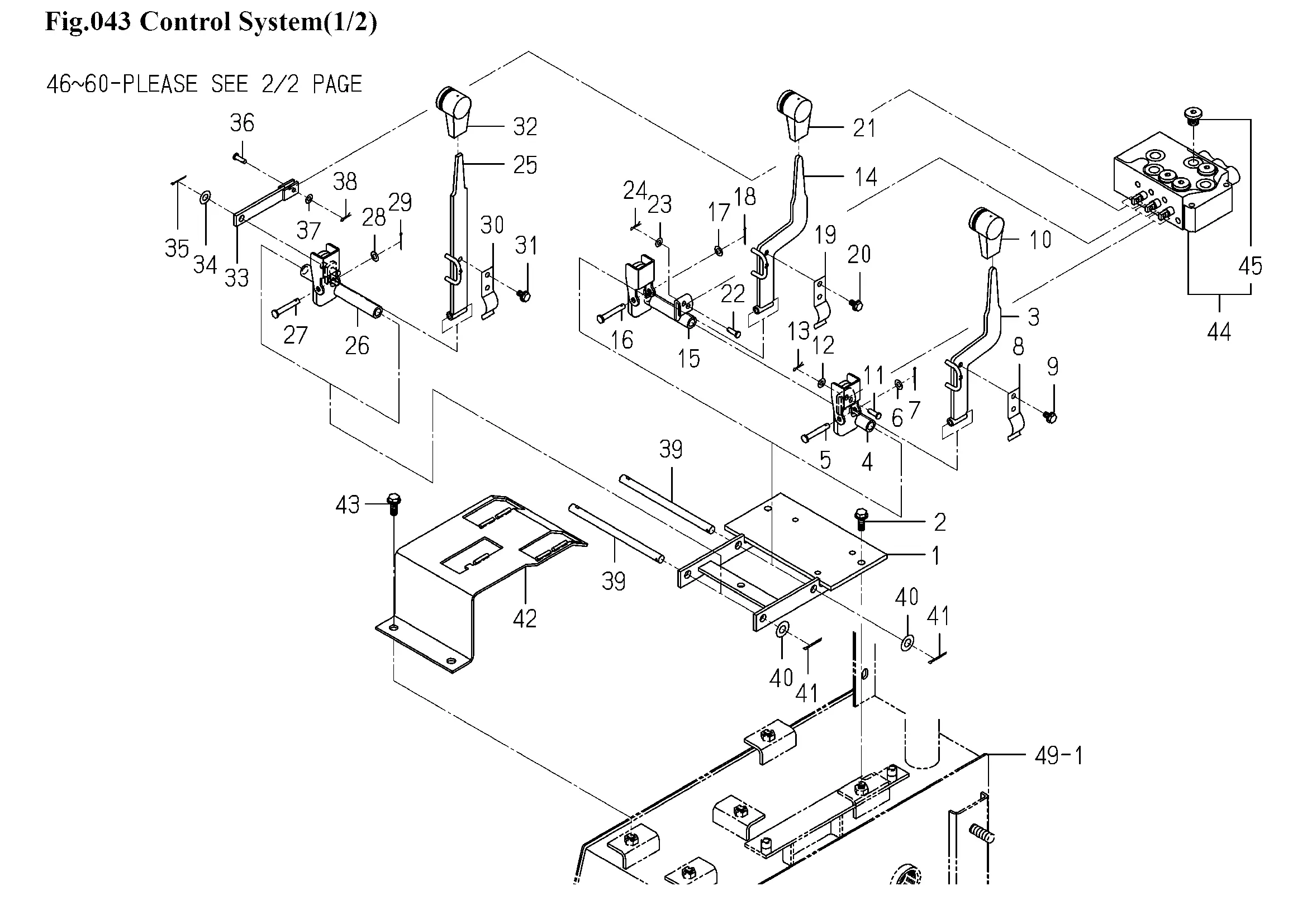

Hebel, Hydr. Steuergerät
Ersatzteile (71 Teile)
1
BRACKET/VALVE COMP
2
V231-360-802-00
3
1809-503-290-00
4
ARM/LIFT/COLLECTOR
5
PIN/6X42
6
V411-260-006-00
7
PIN,SPLIT/2X20
8
SPRING/PLATE
9
FLANGEBOLT/M6X10
10
GRIP
11
PIN/05X17
12
V411-260-005-00
13
PIN/SNAP
14
1809-503-290-00
15
ARM/DUMP/COLLECTOR
16
PIN/6X42
17
V411-260-006-00
18
PIN,SPLIT/2X20
19
SPRING/PLATE
20
FLANGEBOLT/M6X10
21
GRIP
22
PIN/05X17
23
V411-260-005-00
24
PIN/SNAP
25
LEVER/LIFT COMP
26
ARM/LIFT COMP
27
PIN/6X42
28
V411-260-006-00
29
PIN,SPLIT/2X20
30
SPRING/PLATE
31
FLANGEBOLT/M6X10
32
GRIP
33
1809-503-270-10
34
WASHER,PL/M8
35
PIN,SPLIT/2X20
36
PIN/05X17
37
V411-260-005-00
38
PIN/SNAP
39
PIN/10X148
40
V411-260-010-00
41
V500-162-502-50
42
1809-503-280-00
43
BOLT,SP/M8X20
44
1728-508-280-10
45
PLUG(PF1/4)
46
V210-360-603-50
47
V301-260-006-00
48
V210-360-602-00
49
HOSE/PS-P ASSY
50
ADAPTER/L/G1/4 ASSY
51
O-RING/1B,P11
52
ELBOW/90DEG ASSY
53
O-RING/1B,P11
54
ELBOW/90DEG/L ASSY
55
O-RING/1B,P11
56
ADAPTER/L/G1/4 ASSY
57
O-RING/1B,P11
58
HOSE/VT-TE ASSY
59
ADAPTER/T
60
HOSE/TE-MT ASSY
61
HOSE/TE-MC ASSY
62
1809-503-061-00
63
ADAPTOR(G3/8) ASSY
64
ADAPTER/G3/8
65
ADAPTER/G3/8ASSY
66
O-RING/1B,P14
67
ADAPTER/1/4X3/8 ASSY
68
O-RING/1B,P14
69
ELBOW/90DEG ASSY
70
O-RING/1B,P14
71
HOSE/HYDRO/1500 ASSY
