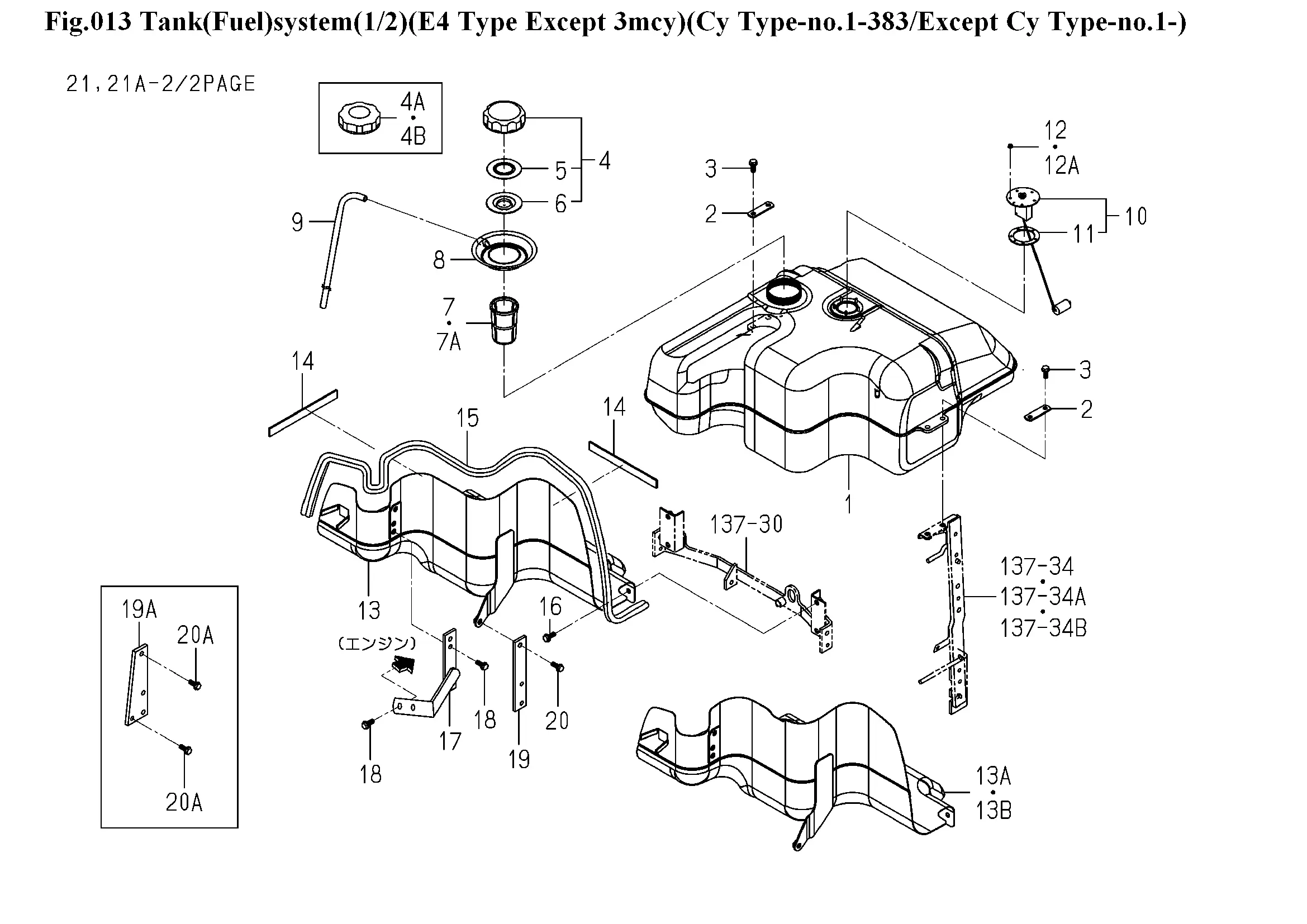

Tank FHMCYE4D/FH3MRE4/FQCYE4D/FQRE4D/FSDRE4 Type
Ersatzteile (61 Teile)
1
Tank
2
1729-111-007-00
3
V231-360-802-00
4
Tankdeckel
4A
1729-111-280-10
4B
1729-111-280-20
5
PLATE
6
PACKING
7
1729-111-006-00
7A
FILTER/FUEL
8
CUP/FUEL
9
HOSE/700
10
GAUGE/FUEL ASSY
11
PACKING/RUBBER
12
1617-730-005-00
12A
V360-260-004-00
13
1734-111-210-10
13A
1734-111-210-20
13B
1734-111-210-30
14
PLATE,RUBBER
15
1729-111-008-00
16
V231-360-802-00
17
1729-111-290-10
18
V231-360-802-00
19
1734-111-003-00
19A
1734-111-003-10
20
V231-360-802-00
20A
V231-360-802-00
21
Kraftstofffilter, kpl.
21A
Kraftstofffilter, kpl.
22
Hebel, Kraftstoffhahn
23
SEAL
24
1560-102-204-40
25
O-RING/1A,P21
26
1560-102-205-40
27
NUT,RING
28
O-RING/1A,G65
29
Kraftstofffilter
30
SPRING
31
O-RING/1A,P16
32
1513-102-332-00
33
V201-260-806-50
33A
BOLT/M8X80
34
WASHER,SP/M8
35
WASHER,PL/M8
36
PIPE
38
Schlauch 600
39
1650-111-034-00
40
CLIP/HOSE/14.7-15.9
41
HOSE/08X13X300
42
1650-111-034-00
43
Kraftstoffpumpe
44
FLANGEBOLT/M6X16
45
HOSE/06X10X365
46
1650-111-034-00
47
HOSE/FUEL/900 ASSY
48
J062-076-082-00
49
1744-111-210-20
49A
1744-111-210-30
50
FLANGEBOLT/M6X20
50A
FLANGEBOLT/M6X16
