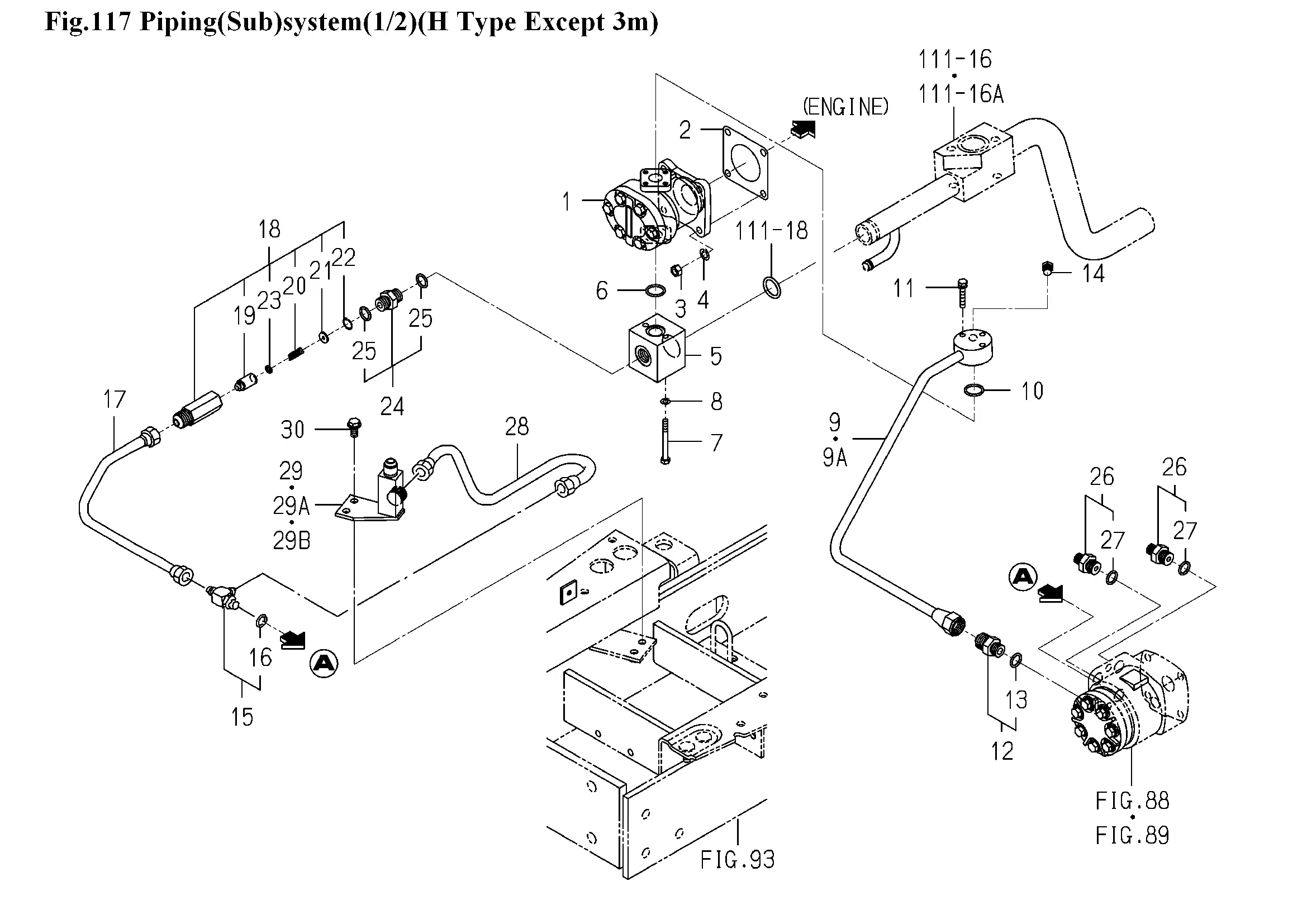

Hydraulikpumpe, Ölkühler (FHMCYE4D Type)
Ersatzteile (66 Teile)
1
Hydraulikpumpe
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
1744-509-001-00
6
O-RING/1B,P20
7
V200-360-607-00
8
V401-160-006-00
9
Hydraulische Lenkung
9A
1734-508-230-10
10
O-RING/1B,P20
11
BOLT,S/M6X35/7T
12
ADAPTER/PF3/8 ASSY
13
O-RING/1B,P14
14
PLUG/SCREW/SEAL
15
Adapter 3/8 T
16
O-RING/1B,P14
17
Rücklaufleitung
18
Rückschlagventil
19
Einsatz
20
SPRING/HC024
21
Scheibe 4/14/2
22
RING,SNAP/15 C
23
COLLAR/06X10X02
24
1656-509-300-00
25
O-RING/1B,P14
26
ADAPTER/PF3/8 ASSY
27
O-RING/1B,P14
28
1744-509-230-00
29
1646-407-590-10
29A
1646-407-590-20
29B
Adapter
30
FLANGEBOLT/M8X16
31
Hydraulikleitung
32
CONNECTOR
33
Ölkühler
33A
1646-407-560-10
33B
Ölkühler
34
Kombimutter-M8
35
CONNECTOR
36
Hydraulikleitung
37
1719-509-005-00
38
PAD/190
39
HOLDER/23
40
FLANGEBOLT/M8X16
41
Hydraulikleitung
42
Adapter
43
HOLDER/12
44
V231-360-801-20
45
Leitung, Hydraulikpumpe
46
ADAPTER/L/G3/4 ASSY
47
O-RING/1B,P24
48
1743-509-002-00
49
FLANGEBOLT/M8X16
50
HOLDER/12
51
V231-360-801-20
52
FILTER/CHARGE ASSY
53
Hydraulikfilter
54
FLANGEBOLT/M8X16
55
1743-509-003-00
56
FLANGEBOLT/M8X16
57
ADAPTER/L/G3/4 ASSY
58
O-RING/1B,P24
59
PIPE/HST COMP
60
ADAPTER/L/PF3/8 ASSY
61
O-RING/1B,P14
