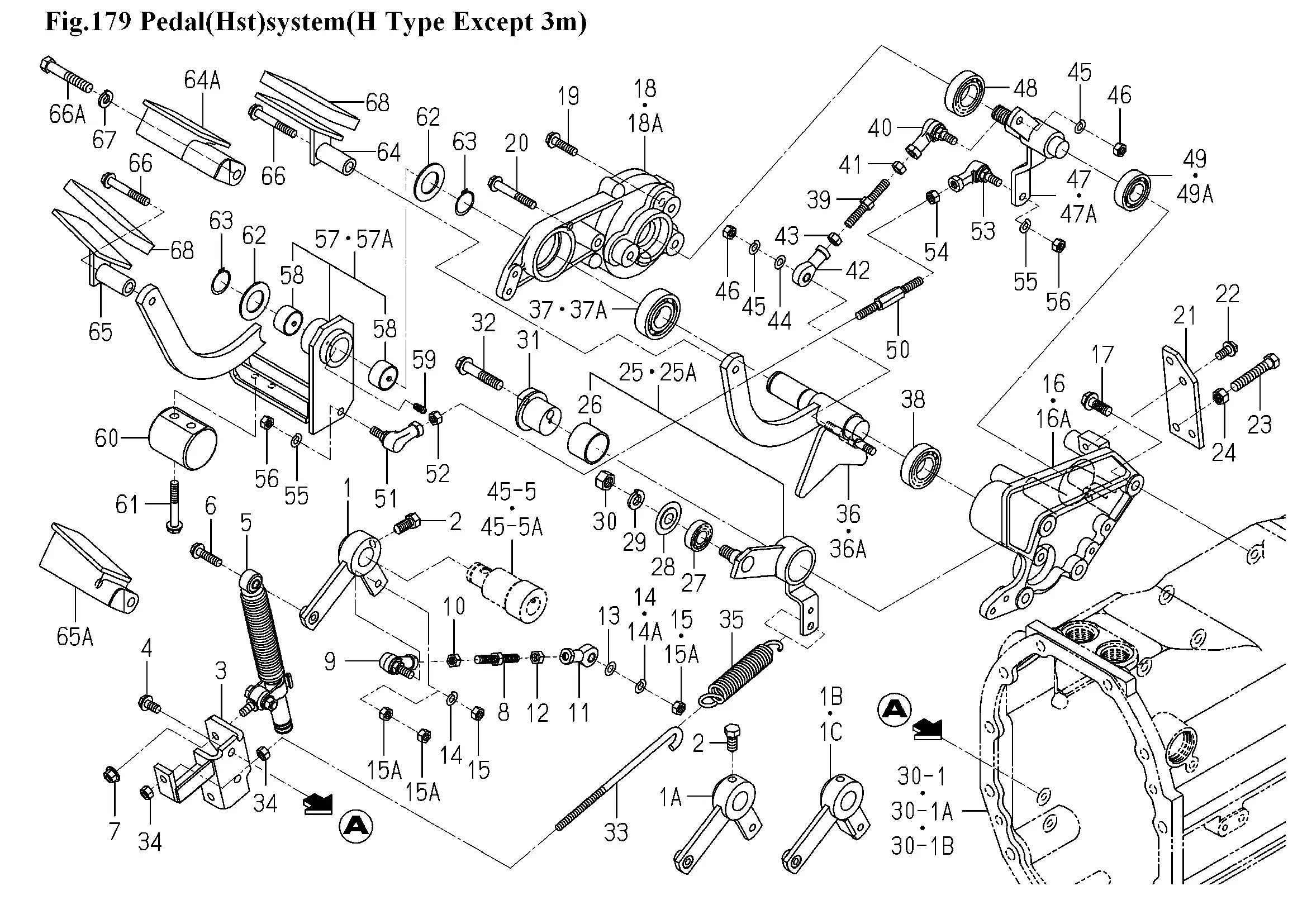

Pedal, Hydrostat (FHMCYE4D Type)
Ersatzteile (84 Teile)
1
1748-640-500-00
1A
1748-640-500-10
1B
Hebel
1C
1748-640-500-30
2
BOLT/SM/M10X23
3
1744-640-520-00
4
FLANGEBOLT/M8X16
5
DUMPER/OIL ASSY
6
V231-360-803-00
7
Kombimutter-M8
8
ROD/M08X64
9
1560-695-021-00
10
NUT/M8/7T
11
JOINT/BALL/M08/LH
12
NUT/LH/M08
13
WASHER/08X15.5X1.6
14
WASHER,SP/M8
14A
WASHER,SP/M8
15
NUT/M8
15A
NUT/M8
16
1743-640-052-00
16A
1743-640-052-10
17
V231-361-002-50
18
1743-640-053-00
18A
1743-640-053-10
19
V231-360-803-00
20
FLANGEBOLT/M8X55
21
1743-640-054-00
22
FLANGEBOLT/M8X16
23
W201-261-005-50
24
NUT/M10
25
Arm
25A
1743-640-540-10
26
Buchse 32x36x25
27
V600-350-600-20
28
WASHER/38X12X2
29
WASHER,SP/M12
30
NUT/M12
31
PIN/ADJUST
32
V231-361-005-00
33
Stange
34
NUT/M8
35
SPRING/HE122
36
Pedalarm
36A
1748-640-510-10
37
V600-450-620-50
37A
BEARING/BALL
38
V600-450-600-50
39
ROD/M08X64
40
1560-695-021-00
41
NUT/M8/7T
42
JOINT/BALL/M08/LH
43
NUT/LH/M08
44
WASHER/08X15.5X1.6
45
WASHER,SP/M8
46
NUT/M8
47
Welle
47A
1743-640-560-10
48
V600-450-600-50
49
V600-450-600-40
49A
BEARING/BALL
50
ROD/M08X92
51
1560-695-021-00
52
NUT/M8/7T
53
1560-695-022-00
54
NUT/LH/M08
55
WASHER,SP/M8
56
NUT/M8
57
1747-640-520-10
57A
ARM/HST/R ASSY
58
BUSH/25X28X15
59
NIPPLE,GREASE
60
1744-640-056-00
61
FLANGEBOLT/M8X55
62
WASHER/25X43X02
63
RING,SNAP/25 C
64
Pedal, HST, links
64A
Pedal, HST li verstärkt
65
Pedal, HST, rechts
65A
Pedal, HST re verstärkt
66
V231-361-005-50
66A
V201-361-006-00
67
WASHER,SP/M10
68
Pedalgummi
