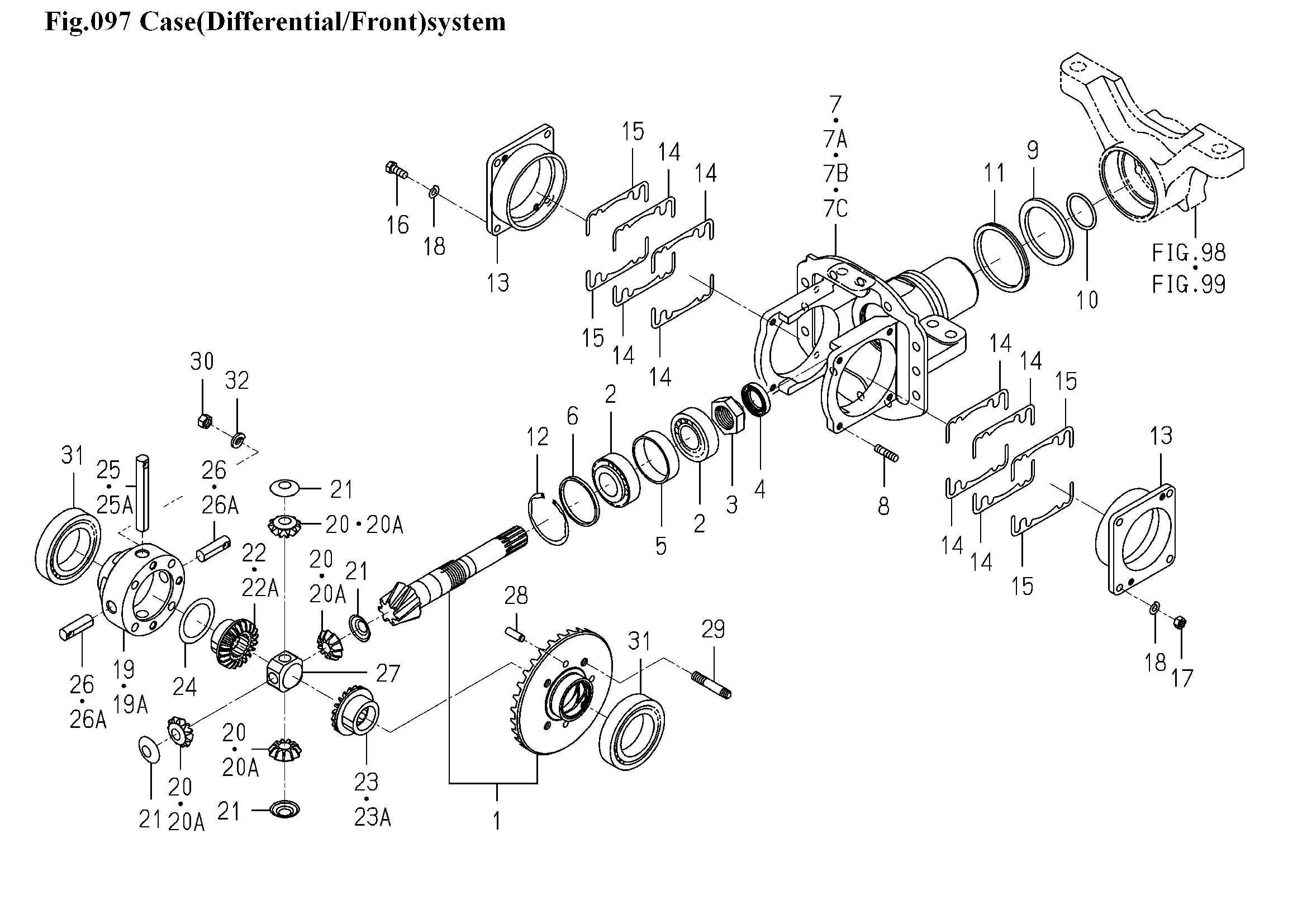

Differential, vorne
Ersatzteile (41 Teile)
1
Teller - Kegelradsatz
2
1502-432-002-00
3
NUT (30)
4
SEAL,OIL/TC25407
5
COLLAR 55X60X16
6
COLLAR/57X62X4
7
Differentialgehäuse
7A
1656-432-001-20
7B
1656-432-001-30
7C
1656-432-001-40
8
STUD/M8X20/7T
9
COLLAR,THRUST
10
O-RING/1A,P40
11
X-RING
12
RING,SNAP/R62
13
METAL/DIFF
14
SHIM (A)
15
SHIM (B)
16
V201-460-802-00
17
NUT/M8/7T
18
WASHER,SP/M8
19
Gehäuse
19A
1656-432-007-10
20
Kegelrad, Differenzialkorb/11Z
20A
PINION/DIFF/11
21
COLLAR,PINION THRUST
22
Kegelrad
22A
GEAR/BEVEL/20
23
Kegelrad, 20 Zähne
23A
1656-432-002-10
24
COLLAR/43X58X1
25
Achse
25A
Achse
26
Achse
26A
1488-411-007-10
27
HOLDER/SHAFT/DIFF
28
PIN,ST,B/8X24
29
BOLT/STUD/M10X47
30
NUT/SM/M10X1.25
31
BEARING,RB/6011
32
1656-432-006-00
