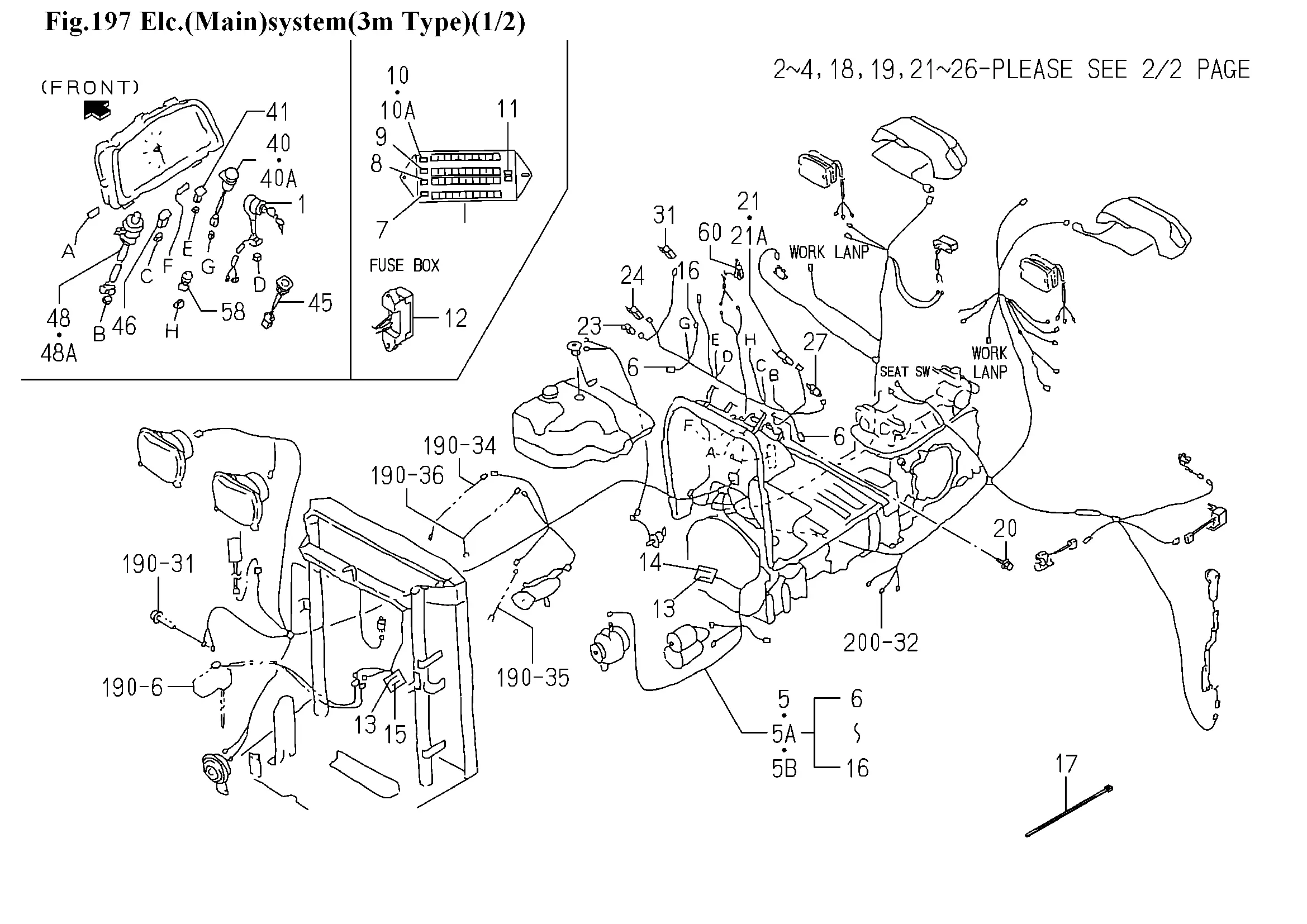

Schalter (FH3MCYE4D/FH3MRE4 Type)
Ersatzteile (80 Teile)
1
Zündschloss
2
RINGNUT
3
1729-652-273-00
4
KEY
5
HARNESS/MAIN/H3DE4
5A
1747-652-700-20
5B
1747-652-700-30
6
DIODE
7
FUSE/BLADE/32V20A
8
FUSE/BLADE/32V15A
9
FUSE/BLADE/32V10A
10
FUSE/BLADE/32V05A
10A
FUSE/BLADE/32V05A
11
TOOL/FUSE
12
COVER/FUSE
13
FUSE/SLOW BLOW/40A
14
FUSE/SLOW BLOW/60A
15
FUSE/SLOW BLOW/50A
16
Diode
17
1560-666-004-00
18
FLANGEBOLT/M6X16
19
3650-201-008-00
20
FLANGEBOLT/M6X16
21
1600-623-002-00
21A
1600-623-002-10
22
FLANGEBOLT/M6X16
23
Relais Motorstart
24
Relais blau, 4-pol., ACA 22135 C02 60316
25
Buchse 07x11x20
26
FLANGEBOLT/M6X35
27
Relais Motorstart
28
Relais Motorstart
29
Buchse 07x11x20
30
FLANGEBOLT/M6X16
30A
FLANGEBOLT/M6X35
31
Relais Motorstart
32
FLANGEBOLT/M6X16
33
1747-652-800-00
34
NUT/WASHER/M6
35
Relais blau, 4-pol., ACA 22135 C02 60316
36
BOLT,SP/M6X16
37
3908-310-220-10
38
1746-652-420-00
39
FLANGEBOLT/M6X16
40
Schalter, PTO
40A
1742-652-300-20
41
SWITCH/ALTERNAT ASSY
42
BULB/LAMP/12V1W
43
Aufkleber, PTO
44
Widerstand
45
SWITCH ASSY
46
SWITCH/HAZARD ASSY
47
BULB/LAMP/14V60MA
48
Kombischalter, Blink,Licht,Hupe
48A
SWITCH/COMBINATION/E
49
Kombischalter, Blink,Licht,Hupe
50
1544-623-232-00
51
LEVER
52
KNOB
53
BOOT/HORN
54
1544-623-232-00
54A
1738-680-211-00
55
LEVER
55A
1738-680-212-00
56
KNOB
57
BOOT/HORN
58
Schalter
59
1746-652-005-00
60
SWITCH,STOP
61
NUT,LOCK
62
1746-652-004-00
62A
1746-652-004-10
63
FLANGEBOLT/M8X16
64
Kappe
65
BAND,WIRE/140
66
1342-402-006-00
67
1560-666-004-00
68
BUZZER
69
FLANGEBOLT/M6X16
70
NUT/WASHER/M6
