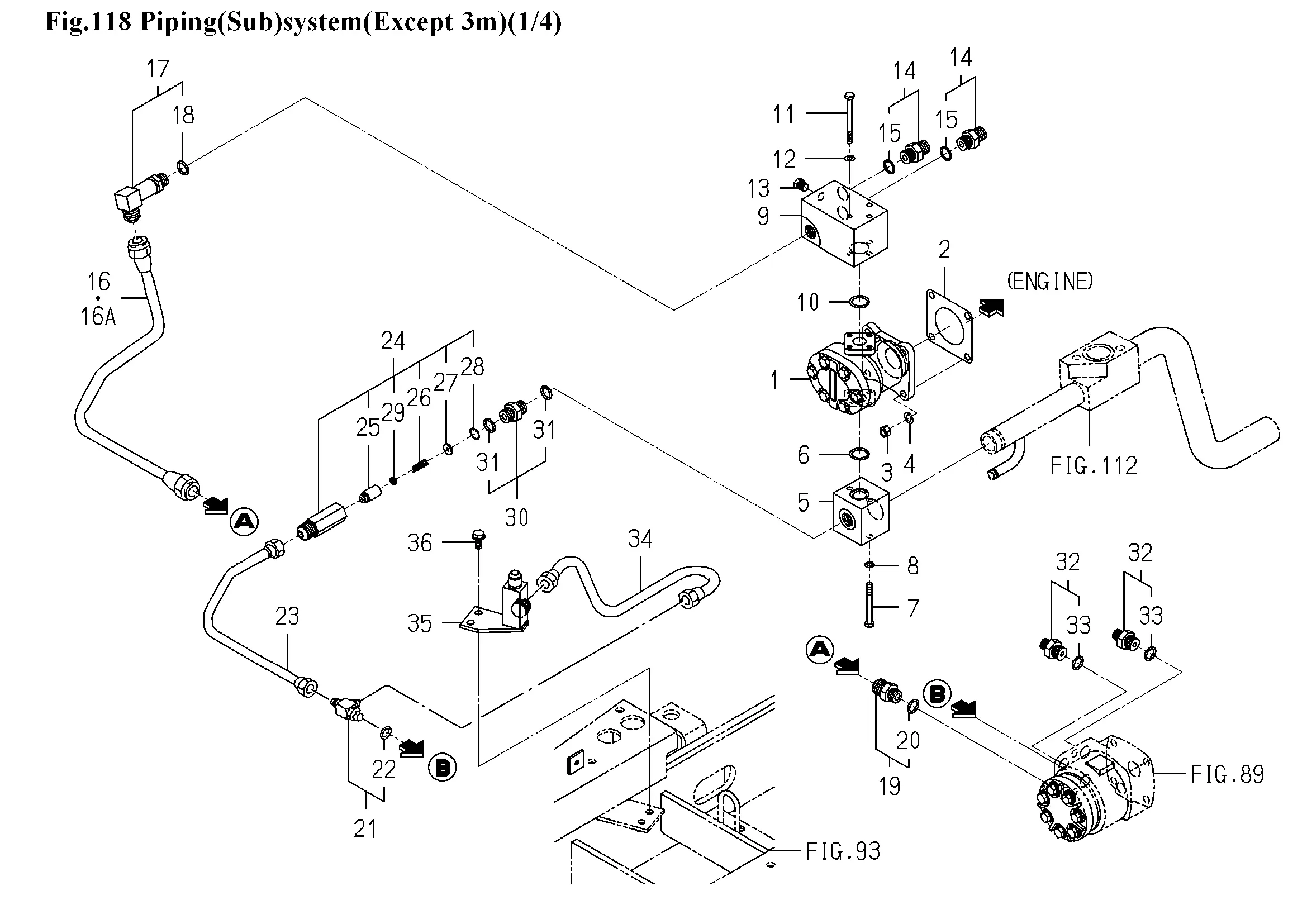

Hydraulikpumpe, Ölkühler (FH3MCYE4/FH3MRE4 Type)
Ersatzteile (114 Teile)
1
Hydraulikpumpe
2
PACKING,OIL PUMP
3
NUT/M8
4
WASHER,SP/M8
5
1748-509-072-10
6
O-RING/1B,P20
7
V200-360-607-00
8
V401-160-006-00
9
Flansch ( Pumpe)
10
O-RING/1B,P20
11
V200-360-607-00
12
V401-160-006-00
13
PLUG/SCREW/SEAL
14
ADAPTER/PF3/8 ASSY
15
O-RING/1B,P14
16
Leitung
16A
1786-509-230-00
17
ADAPTER/L/PF3/8 ASSY
18
O-RING/1B,P14
19
ADAPTER/PF3/8 ASSY
20
O-RING/1B,P14
21
Adapter 3/8 T
22
O-RING/1B,P14
23
Rücklaufleitung
24
Rückschlagventil
25
Einsatz
26
SPRING/HC024
27
Scheibe 4/14/2
28
RING,SNAP/15 C
29
COLLAR/06X10X02
30
1656-509-300-00
31
O-RING/1B,P14
32
ADAPTER/PF3/8 ASSY
33
O-RING/1B,P14
34
1744-509-230-00
35
Adapter
36
FLANGEBOLT/M8X16
37
Hydraulikleitung
38
CONNECTOR
39
Ölkühler
40
Kombimutter-M8
41
CONNECTOR
42
Hydraulikleitung
43
1719-509-005-00
44
PAD/190
45
Hydraulikleitung
46
Adapter
47
HOLDER/12
48
V231-360-801-20
49
Leitung, Hydraulikpumpe
50
ADAPTER/L/G3/4 ASSY
51
O-RING/1B,P24
52
1743-509-002-00
53
FLANGEBOLT/M8X16
54
HOLDER/12
55
V231-360-801-20
56
FILTER/CHARGE ASSY
57
Hydraulikfilter
58
FLANGEBOLT/M8X16
59
1743-509-003-00
60
FLANGEBOLT/M8X16
61
ADAPTER/L/G3/4 ASSY
62
O-RING/1B,P24
63
PIPE/HST COMP
64
ADAPTER/L/PF3/8 ASSY
65
O-RING/1B,P14
66
1747-509-720-00
67
K234-006-000-20
67A
K234-006-000-30
68
K233-013-000-00
68A
K233-013-000-10
69
O-RING/1B,S16
70
O-RING/1B,P20
71
FILTER/LINE/12X18X15
72
PLUG/SCREW/SEAL
73
1747-509-075-00
74
1747-509-074-00
75
1764-178-022-00
76
1747-509-731-00
77
BOLT,S/M8X20
78
K200-180-000-20
78A
Ventil, kpl.
79
ADAPTER/90DEG/PUMP
80
V211-260-806-50
81
Adapter
82
ADAPTER/90DEG/PUMP
83
Schlauch 400
84
BOLT,S/M10X25/7T
85
1748-509-073-00
86
V201-360-813-00
87
WASHER,SP/M8
88
NUT/M8/7T
89
WASHER,SP/M8
90
WASHER,PL/M8
91
Schlauch 800
92
Schlauch 800
93
Schlauch 700
94
ADAPTER/L/G1/4 ASSY
95
O-RING/1B,P11
96
1342-402-006-00
97
1747-509-700-00
98
V203-361-603-00
99
WASHER,SP/M16
100
Hydraulikzylinder
101
ADAPTER/45DEG
102
Schlauch 400
103
Schlauch 700
104
1342-402-006-00
105
Bolzen, mit Halteblech
106
V211-560-801-60
107
Bolzen Typ=H-16-51-0-000
108
V211-560-801-60
109
NIPPLE,GREASE
110
V401-160-006-00
