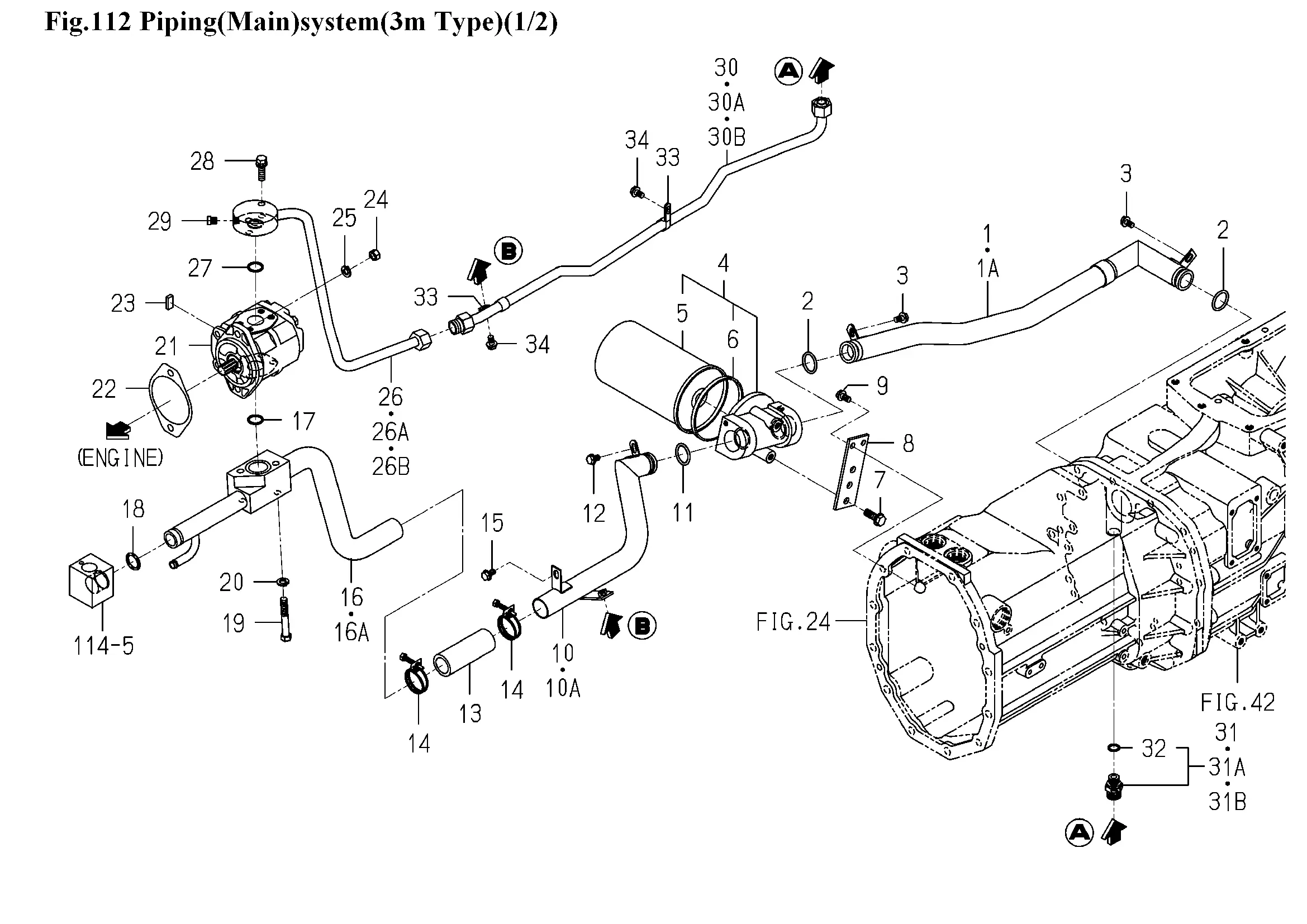

Hydraulikfilter, Leitungen (FH3MCYE4D/FH3MRE4 Type)
Ersatzteile (98 Teile)
1
Leitung
1A
1742-508-210-30
2
O-RING/1A,P28
3
V231-360-801-20
4
Filterträger
5
Hydraulikfilter
6
Dichtung
7
V231-361-002-50
8
1747-508-071-00
9
FLANGEBOLT/M8X16
10
Leitung
10A
1742-508-220-30
11
O-RING/1A,P28
12
V231-360-801-20
13
Verbindungsschlauch
14
CLAMP/WIRE/36-44
15
V231-360-801-20
16
1744-508-220-00
16A
PIPE/SUC/FRONT COMP
17
O-RING/1B,P34
18
RING/O
19
V201-361-007-00
20
WASHER,SP/M10
21
Hydraulikpumpe
22
GASKET/PUMP
23
Dichtung
24
NUT/M10
25
WASHER,SP/M10
26
1744-508-240-00
26A
1744-508-240-10
26B
Hydraulikleitung
27
O-RING/1B,P20
28
BOLT,S/M10X35/7T
29
PLUG/SCREW/SEAL
30
Hydraulikleitung, Druck
30A
1742-508-310-10
30B
1742-508-310-20
31
Adapter, 3/8"
31A
1729-508-290-10
31B
1729-508-290-20
32
O-RING/1B,P14
33
1675-508-003-00
34
V231-360-801-20
35
Ventilblock
35A
K200-114-000-20
35B
K200-114-000-30
36
Ventil
37
Ventil
37A
K200-114-100-10
38
O-RING/1B,P20
39
O-RING/1B,S16
40
FILTER/LINE/12X18X15
41
PLUG/SCREW/SEAL
42
Ventil
43
O-RING/1B,P20
44
O-RING/1B,P10A
45
O-RING/1B,P12
46
O-RING/1B,P14
47
Leitung
47A
1742-508-270-10
47B
1742-508-270-20
48
Adapter, 3/8"
48A
1729-508-290-10
48B
1729-508-290-20
49
O-RING/1B,P14
50
Steuerventil
51
Abdeckung
52
V211-260-806-50
53
V211-260-805-00
54
VALVE,RELIEF ASSY
55
O-RING/1B,P12
56
O-RING/1B,P18
57
Ventil
57A
K231-008-000-20
58
O-RING/1B,P10A
59
RING/BACK UP
60
Manschette 11x21x3
60A
COLLAR/11X21X03
61
Sicherungsring
61A
RING/SNAP
62
SEAL,DUST
63
O-RING/1B,P22
64
O-RING/1B,P16
65
NUT/M10
66
1568-507-001-10
67
COVER/SHAFT COMP
68
V201-260-802-00
69
NUT/M8
70
KNOB
71
SCREW/M6X40
72
V401-160-006-00
73
PIPE/PTO/H COMP
74
ADAPTOR/PF1/4 ASSY
75
O-RING/1B,P11
76
ADAPTER/L/PF1/4 ASSY
77
O-RING/1B,P11
78
HOLDER/10
79
V231-360-801-20
