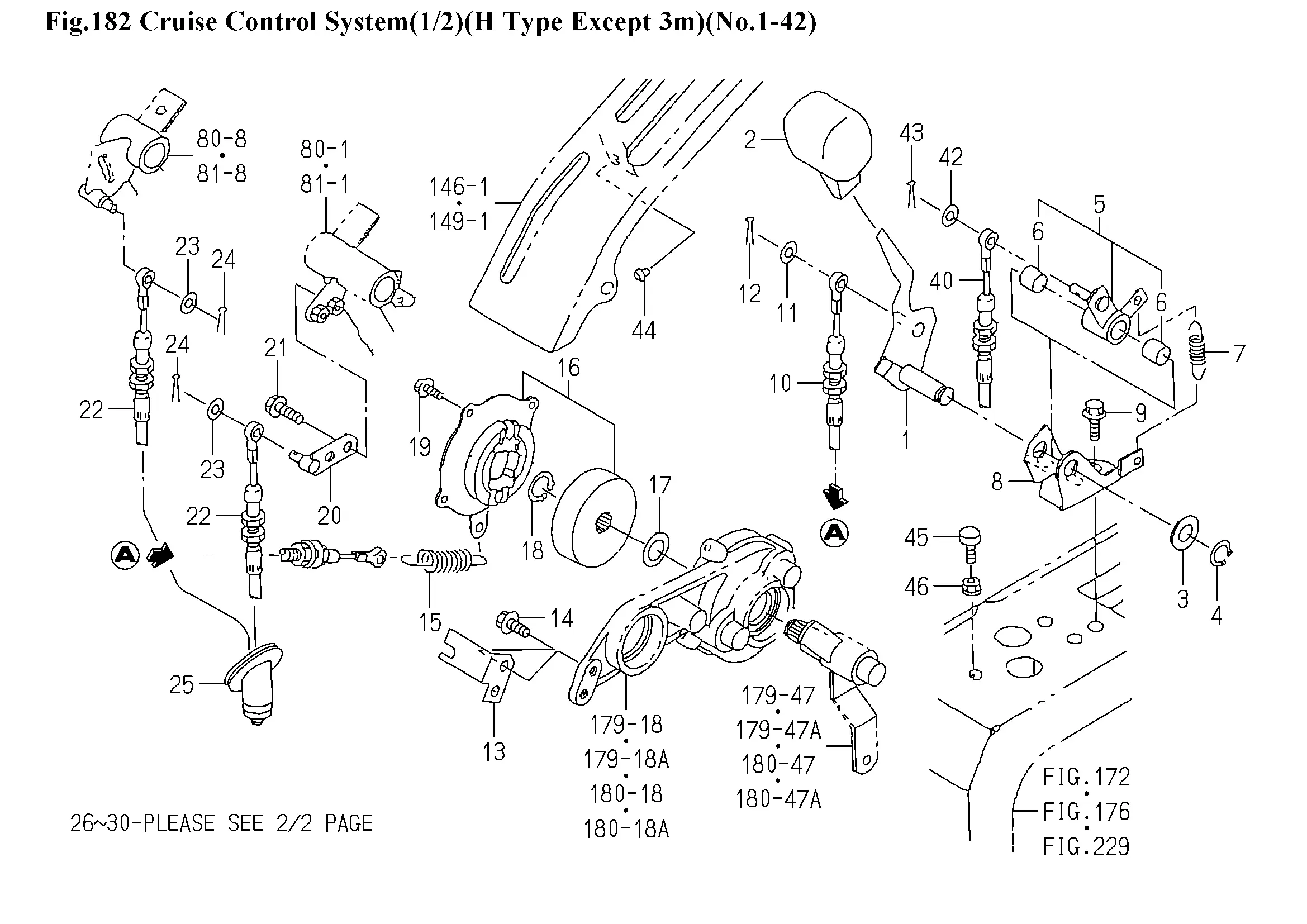

Tempomat (FHMCYE4D Type) bie Seriennr. 42
Ersatzteile (64 Teile)
1
1743-642-500-00
2
GRIP/MAIN
3
WASHER,PL/M14
4
Sicherungsring 15x1
5
Hebel
6
BUSH/15X17X15
7
SPRING/HE60
8
1743-642-530-00
9
FLANGEBOLT/M8X16
10
Bowdenzug
11
WASHER,PL/M8
12
PIN,SPLIT/2X20
13
1743-642-051-00
14
FLANGEBOLT/M8X16
15
SPRING/HE110
16
BRAKE ASSY
17
3824-222-006-00
18
RING,SNAP/18 C
19
FLANGEBOLT/M6X12
20
1743-642-630-10
21
FLANGEBOLT/M8X16
22
Bowdenzug
23
WASHER,PL/M8
24
PIN,SPLIT/2X20
25
Kabelschutz
26
Arm
27
BUSH/15X17X15
28
Arm
29
BUSH/15X17X15
30
WASHER,PL/M14
31
Sicherungsring 15x1
32
Feder
33
1743-642-540-00
34
WASHER,PL/M8
35
PIN,SPLIT/2X20
36
1743-642-052-00
37
PIN
38
WASHER,PL/M8
39
PIN,SPLIT/2X20
40
Bowdenzug
41
PIN
42
WASHER,PL/M8
43
PIN,SPLIT/2X20
44
RUBBER,CUSHION
45
INSULATOR
46
Kombimutter-M8
47
1743-642-055-00
48
FLANGEBOLT/M8X16
49
Bowdenzug, Fußgas HST
50
HOLDER/JE/9-9
51
V231-360-801-20
52
PIN/6X16
53
V411-260-006-00
54
V500-162-001-50
55
Feder
56
1743-642-650-00
57
FLANGEBOLT/M8X16
58
ARM/ACCELERATOR ASSY
59
BUSH/15X17X15
60
WASHER,PL/M14
61
Sicherungsring 15x1
62
Hebel
63
WASHER,PL/M8
64
PIN,SPLIT/2X20
